Material: | |
---|---|
Insulation: | |
Control system: | |
Electric component: | |
Heating method: | |
Availability: | |
Quantity: | |
DGET-2000L
DGET
8438400000

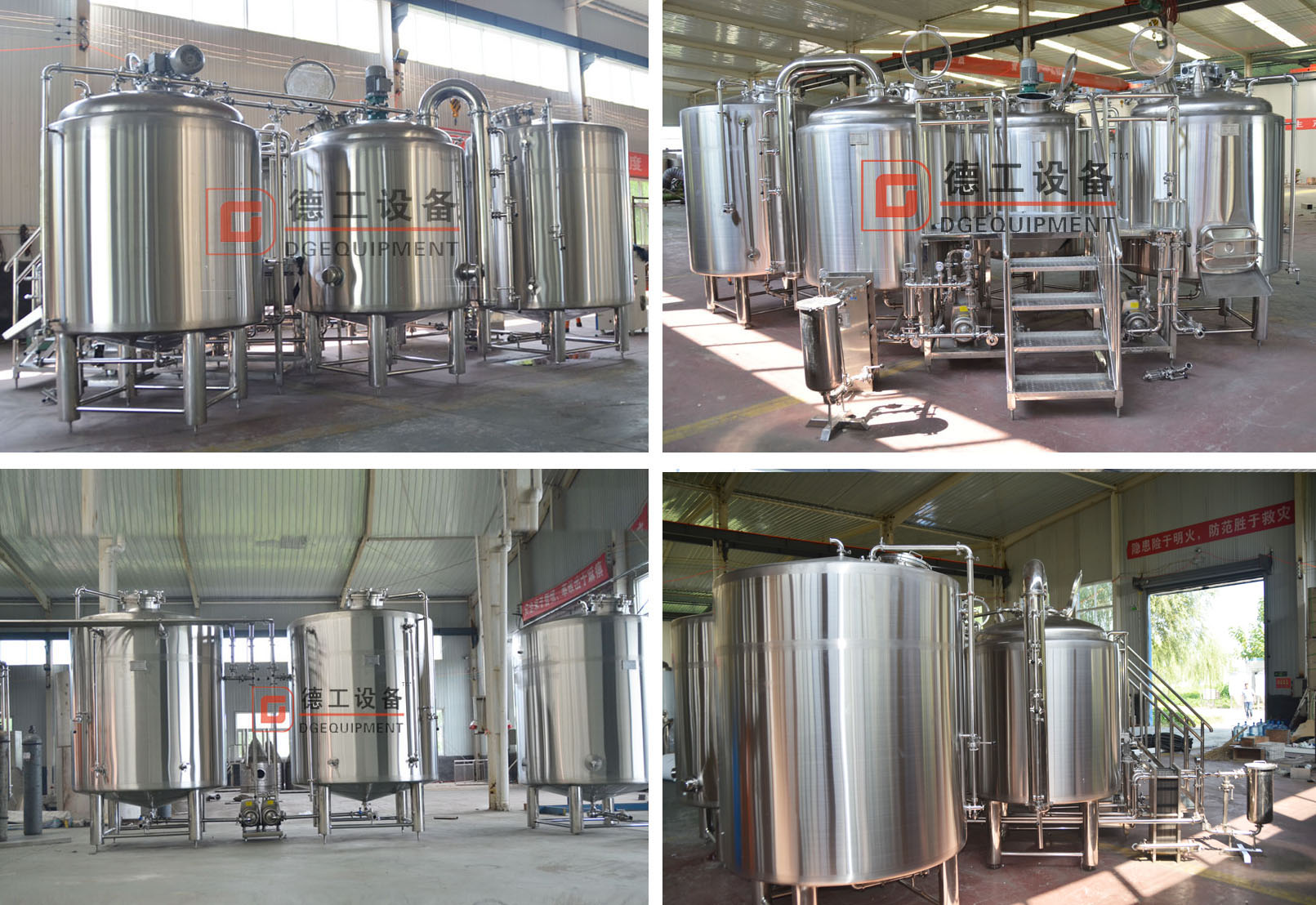

Brewhouse assembly adopted with three vessels: Mash/Kettle, Lauter tun and Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.
Brew kettle assembled with mash agitator, condenser tube and also has whirpooling functions.
Lauter tun assembled with rakers and false bottom for grains separation.
Whirpool tun is multi functioned for wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.

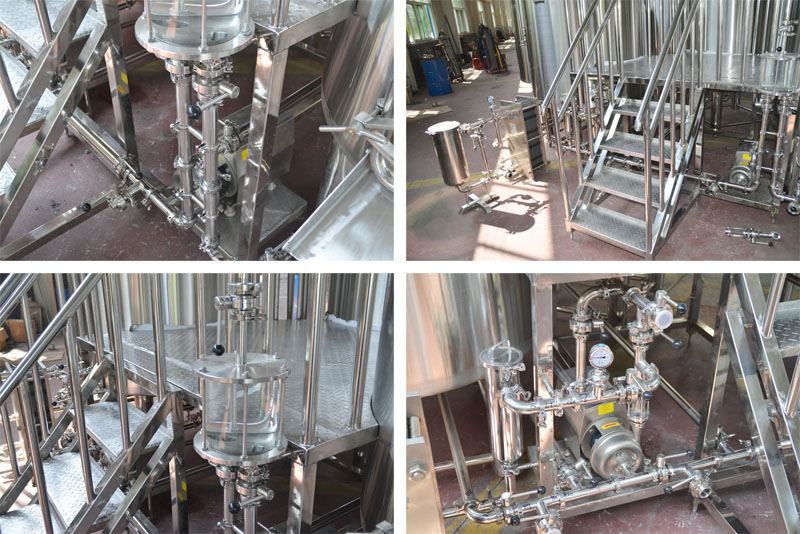

Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.
- All tanks are made of food grade stainless steel 304.
- Adopting advanced world famous brand components in electric parts and operation parts.
- ABB motor for wort pump
- ABB/Siemens motor for raker and blender
- PLC automatic control method
- Inner surface treatment: welds grinded to Ra 0.4µm without dead corner
- Outsourcing surface: weld polishing processing
- All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--TIG welding.
- TC connected CIP arm with 360° coverage spraying ball
- Dished top and conical bottom
Brewhouse assembly adopted with three vessels: Mash/Kettle, Lauter tun and Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.
Brew kettle assembled with mash agitator, condenser tube and also has whirpooling functions.
Lauter tun assembled with rakers and false bottom for grains separation.
Whirpool tun is multi functioned for wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.
- All tanks are made of food grade stainless steel 304.
- Adopting advanced world famous brand components in electric parts and operation parts.
- ABB motor for wort pump
- ABB/Siemens motor for raker and blender
- PLC automatic control method
- Inner surface treatment: welds grinded to Ra 0.4µm without dead corner
- Outsourcing surface: weld polishing processing
- All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--TIG welding.
- TC connected CIP arm with 360° coverage spraying ball
- Dished top and conical bottom
1.Mash Brew Kettle
Function–mashing, mixing and wort boiling.
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
2.Lauter tun
Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.
Modular 4 parts screen sieve separating the wort bath from lautering area.
Sieve flutes width- 1 mm.
Sieve loading - 120-160 kg/ m2
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;
-- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
-Spent grain manway;
-Wort sprinkling provided by sparging semicircle or spray balls.
- Bottom wort outlet.
- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.
- Top dome wort /water inlet.
3.Whirpool HLT Combi vessel
Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
1.Mash Brew Kettle
Function–mashing, mixing and wort boiling.
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
2.Lauter tun
Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.
Modular 4 parts screen sieve separating the wort bath from lautering area.
Sieve flutes width- 1 mm.
Sieve loading - 120-160 kg/ m2
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;
-- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
-Spent grain manway;
-Wort sprinkling provided by sparging semicircle or spray balls.
- Bottom wort outlet.
- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.
- Top dome wort /water inlet.
3.Whirpool HLT Combi vessel
Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
DEGONG Equipment Technology Co.,Ltd Jinan is a professional beer brewing equipment manufacturer,which set designing,production,installation,brewing,after service in one.We have our own factory and all of our products with strict quality control before out of the factory.
Credibility and high quality are the life of our company!

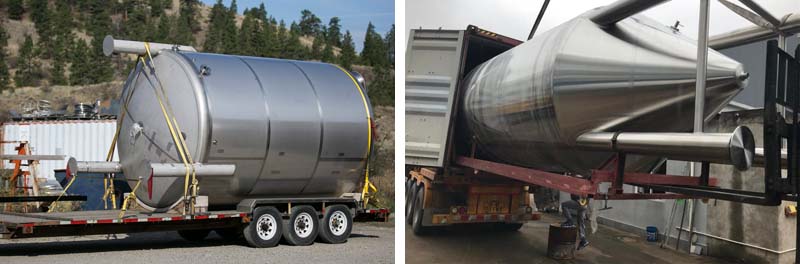

Packing&delivery
Wooden packing & iron frame packing. All of the innder will streatched membrane.
Exhibition in Germany
We attend Germany exhibition in Germany in 2016 and 2017
Service
Guarantees:
1.All the materials touching with beer directly are all top quality food grade stainless steel
2.We use the first class valves and manhole for our equipments
3.All the materials I use is nonmagnetic.
4.The thickness of the material exact fit in with what shown in our quotation sheet
5.Most importantly,Our staff is always available for your needs and questions.
After-sale services:
1.Within the warranty period, any malfunctions caused by the quality issues or material issue, Degong will be responsible to it.
2.After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.
3.For the malfunctions beyond the warranty period, Degong will also be responsible to it, but the seller should take in charge of the expenses.
4.Degong can dispatch technicians to install the equipments for you, but the seller should take charge of the expenses
If you have interest,please get in touch with me freely.
