DEGONG 10BBL
DEGONG
8438400000
Brewhouse
Commercial Mash Tuns
Our commercial mash tuns utilize several design tricks to improve work-flow. In addition to the previously mentioned control advantages, the height of the mash tun was purposely designed to fit above a selection of grain collection containers, for easy transportation of spent grain via forklift or pallet jack.
Consistent Sparge
The use of a four-port drain beneath the mash tun in conjunction with a inline sight glass "mini-grant" helps the brewer maintain a consistent sparge. Visual indicators give the brewer information at a glance, and the sight glass provides this indicator for drain velocity.
Hot Liquor Tanks
As an option we can build Hot Liquor Tanks in a variety of sizes applicable to your brewing needs. Our commercial series HLT's have an integrated pump which controls recirculation for even heating and controls distribution of hot water to the brewhouse. Our commercial HLT's are ready to pair with our turn-key systems.
Large Brew Deck
Our brew deck has features of its own. The railing can be disassembled if needed, and the brew deck itself is large enough to fit pallets. If you have large amounts of adjuncts that you need to add by hand through the manway, there is no need to carry them up and down the staircase. Forklift your pallet onto the brew deck and take advantage of economy-of-motion.

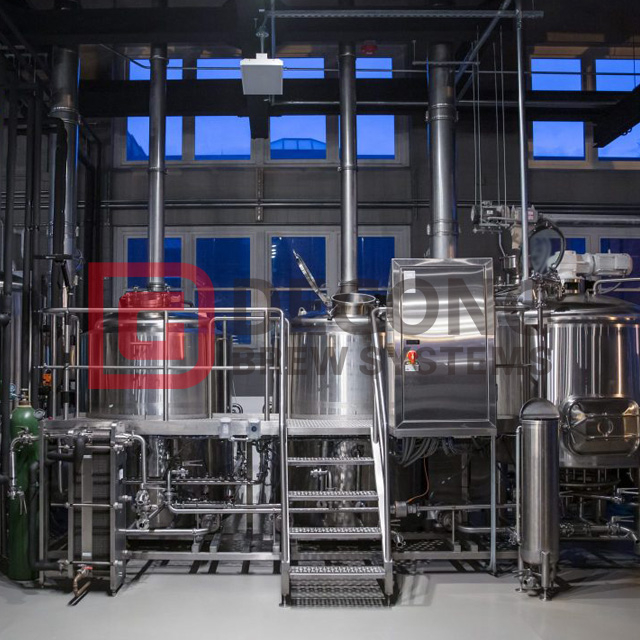

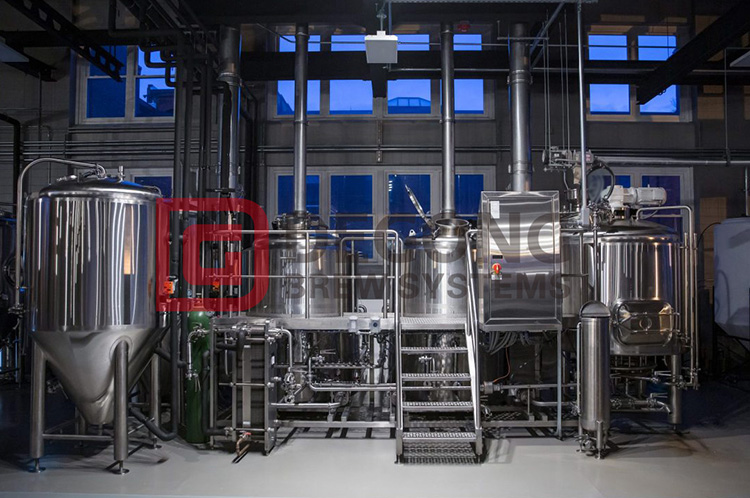

3 vessel brewhouse with large brew deck 10bbl system

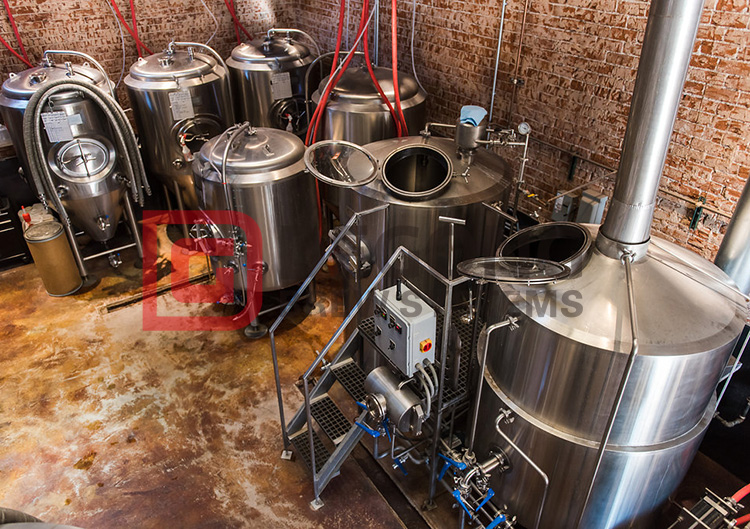

2vessel compact brewhouse system
Fermenters
Fermentation Vessels, also known as fermenters or FVs (and occasionally spelled fermentors), are the tanks, barrels, or other vessels where wort is held as it ferments into beer. Fermentation vessels have always been an essential part of even the humblest home-based brewery.
Our fermentation tanks primarily act as a holding tank while the wort ferments. These tanks are made to your specifications.

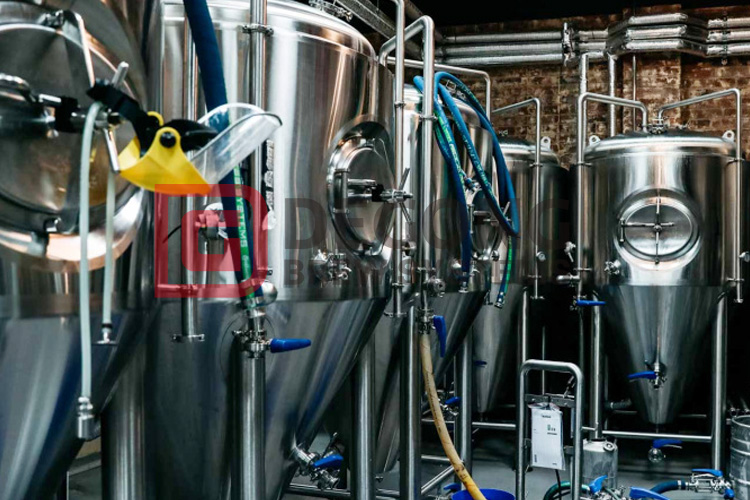

Fermenting vessels with side manway
| Dimensions | to be determined by drawing and customer |
| Capacity | Nominal capacity plus 25% |
| Top Head | dished head |
| Lifting Lugs | (2) lifting lugs – minimum |
| CIP | Removable CIP & fixed spray ball on 3” TC with 1½” TC line down to working height |
| Vent Line | Only on tanks larger than 60HL 1½” or 2” TC vent line from top head to working height |
| Sidewall | thickness & size varies based on tank size |
| Bottom Cone | 60° cone angle, thickness varies based on tank size |
| Cooling Jacket | On sidewall and bottom cone – number of zones determined by tank size Maximum “20” psi working pressure, 1” to 1½” FNPT inlet / outlet |
| Thermowell | (2)½” FNPT 10” thermowells |
| PRV | (1) 1½” to 2” TC Vacuum Pressure relief valve on top head or vent line tee. |
| Legs | 4-5 pipe legs depending on tank size including bracing and adjustable feet |
| Insulation | 100mm insulation on sidewall and bottom cone only |
| Cladding | All welded 14 gauge cladding on sidewall & bottom cone |
| Manway | 14” x 18” side oval in/out swing “no lip” manway (also manufactured by Ripley Stainless Ltd) |
| Sample Valve | 1” TC Sample valve |
| Drain | TC butterfly valve |
| Racking | TC butterfly valve |
| Tank Material | All quality inspected 304 stainless steel alloy |
| Exterior Finish | 2B with all welds ribbon polished |
| Interior Finish | 2B with all welds TIG welded with heat stain removed |
| Tank Pressure | Maximum 1.5bar |
