Availability: | |
---|---|
Quantity: | |
DG-7BBL
DEGONG
Composition |
Mash / Lauter Tank
Boiling / Whirlpool tank
Stainless Steel Work Platform with Handrails
15 Barrel Automated HLT
Fully Welded Sanitary Process Piping System
Complete Electrical Package
Any number of fermenters
DEGONG complete brewery equipment
Mash / Lauter Tank
54” inner diameter all stainless steel 304 construction, dished top and bottom.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
(1) 17”x 21” sealed access door.
(1) 16” sealed top man door access.
(1) Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
4” diameter leg assembly with standard anchor pads.
2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
Boiling / Whirlpool tank
44” inner diameter all stainless steel 304 construction, dished top and bottom.
(1) 16” sealed top man door access.
4” diameter leg assembly with standard anchor pads.
2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
(1) 8” diameter steam flue slip flange with condensation gutter and drain port.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internally mounted/removable trub dam.
Internally mounted ladder assembly for easy cleaning access.
(3) Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
(1) Thermowell installed with RTD for measuring temperature in brew kettle.

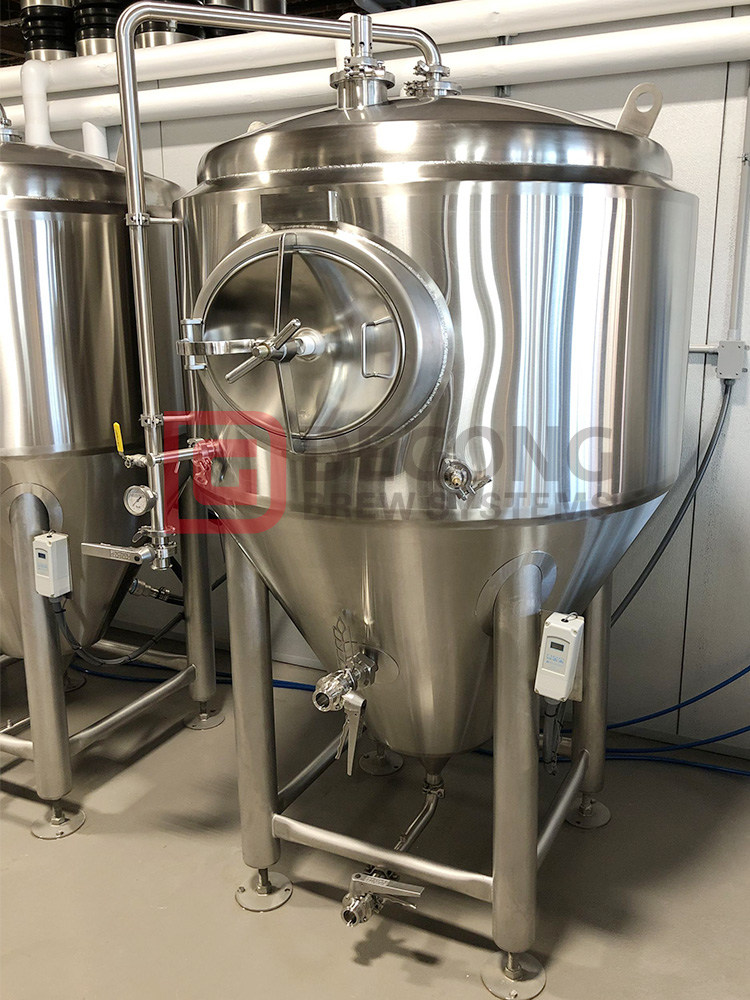

Fermentation tank
100% TIG welded and sanitary polished
Interior(bright polish) and exterior (2B polish), sanitary surface
Side manhole which is easy to maintain and clean
Dual cooling zone with glycol inlet and outlet
Dry hopping port at the top
DEGONG 7BBL fermentation tank
Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
