500L Microbrewery Brewing Beer Brewery Plant Used Beer Mashing System with CE Certificate

500L microbrewery is popular for small brewery and middle brewery.Mashing or steeping, which is the first step of brewing process, occurs in this vessel.By soaking the milled grains in heated water, sugar extraction (along with color and flavor extraction) as the main purpose of this activity is processed when enzymes (from the malt) break down the starch into maltose to produce wort. The key mechanical device of this process is agitator. We build mash tun with both mashing styles of infusion and decoction.
Material:
Insulation:
Control system:
Electric component:
Heating method:
Availability:
Quantity:
  • DGET-500L

  • DGET

  • 8438400000


                                                                                          what is a Beer mashing system?



Beer mashing system are comprised of several key pieces of brewing equipment. The whole brewhouse has four function,which is mash,lauter,boiling,whirlpool. In the skilled hand of the brewmaster, convert grain that has been milled through a specialtygrain mill, into sweet liquid called “wort”.Wort is subsequently fermented and finished in specialized beer tanks calledfermenters andbrite tanks.

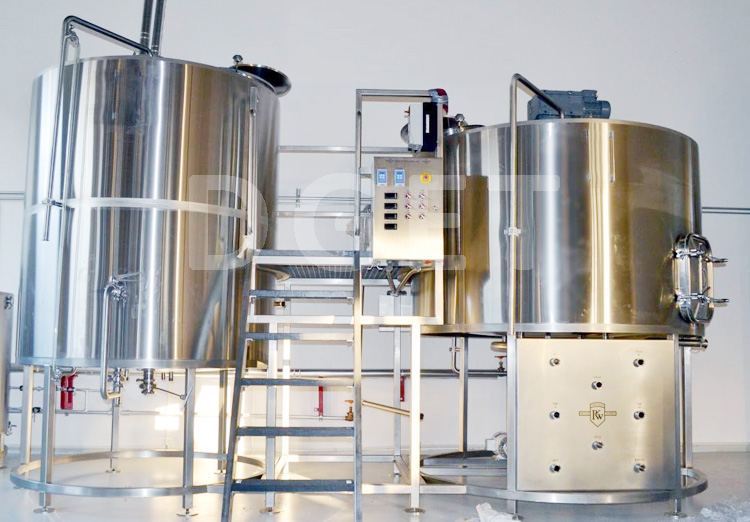

2

500L beer mashing system


Construction of brewhouse


1.MASH TUN

Effective volume: vessel from 3BBL-80 BBL systems

Material: SS304

Finish: brushed external, polished internal less than 0.6um

Dished top, flat bottom, 4 legs with leveling feet

Bottom agitator, 2HP motor, 36RPM, VFD controls

Insulation 80mm rock wool

Cladding steel S/S304 2mm

Glass top manhole, spot light

Accessories include CIP, thermowell, condensing water outlet, sanitary valves & fittings

Heating Sources Available: Steam, Direct Fire, Electric (size matters)



2.BUFFER TANK

Connected to the outlet of lauter tun

Material S/S304

Effective volume 50L

Sight glass

Level with a false bottom



3.LAUTER TUN

Effective volume: vessel from 3BBL-80 BBL systems

Material: SS304

Finish: brushed external, polished internal less than 0.6um,

Dished top, flat slope bottom, 4 legs with levelling feet

Working/designing temperature 100/150 degree

Insulation 80mm rock wool

Cladding steel S/S304 2mm,

Raker with motor, gear box, VFD controlling

Grain spent blades

Grain Spent at side, 2-4 rpm

Removable false bottom, at same level with grain spent door

Sparging arm

Wort collecting pipes

Glass top manhole, spot light,

Accessories include CIP, thermowell, sanitary valves & fittings

Heating Sources Available: Steam, Direct Fire, Electric (size matters)



4.SIEMEN TOUCH SCREEN CONTROLS

Single step infusion brewing programs

Complex step mashing programming

Remote programming

German perfection



5.KETTLE

Custom design

Effective volume: vessel from 3BBL-80 BBL systems

Finish: brushed external, polished internal less than 0.6um

Dished top, flat slope bottom, 4 legs with leveling feet

Working/designing temperature 100/150 degree

Insulation 80mm rock wool

Cladding steel 2mm S/S304

Wort collecting pipe

Glass top manhole

Accessories include CIP, thermowell, pressure relief valve, steam safety valve, condensing water outlet, sanitary valves & fittings

Heating Sources Available: Steam, Direct Fire, Electric (size matters)



6.HOP BACK

Material SS304

Mounted at the outlet of whirlpool

With pressure gage and valve & TC



7.MANIFOLD & C.I.P.

One of the most critical components to the craft. Bacteria management. Safe liquid looped emersion saves time and money. Custom designs to exceed the clients demands.



8.HEAT EXCHANGER

Material:SS304

With EPDM gasket

2 station, 6 leads

15 m2 heating exchanging area

Inlet & outlet 2″ threaded



9.AERATION SYSTEM

Capacity: 1m3/h

Venturi tube

Check valve, pressure relief valve and pressure gauge

Titanium stick

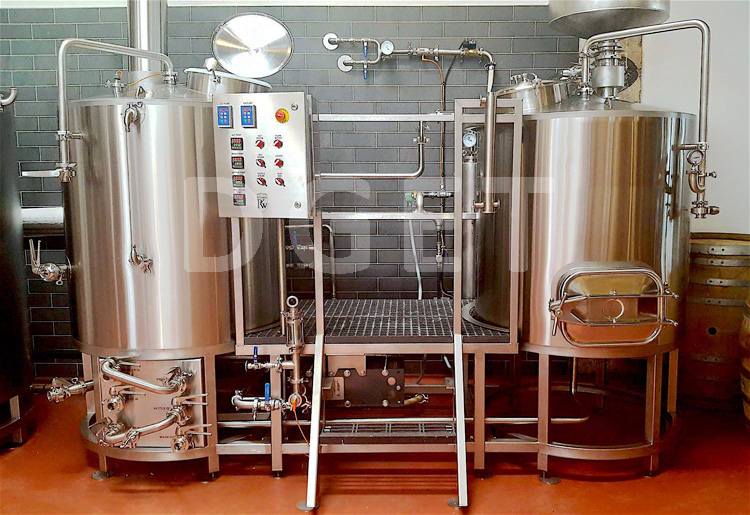

15



More detailed pictures



QQ截图20190814172251

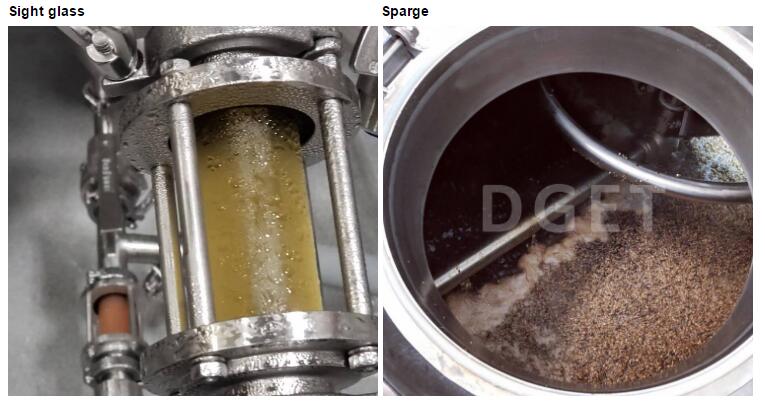

QQ截图20190814172309

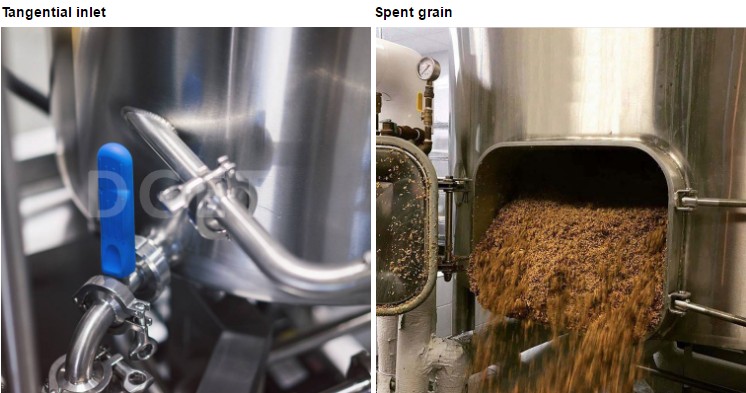

eweewe


More information you should want to know


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.


2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.


3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.


4.How should we do if we don’t know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


If you have interested in our equipment,please get in touch with me
