DGET-3BBL
DGET
8438400000

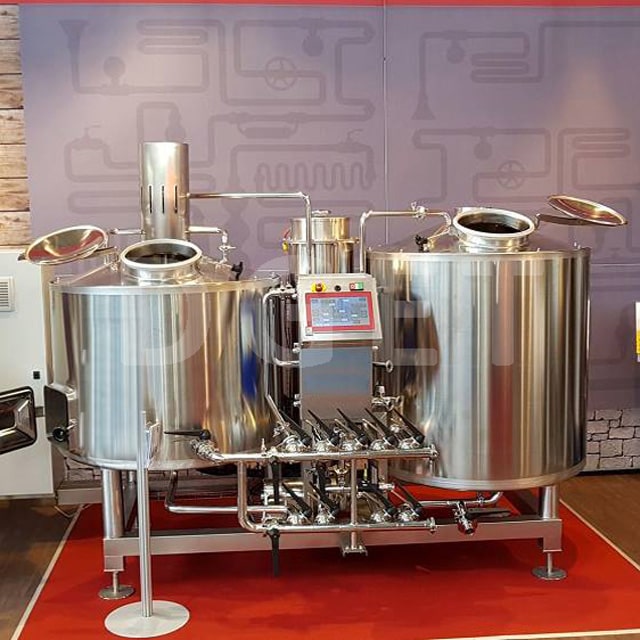

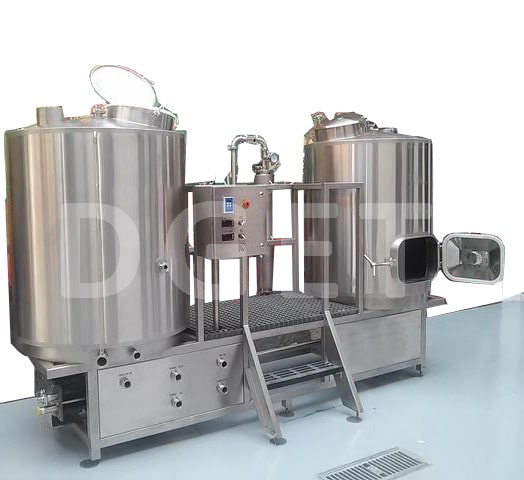

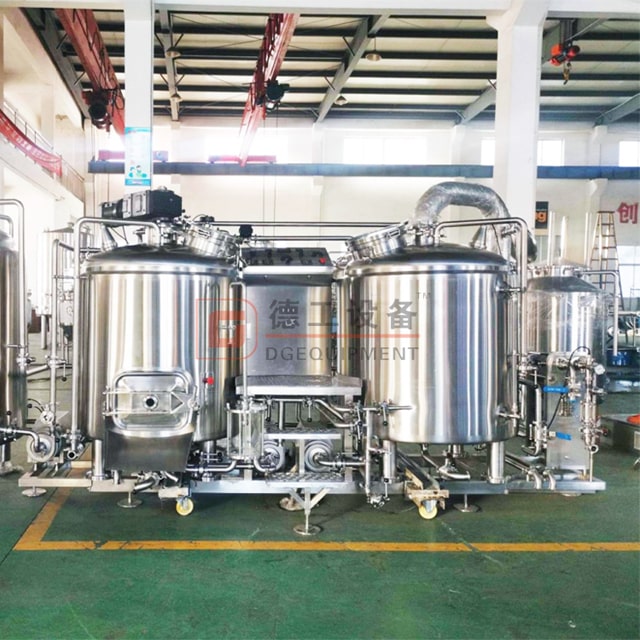

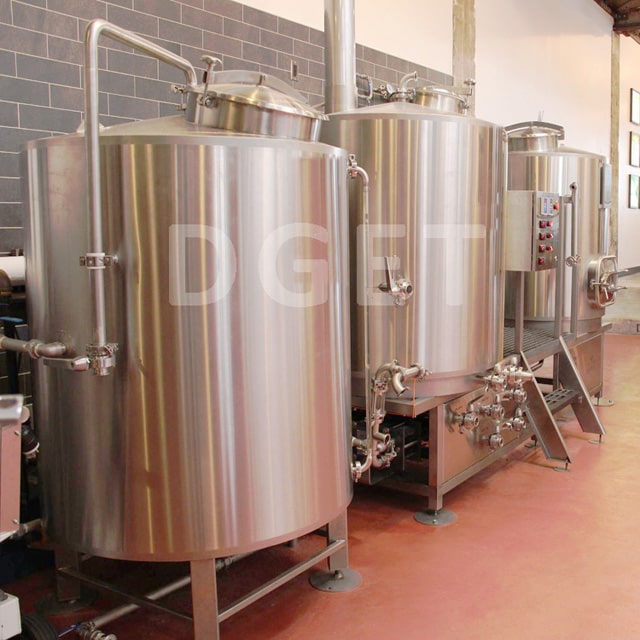

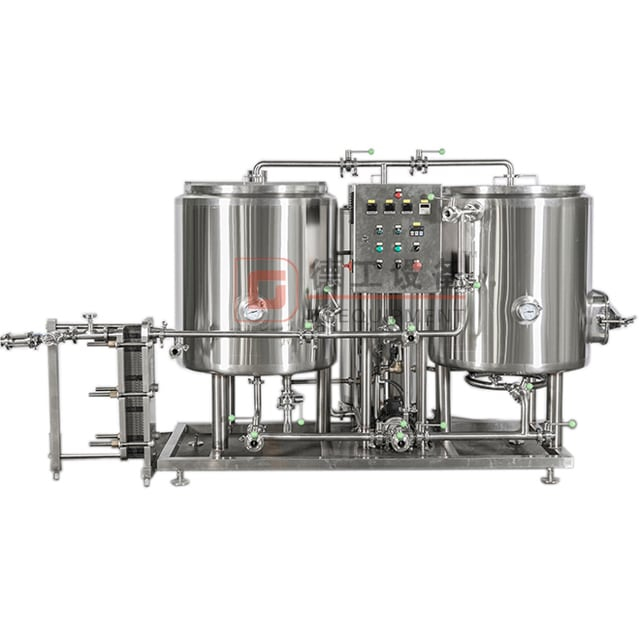

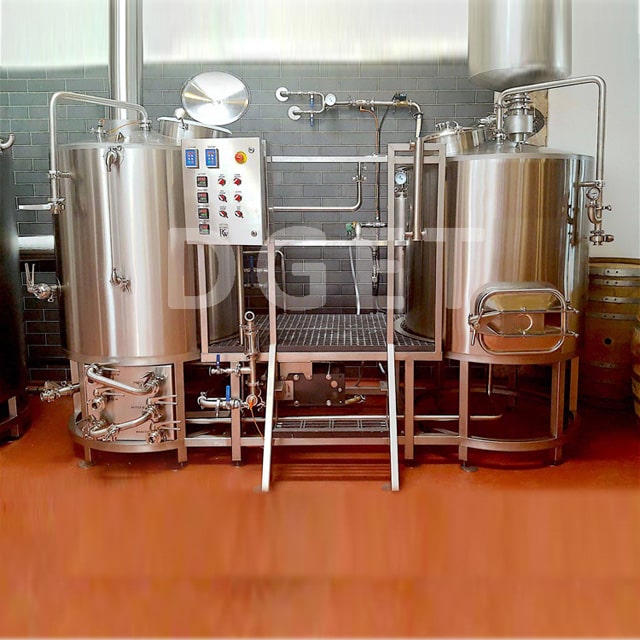

This 3bbl brewing system is easily expandable as demand grows, and is an ideal brewing system for micro brewery owner, restaurateur and artisan. Our 3bbl brewing system accord with Germany TUV certification that meet the internationally recognized Standards for Safety, which keeps your brewers safe and avoids major hassles at inspection time.
| Construction of beer mashing system |
1.MASH/LAUTER TUN
Effective volume: vessel from 3BBL-80 BBL systems
Material: SS304
Finish: brushed external, polished internal less than 0.6um
Dished top, flat bottom, 4 legs with leveling feet
Raker with motor, gear box, VFD controlling
Removable false bottom, at same level with grain spent door
Grain spent blades
Grain Spent at side, 2-4 rpm
Insulation 80mm rock wool
Glass top manhole, spot light
Sparging arm
Wort collecting pipes
Accessories include CIP, thermowell, condensing water outlet, sanitary valves & fittings
Heating Sources Available: Steam, Direct Fire, Electric (size matters)
2.BUFFER TANK
Connected to the outlet of lauter tun
Material S/S304
Effective volume 50L
Sight glass
Level with a false bottom
3.SIEMEN TOUCH SCREEN CONTROLS
Single step infusion brewing programs
Complex step mashing programming
Remote programming
German perfection
4.KETTLE/WHIRLPOOL TUN
Custom design
Effective volume: vessel from 3BBL-80 BBL systems
Finish: brushed external, polished internal less than 0.6um
Dished top, flat slope bottom, 4 legs with leveling feet
Working/designing temperature 100/150 degree
Insulation 80mm rock wool
Cladding steel 2mm S/S304
Wort collecting pipe
Glass top manhole
Tangible port for whirlpool
Accessories include CIP, thermowell, pressure relief valve, steam safety valve, condensing water outlet, sanitary valves & fittings
Heating Sources Available: Steam, Direct Fire, Electric (size matters)
5.HOP BACK
Material SS304
Mounted at the outlet of whirlpool
With pressure gage and valve & TC
6.MANIFOLD & C.I.P.
One of the most critical components to the craft. Bacteria management. Safe liquid looped emersion saves time and money. Custom designs to exceed the client’s demands.
7.HEAT EXCHANGER
Material:SS304
With EPDM gasket
2 station, 6 leads
15 m2 heating exchanging area
Inlet & outlet 2″ threaded
8.AERATION SYSTEM
Capacity: 1m3/h
Venturi tube
Check valve, pressure relief valve and pressure gauge
Titanium stick
| Delivery |
| Company information |
| Service |
