DGET-2000L
DGET
8438400000

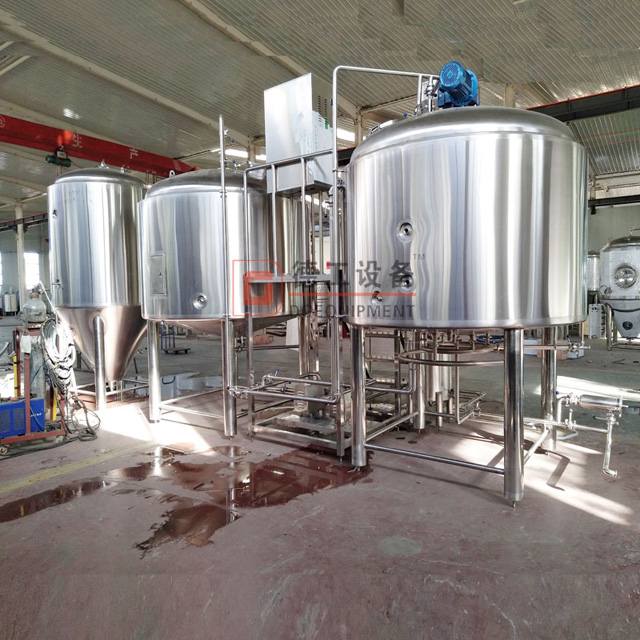

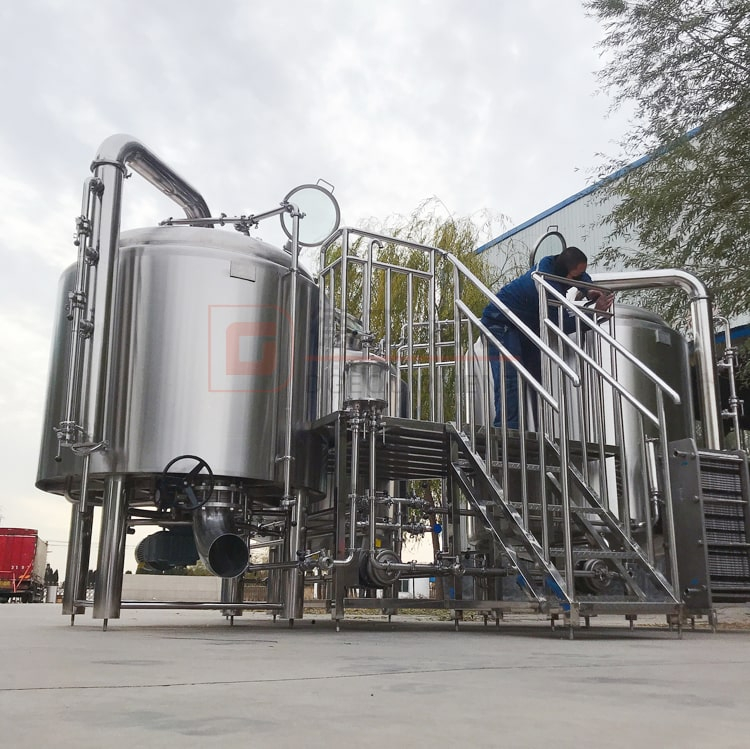

Beer Brewhouse assembly adopted with 2-vessels: Mash/ Lauter tun and Kettle/Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.

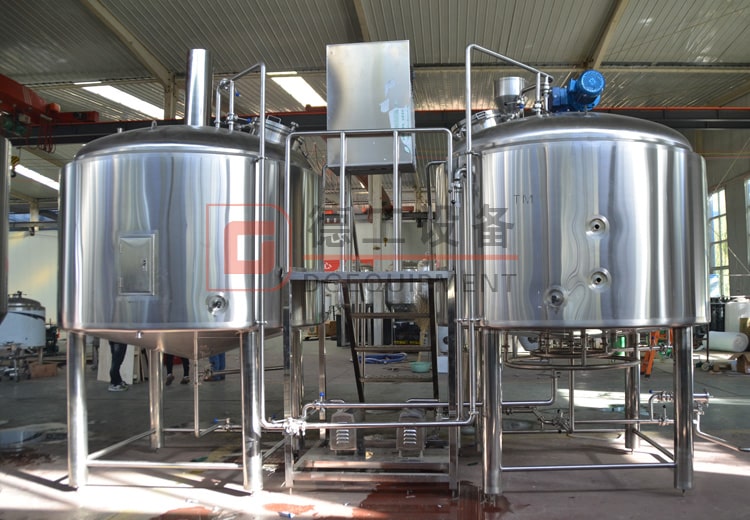

2-vessels beer brewhouse features
Mash/Lauter tun assembled with rakers and false bottom for grains separation.
Brew kettle assembled with mash agitator, condenser tube and also has whirpooling functions.
Hot water tank as a optional
Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.
1000L brewery equipment: Mash/lauter tank+Kettle/whirlpool tank
- All tanks are made of food grade stainless steel 304.
- Adopting advanced world famous brand components in electric parts and operation parts.
- ABB motor for wort pump
- ABB/Siemens motor for raker and blender
- PLC automatic control method
- Inner surface treatment: welds grinded to Ra 0.4µm without dead corner
- Outsourcing surface: weld polishing processing
- All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--TIG welding.
- TC connected CIP arm with 360° coverage spraying ball
- Dished top and conical bottom
Component of the 2-vessels 1000L beer brewhouse
1.Mash/Lauter tank
Function–mashing,lautering
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

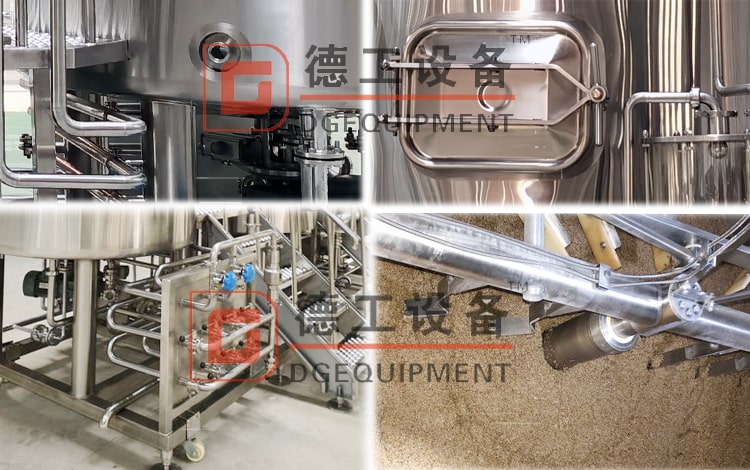

Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.

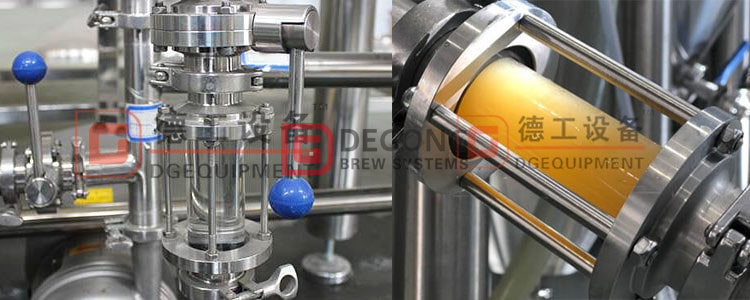

-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Quick installed Spray CIP balls.
-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;
-Spent grain manway;
-Wort sprinkling provided by sparging semicircle or spray balls.
2. Kettle/whirlpool tank
Volume + ~30% headspace
Gross capacity:1400L,
Useful capacity:1000L
Outline size: φ1400*2500 mm.
Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
-- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
