1000L Steam heated automatic 2 vessels conical beer brewhouse mashing tanks for sale

Brewhouses with limited space can use commercial tankless water heaters instead of an HLT commercial brewing tank to provide hot water as needed. Our stainless steel vessel brewing systems are insulated using chloride-free, 100mm Rockwell insulation, keeping temperatures at exactly the level you need them to be.

Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000


Whether you want to save space, money, and time by only using a 2 vessel mash and boil kettle or you need a dedicated HLT tank alongside them, we have the right brewing system for you.


Our brewing systems also allow you to produce batches at record speeds, from the beginning to the cleanup process. Maximize your brewhouse’s efficiency with our systems!


Brewhouses with limited space can use commercial tankless water heaters instead of an HLT commercial brewing tank to provide hot water as needed. Our stainless steel vessel brewing systems are insulated using chloride-free, 100mm Rockwell insulation, keeping temperatures at exactly the level you need them to be.

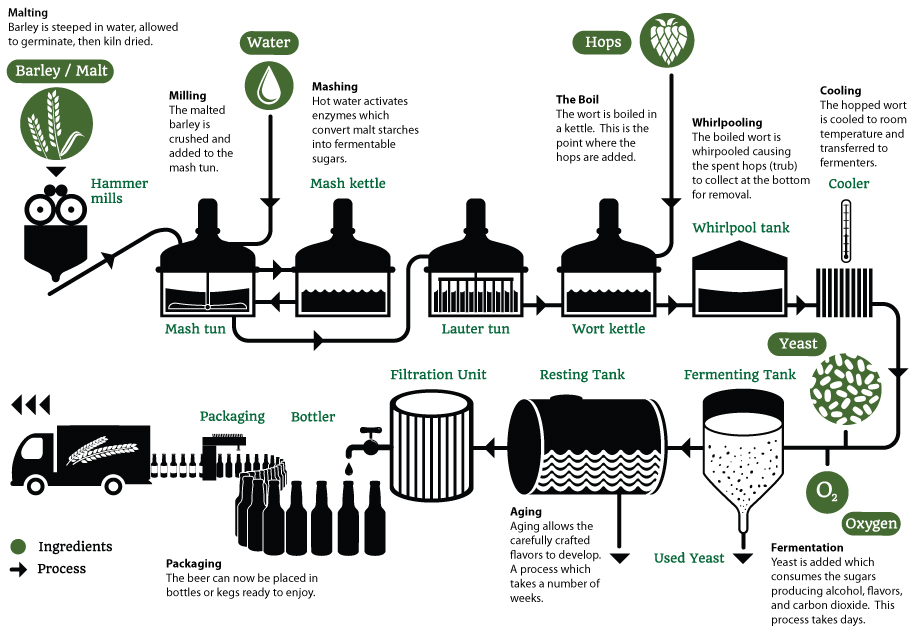

Brewing-process



2-Vessel Example (Steam)


1.1 Unit – Insulated Mash/Lauter Tun+boiling/whirlpool tank

  • Vessel interior and exterior are mirror finish. Vessel bottom and cylindrical sides are insulated with 100mm Rockwool insulation, 20” glass top manway.

  • 304ss Raking Assembly with 6 cutting knives and variable frequency drive speed controller. Reversible manual lift spent grain discharge feature to allow spent grain to be automatically discharged from side manway.

  • Gear Drive 2 HP Motor for raking and agitator assembly, High Torque Reversible motor allows for grain to be discharged from side manway of vessel.

  • 304ss Wedge Wire Screens, 0.7mm constructed in 3 sections and firmly affixed to vessel floor, removable sections allow screen sections to be removed.

  • Grist Hydrator Assembly is top-mounted and post hot/cold liquor mixing station for consistent grist hydration of the Mash.

  • Under Screen CIP System with sprayer head assemblies allow bottom of Lauter screens and vessel dish bottom to be cleaned in place.

  • RTD Mash Temperature sensor for monitoring internal mash temperature inserts into welded Thermowell on vessel sidewall. Removable from the vessel’s exterior in event of probe failure, even while vessel is full.

  • Sparge Assembly and Hot/Cold mixing spool with manual globe valves to allow both hot and cold liquor to be blended en route to Mash Tun or Sparge ring assembly.

  • Integral Tangential Inlet for optimal whirlpool effect and trub/hop settling.

  • CIP Tank Spray ball has spinner spray heads and under screen CIP

  • Lauter Tun Manometer level gauges to monitor mash bed pressure differential.

  • Interior vessel Illumination, natural spectrum light mounted inside vessel dome.

  • Adjustable Footpads ball on plates, allow for leveling of vessel on sloped floors.

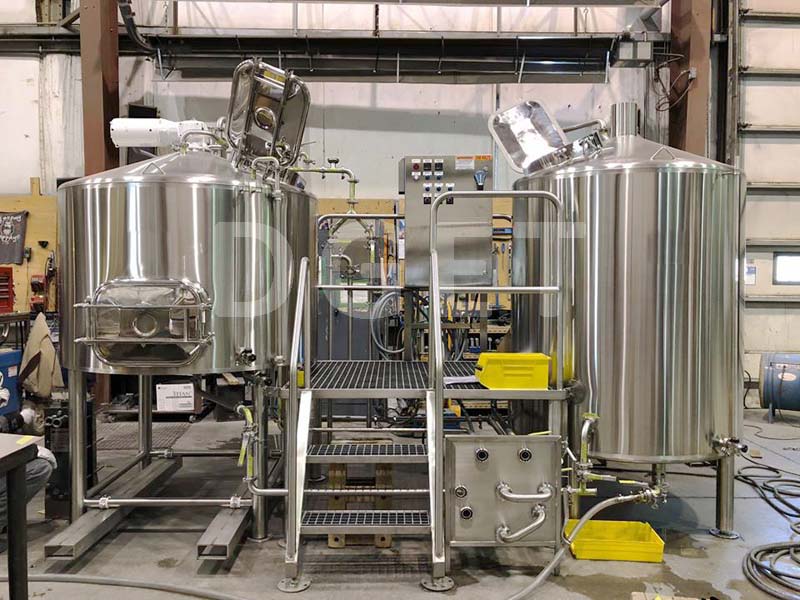

 2

1000L steam heated automatic 2 vessels conical beer brewhouse mashing tanks for sale

IMG_8654

Glass manhole

IMG_8604

Raker automatic spent grain removable system

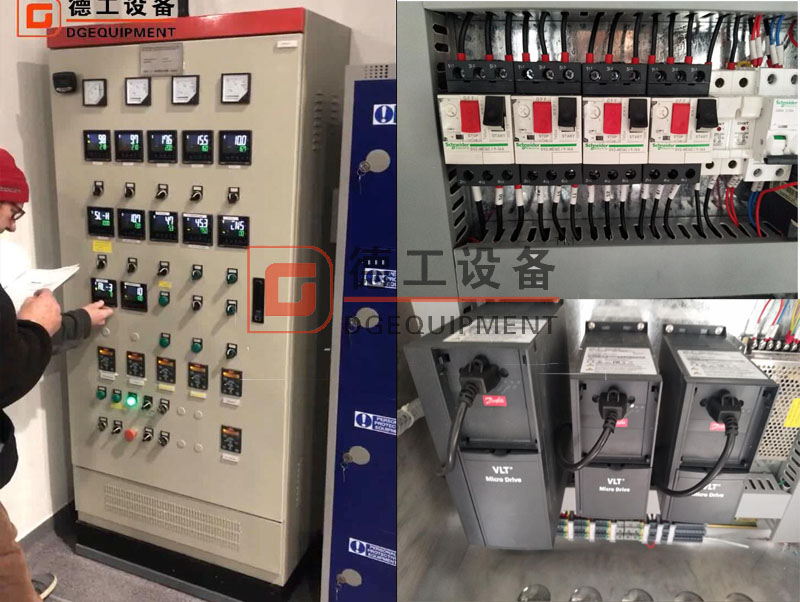

1.2  1 Unit – Integrated Control Panel

  • Industrial Touchscreen Control Panel, 304ss, watertight case. Mounted on brewer’s platform with 9” touchscreen Siemens controlled brewers CPU Integrated module.

  • Integral Controls allows for intuitive Brewhouse operation and Cellar Control functions from one central location on the Brewhouse platform. Includes readouts and controls for HLT, CLT, Brew Kettle, Lauter Tun,

  • Pump Controls and Variable Speed frequency drive for Mash Pump and on/off controls for Hot Liquor Pump.

  • Interior vessel Illumination natural spectrum light mounted inside vessel dome.

  • Adjustable Footpads ball on plates, allow for leveling of vessel on sloped floors.

control1 (2)



1.3   1 Unit – Plate Heat exchanger

304ss 2-Stage Plate Heat Exchanger for chilling 200°f Wort to 50°f with 10bbl/30minutes knockout capability. Stainless steel plates and frame assembly.

Wort Thermometer upon exit of PHE to accurately stabilize wort temperature.

Aeration Stone Assembly, including 3A certified Tee’s, non-threaded sanitary sintered aeration stone and sanitary gas check valve, with sight glass.



1.4     1 unit – Working Platform

304ss Staging Platform between Brew House Vessels, with stainless non-slip grating, stairs, and handrails. Can be configured to your location and design layout.

304ss Frame Assembly, with mounted hard piping firmly affixed.

Adjustable Levelers to provide a level platform regardless of floor slope.


QQ截图20191203140656


unnamed+(30)



Exhibition


展


Certification

renzheng



FAQ


1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.



2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.



3.How to see if your company is trust?

We have sold many equipment to EURO.We can give you our customers contact information,you can listen to their advice or visit their brewery.



4.How should we do if we dont know how to brew beer and install equipment?

We will dispatch engineer to install equipment and teach you how to brew beer freely.


If you have interest,please get in touch with me freely.
