5BBL Industrial/commercial Used Beer Equipment 3 Vessel Brewhouse Beer Mashing System for Sale

Brewhouse assembly adopted with three vessels: Mash/Kettle, Lauter tun and Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.

Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-5BBL
  • DGET
  • 8438400000


Brewhouse assembly adopted with three vessels: Mash/Kettle, Lauter tun and Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.

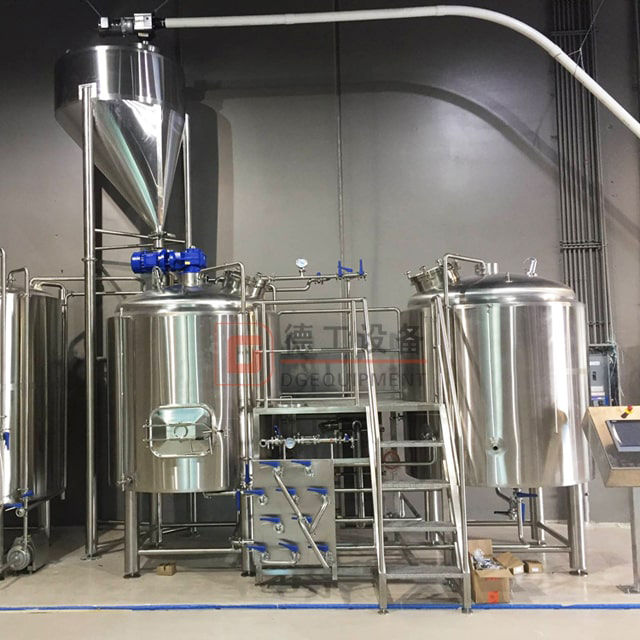

5bbl 3 vessels brewhouse



Component


Brew kettle assembled with mash agitator, condenser tube and also has whirpooling functions.

Lauter tun assembled with rakers and false bottom for grains separation.

Whirpool tun is multi functioned for wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.

Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.


stainless steel beer mashing system



Features


- All tanks are made of food grade stainless steel 304.

- Adopting advanced world famous brand components in electric parts and operation parts.

- ABB motor for wort pump

- ABB/Siemens motor for raker and blender

- PLC automatic control method

- Inner surface treatment: welds grinded to Ra 0.4µm without dead corner

- Outsourcing surface: weld polishing processing

- All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way--TIG welding.

- TC connected CIP arm with 360° coverage spraying ball

- Dished top and conical bottom


9-min


未标题-750 (2)



Detailed introduction



1.Mash Brew Kettle

Function–mashing, mixing and wort boiling.

Volume + ~30% headspace

Gross capacity:760L,

Useful capacity:5BBL

Inner:SS304.TH=3.0mm      Outer:SS304.TH=2.0mm

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

- Bottom mash inlet /outlet.

- Middle side wort/water inlet/outlet.

- Top dome wort /water inlet.

- Middle cone wort outlet.

- Quick installed Spray CIP balls.

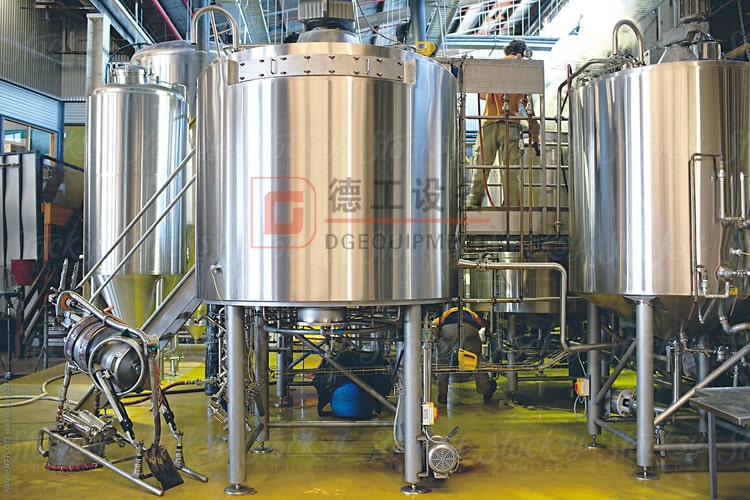

beer brewery equipment




2.Lauter tun

Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.

Modular 4 parts screen sieve separating the wort bath from lautering area.

Sieve flutes width- 1 mm.

Sieve loading - 120-160 kg/ m2

Volume + ~30% headspace

Gross capacity:760L,

Useful capacity:5BBL

Inner:SS304.TH=3.0mm      Outer:SS304.TH=2.0mm

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;

-- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

-Spent grain manway;

-Wort sprinkling provided by sparging semicircle or spray balls.

- Bottom wort outlet.

- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.

- Top dome wort /water inlet.


micro brewery



未标题-1-min (2)



3.Whirpool HLT Combi vessel

Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.

Volume + ~30% headspace

Gross capacity:760L,

Useful capacity:5BBL

Inner:SS304.TH=3.0mm      Outer:SS304.TH=2.0mm

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.

Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

- Bottom mash inlet /outlet.

- Middle side wort/water inlet/outlet.

- Top dome wort /water inlet.

- Middle cone wort outlet.

- Quick installed Spray CIP balls.


beer brewhouse


sight-glass-min
