Material: | |
---|---|
Heating method: | |
Insulation: | |
Configuration: | |
Electric component: | |
Availability: | |
Quantity: | |
Function–mashing, mixing and wort boiling.
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
Function–mashing, mixing and wort boiling.
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.
Modular 4 parts screen sieve separating the wort bath from lautering area.
Sieve flutes width- 1 mm.
Sieve loading - 120-160 kg/ m2
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;
-- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

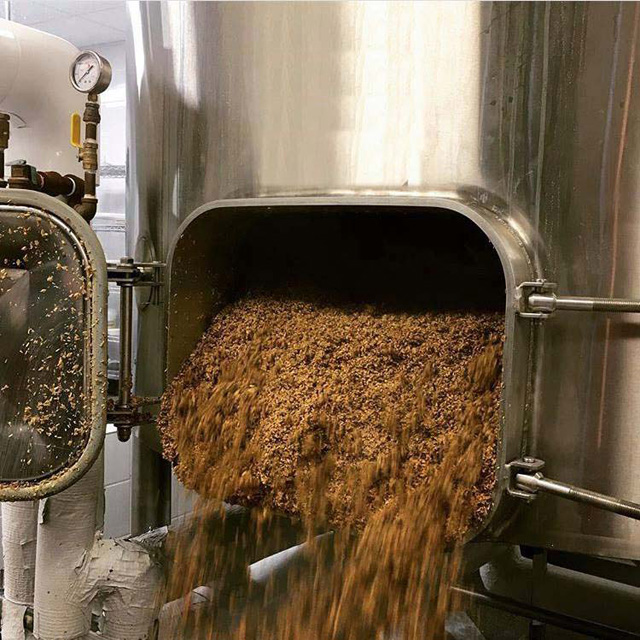

-Spent grain manway;
-Wort sprinkling provided by sparging semicircle or spray balls.
- Bottom wort outlet.
- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.
- Top dome wort /water inlet.
Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.
Modular 4 parts screen sieve separating the wort bath from lautering area.
Sieve flutes width- 1 mm.
Sieve loading - 120-160 kg/ m2
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-VFD agitator motor SIEMENS.
-Top domed lighted sight glass.
-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;
-- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
-Spent grain manway;
-Wort sprinkling provided by sparging semicircle or spray balls.
- Bottom wort outlet.
- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.
- Top dome wort /water inlet.
Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.
Volume + ~30% headspace
Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;
Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um
Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.
Assembly:
-Top domed thermostatic hermetic closed glass manway door.
-Top domed lighted sight glass.
- PT100 temperautre sensor probe
- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.
- Bottom mash inlet /outlet.
- Middle side wort/water inlet/outlet.
- Top dome wort /water inlet.
- Middle cone wort outlet.
- Quick installed Spray CIP balls.
Advantage:
1.Different specifications meet different need of customers,for example,several types of heating devices for your choice: dimple jacket / inner pipe heating machine(optional)
2.Advanced technology can saving energy and running cost,for example,our control panel is PLC.
3.High performance and stability with low maintenance cost
4.Custom built, meet your needs exactly,that is to say,you just need to tell us your brewery's real condition,then our team will design suitable tanks suitable to your brewery.
Our Service:
1.As owning an experienced and creative engineering team, we could offer you professional solutions for your plant and equipment.
2.If you already have solutions, we would fabricate the equipment exactly as per your request.
3.We could offer you training of brewing craft beer and operating equipment if needed.
4.Equipment can be customized according to your request.
5.36 months warranty.
6. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Advantage:
1.Different specifications meet different need of customers,for example,several types of heating devices for your choice: dimple jacket / inner pipe heating machine(optional)
2.Advanced technology can saving energy and running cost,for example,our control panel is PLC.
3.High performance and stability with low maintenance cost
4.Custom built, meet your needs exactly,that is to say,you just need to tell us your brewery's real condition,then our team will design suitable tanks suitable to your brewery.
Our Service:
1.As owning an experienced and creative engineering team, we could offer you professional solutions for your plant and equipment.
2.If you already have solutions, we would fabricate the equipment exactly as per your request.
3.We could offer you training of brewing craft beer and operating equipment if needed.
4.Equipment can be customized according to your request.
5.36 months warranty.
6. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
