DGET-1000L
DGET
8438400000
DEGONG Equipment Technology Co.,Ltd is a professional beer brewing manufacturer,which is proudly designed and built at our facility. From concept to completion you can count on our exceptional services to make your dream brewery reality!
| Introduction of beer mashing system/brewhouse |
1000L Steam Fired Brewery Includes:
Mash Tun / Lauter Tank
Brew Kettle / Whirlpool
Stainless Steel Work Platform with Handrails
2000L Automated HLT
Fully Welded Sanitary Process Piping System
Complete Electrical Package
1000L Steam Fired Brewery Specifications:
Mash Tun/Lauter Tank Assembly
32” inner diameter all stainless steel T-304 construction, dished top and bottom.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
sealed access door.
sealed top man door access.
Thermo-well installed with RTD for measuring temperature in Mash / Lauter Tun
Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
Brew Kettle/ Whirlpool Assembly:
32” inner diameter all stainless steel T-304 construction, dished top and bottom.
sealed top man door access.
2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
8” diameter steam flue slip flange with condensation gutter and drain port.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internally mounted ladder assembly for easy cleaning access.
Fully welded steam jackets with rear exit protruding steam/condensate nipples.
Thermowell installed with RTD for measuring temperature in Brew Kettle.
2000L Hot Liquor Tank Assembly
Dished top and bottom jacket.
Fully welded steam jackets with rear protruding steam/condensate nipples.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
sealed top man door access.
Thermo-well installed for your supplied temperature probe.
4” diameter leg assembly with standard anchor pads.
2” mineral wool insulation with 14 gauge polished stainless steel outer shell.
The HLT includes an electrically actuated steam valve that is pre-wired into our control panel for temperature control.
Sanitary Piping System
Stainless steel work platform with handrails provided
Fully welded sanitary process piping
Pump mounted to the bottom of the access platform and complete with all piping connections.
Dual stage all stainless-steel Mueller heat exchanger assembly mounted to the underside of the access platform.
Grant/ Hop Back kettle complete with:
Built in float switches.
Removable wedge wire bottom screen with lift out handle.
Standard Control/Electrical package will include:
UL Listed Stainless steel wash down electrical box to include:
10” Touch screen HMI display.
Temperature readout for the Mash Tun, Brew Kettle & HLT.
Automated temperature control for the HLT.
VFD for main transfer pump.
Float switch controllers for the Grant/Hop back kettle.
VFD for the Hot Liquor Tank pump.
On/Off/Auto switch for the Transfer pump assembly.
Wiring diagram for operation of this system
Our main system power requirements are standard 208V 3 phase power. Alternate supply power options are available upon request. Some cost increases may apply.
| Certifications |
CE&TUV&ISO

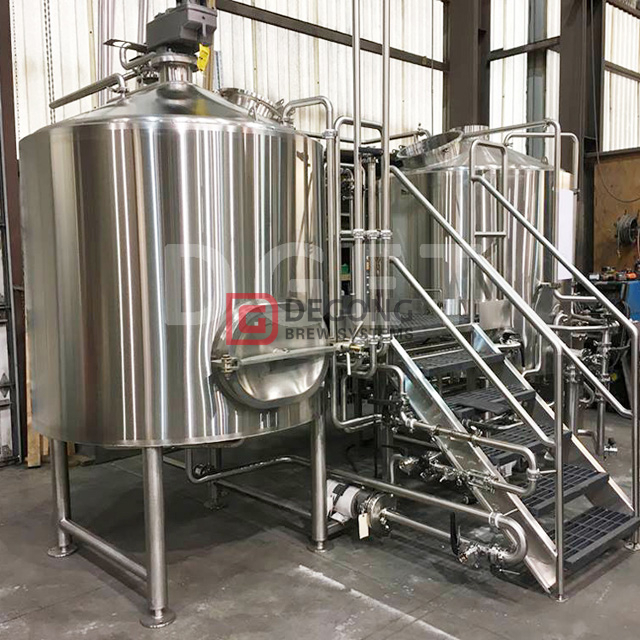

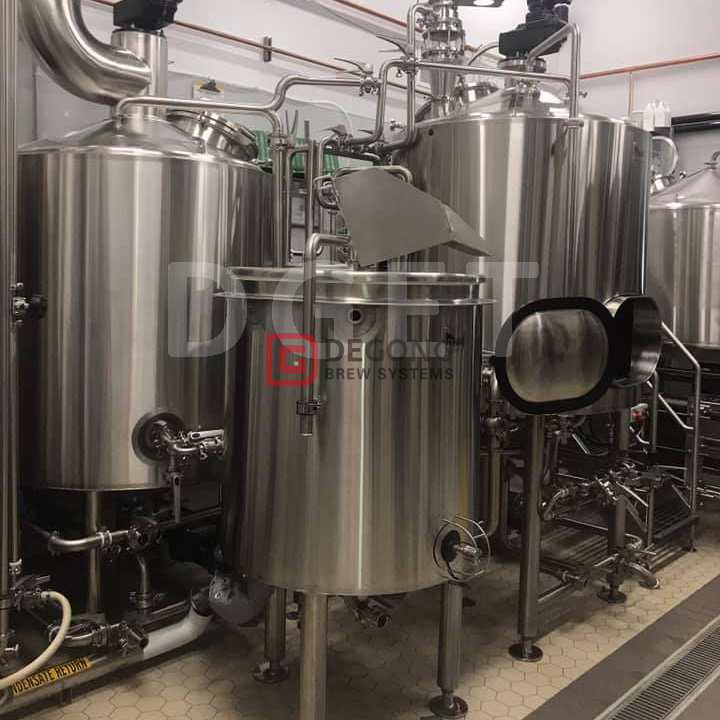

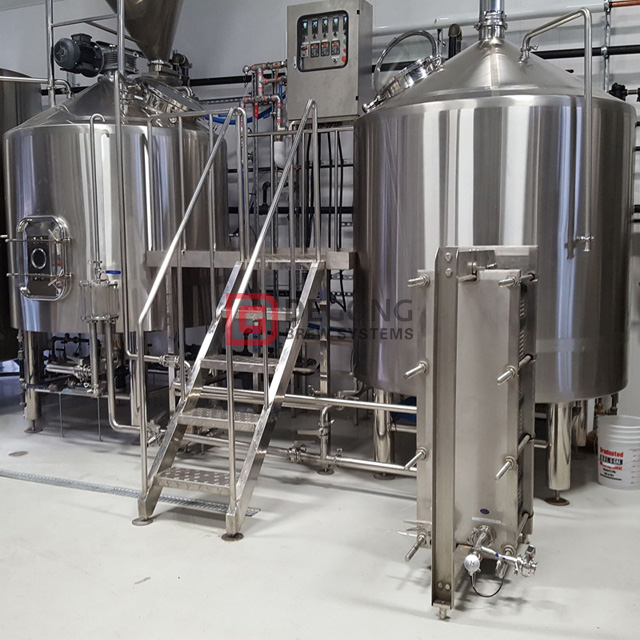

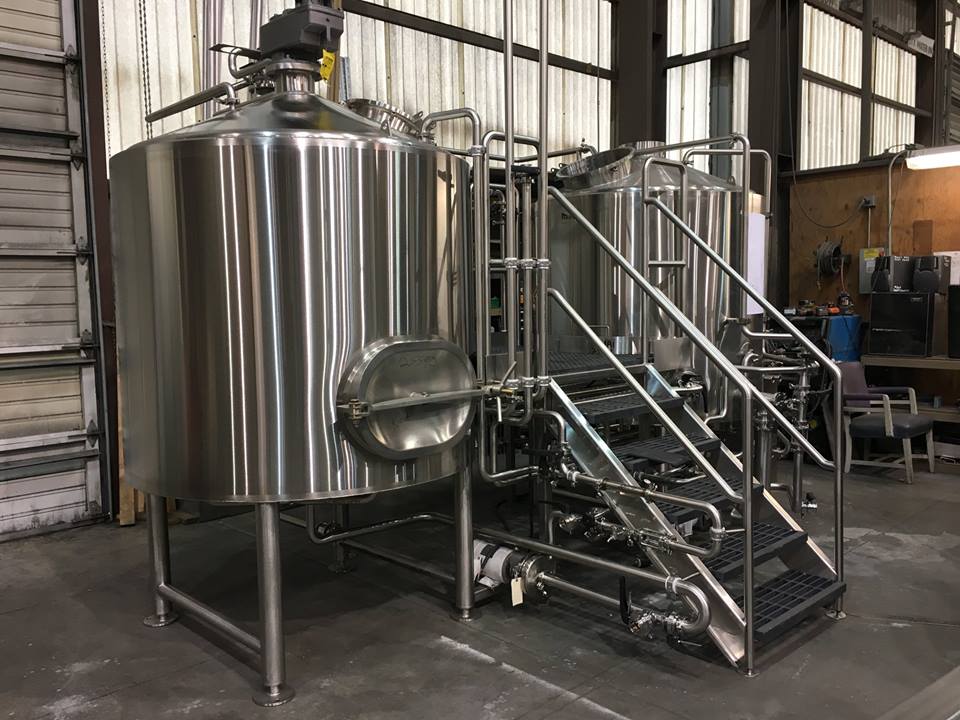

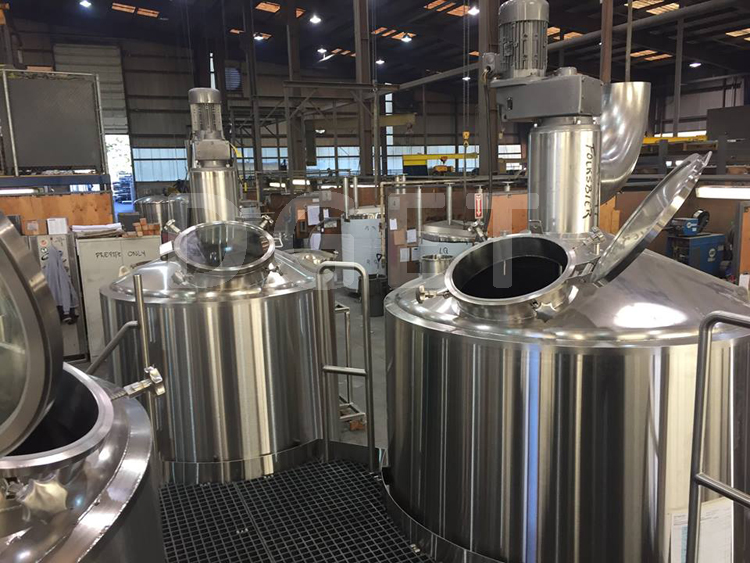

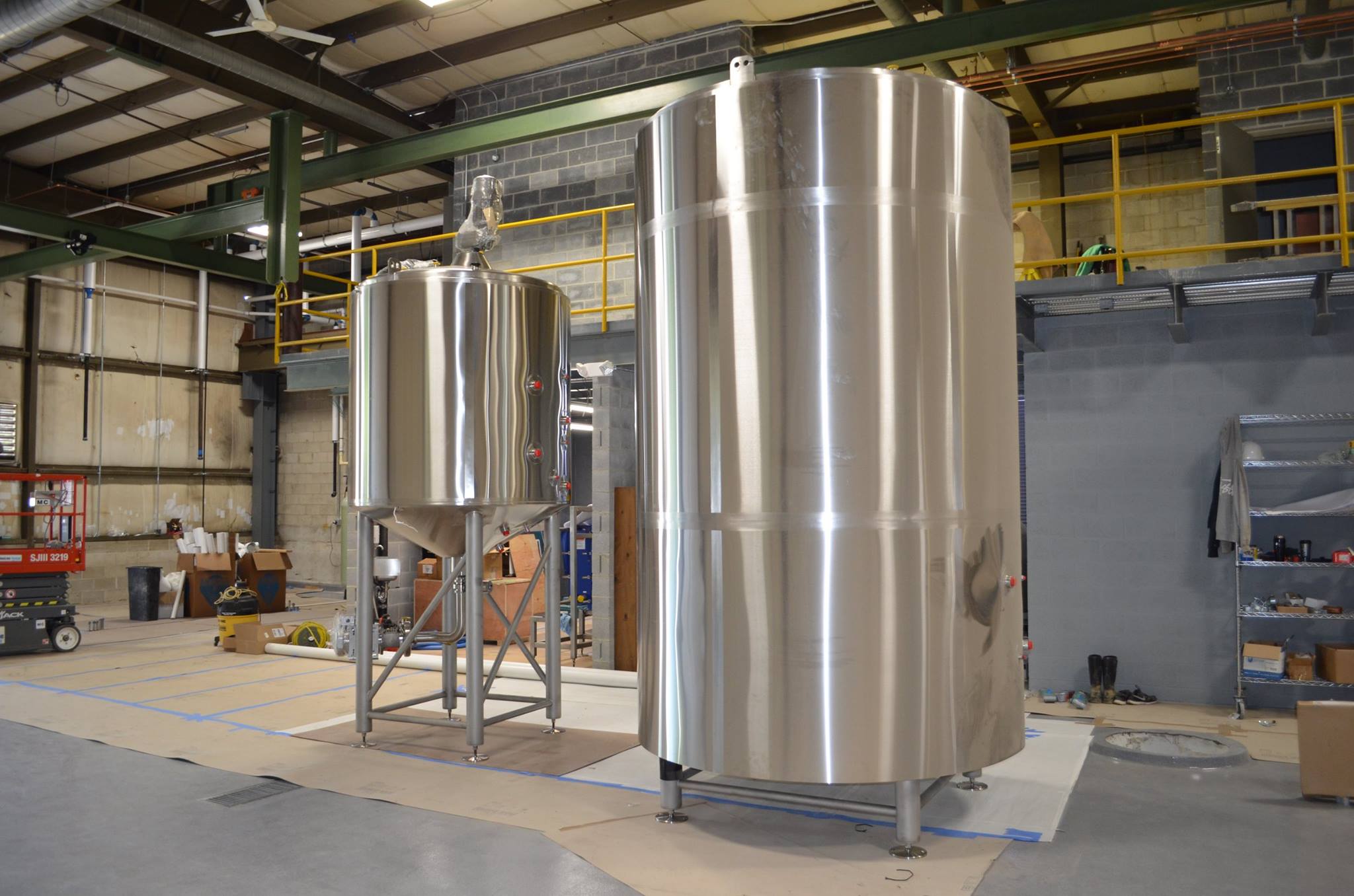

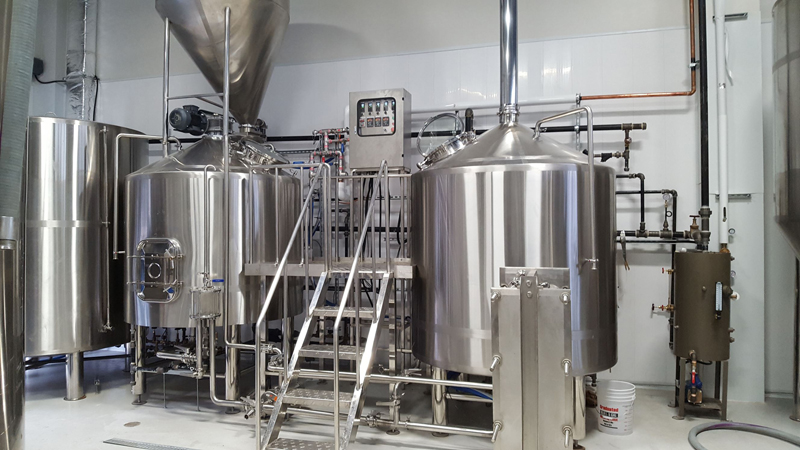

| Equipment shows |
| Why choose us |
HEAT CONTROL: Our commercial grade stainless steel brewing systems for sale provide the ability to control heat from 0 to 100% (either in 1% increments on our Advanced panel, or infinitely adjustable with the dial on our basic panels.
SAFETY: We provide GFCI breakers that meet the NEC requirements for protection of human life on each element circuit for safety and better reliability in a wet brewery environment.
EASY TO CLEAN: Our systems have sanitary construction with food grade valves, sanitary welds and tri clamp fittings. Spend less time cleaning, and more time brewing delicious brew.
DURABILITY: Our brewing systems are engineered to commercial standards and are built to last.
WORT PROTECTION: Our Ultra-Low watt density elements, plus our ability to lower the element's power (which makes the watt density proportionally lower with our 0-100% adjustment), there is no scorching or off flavors.
LOW COST TO VENT THE STEAM:With our stainless steel commercial grade brew kettles, you use a low cost condensate stack or steam condenser to vent the steam. Steam MUST be properly ventilated to avoid serious mold and potential health safety issues in your building.
| Contact us |
