A brewhouse consists of all the components, or vessels, a craft brewery needs for the initial brewing stage. It typically includes a mash tun, lauter tun, boil kettle, whirlpool, hot liquor tank.
★ Customized design of tanks, production flow, etc as per customers’ brewing process and beerfeatures, e.g. 16°P all malt beer.
★ Customized arrangement of brewhouses’ vessels, in rows, angle or square to fit the customers’existing buildings.
★ Dismountable basic frames with operators’ platform and pre-built piping for convenient siteinstallation
★ Multi brews per 24 hours, e.g. 6 batches with 4-vessel brewhouse
We design and build complete turnkey industrial-style craft breweries toyour specifications and future expansion. Breweries’ reliable performanceis guaranteed with our deep experience of 30 years in building turkey bigbreweries and proven brewing technology in various big and small breweries around the world.
Milling: 2-roller or simplified 4-roller
Mash &Lautertun: Brewing &sparging water blending port, VFD rake, with wort grant, mash hydrator, etc
Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating
Hot Liquor Tank: Steam heating, direct burning or immersion electric heating.
Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp or DIN standard pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc
Cellars: Singe, double or multi-time brew size fermenters and BBT
Cellar Control: Automatic Temp. control with solenoid valves
Portable CIP cart: with 1 electric immersion Heating caustic tank, automatic Temp. control and 1 pump, etc
1.A brewhouse consists of all the components, or vessels, a craft brewery needs for the initial brewing stage. It typically includes a mash tun, lauter tun, boil kettle, whirlpool, hot liquor tank.

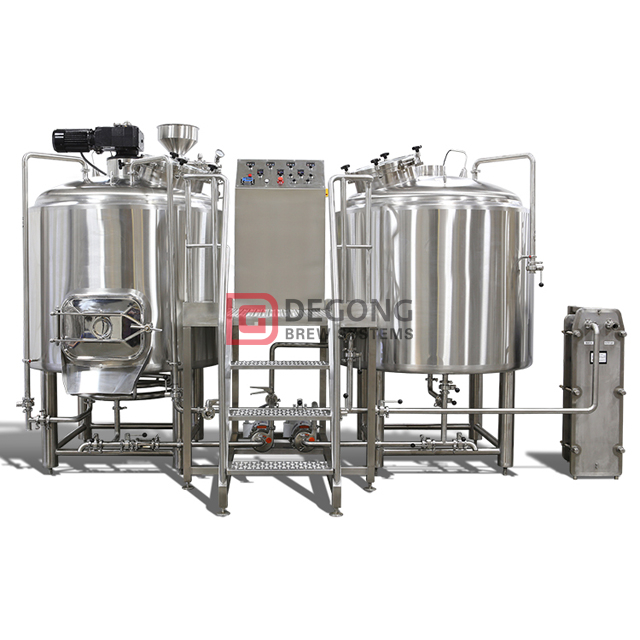

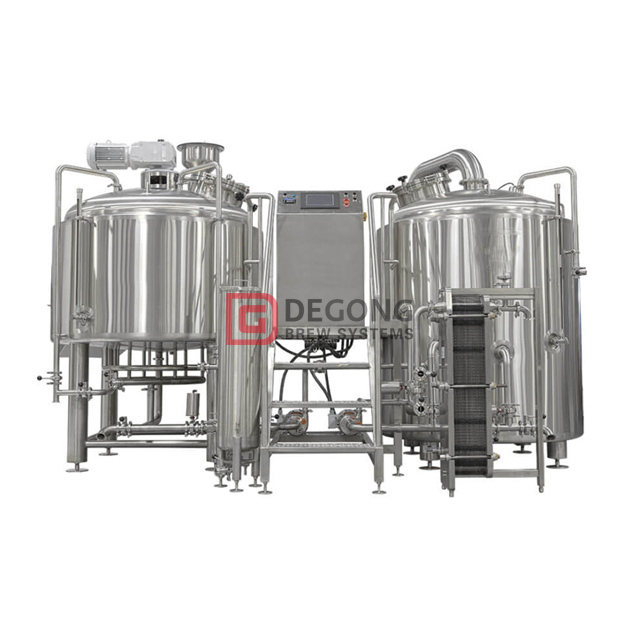

2.A two-vessel brewhouse is often made up of combinations of a mash/lauter tun and boil kettle/whirlpool tun, while a larger, more advanced three,four five-vessel system separates these components.
Mash/Lauter Tun+ Boil Kettle/Whirlpool Tun+ Hot Liquor Tank
Mash/Lauter Tun/Whirlpool Tank Combine Vessel+ Kettle Tun
Mash/Lauter Tun/Hot Liquor Tank Combine Vessel+ Boil Kettle/Whirlpool Tun
SUS304,SUS316 or Red Copper
SUS,Mirror SUS, Luxury Red Copper
Polyurethane or Rock Wool
CE,UL and ISO
Temperature, Pressure Auto Control/ PLC, HMI or Touch Panel
3Phase/380(220, 415,440…)v/50 (60)Hz
|Our equipment shows in customer's brewery|
1.Electric power:It can be customized according to customer’s local condition.Such as 220V,230V,380V,430V; 50HZ or 60HZ;3 phases or single phase.
2.Price:Every customer has different requirement,so we need to confirm your requirement first,then give you price.Such as some customer require steam heating,some customer require electric heating;Some customer require 2 vessels brewhouse and some customer require 3 vessels brewhouse;Some customer require top manhole for fermentation tank and some customer require side manhole.So even both 1000L equipment,there price are different.So we need to confirm your detailed requirement first.
3.How to see if your company is trust?
We have sold many equipment to EURO.We can give you our customer’s contact information,you can listen to their advice or visit their brewery.
4.How should we do if we don’t know how to brew beer and install equipment?
We will dispatch engineer to install equipment and teach you how to brew beer freely.
If you have interest,please get in touch with me freely.
