DEGT-500L
DEGT
8438400000
What's the mash system?
Mash system mainly includes mash tank and lauter tank . We can support you all kinds of beer equipment with range form 100L to 2000L , we can al so esign it according to your request.
The main parts of the .equipments in this system are made of stainless steel reaching international standard level ,the appearance of other imported German technology, decorative and practical . laser cutting line and pure argon gas welding. polyurethane moisturizing measures . so that the temperature and room temperature device surface consistent . The whole equipment and the layout of pipellnes looks very beautiful without the dead corner.'It can be operated easily and has stable function.

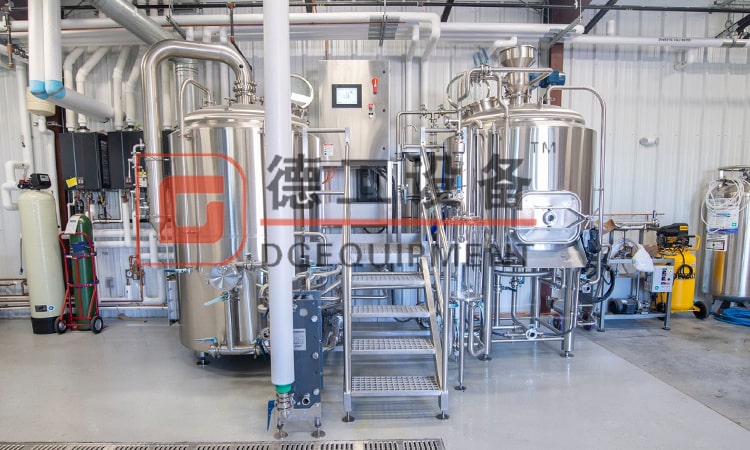

Brewhouse front view
2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool)
3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool)
4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool)
Mill system
100Kg/h，breaker roll type, adjustable mill degree,
Crushing particle size: adjustable
Mash/Lauter tun
Features: Grain mashing, Lautering and sparging
Double wall stainless steel; Gross capacity:750L; Useful capacity: 500L
Inner(SUS304),TH=3.0mm；Outer(SUS304),TH=2.0mm; steam jacket(SUS304）TH=1.5mm
Inner surface treament: welds grinded to Ra 0.6μm without deadcorner
100％ TIG welding with pure argon gas shield
Insolution: 80mm polyurethane
Glass top manhole(Optional）
4pcs completely SUS304 heavy duty legs with leveling
Grain raker with VFD controlled motor and gear reducer
The use of advanced inverter control of motors , energy-saving mute. The motor can be controlled and adjusted by transducer.
Kettle /Whirlpool
Featurers: Wort boiling, hopping and whirlpool
Double wall stainless steel; Gross capacity:750L; Useful capacity: 500L
Inner(SUS304),TH=3.0mm；Outer(SUS304),TH=2.0mm; steam jacket(SUS304）TH=1.5mm
Inner surface treament: welds grinded to Ra 0.6μm without deadcorner
100％ TIG welding with pure argon gas shield
Insolution: 80mm polyurethane
Glass top manhole(Optional）
4pcs completely SUS304 heavy duty legs with leveling
Top mounted 360° coverage CIP spraying ball and port TC easy clean
Steam condenser with spray nozzles
Side tangential whirlpool inlet TC
Wort outlet TC on side of the bottom cone
Hot water tank
Features: Boiling water
Double wall stainless steel; Gross capacity:750L; Useful capacity: 500L
Inner(SUS304),TH=3.0mm；Outer(SUS304),TH=2.0mm; steam jacket(SUS304）TH=1.5mm
Inner surface treament: welds grinded to Ra 0.6μm without deadcorner
100％ TIG welding with pure argon gas shield
Insolution: 80mm polyurethane
Glass top manhole(Optional）
Temperature way：Double metal thermometer
Outer surface: Weld polishing processing
500L Brewhouse details
Detailed description of brewhouse pipeline
Hard piping: Staintary SUS304; Self-draining
Inline sight glass for checking wort clarity and color
Pipe filter keeping hot breaker from heat exchanger
Every weld to a smooth staintary finish
Stainless steel manually butterfly valves TC

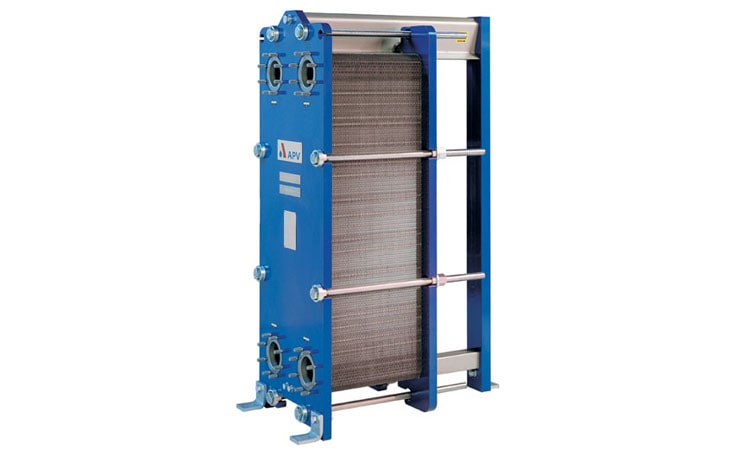

Plate heat exchanger
Fuction: Wort cooling
Completely SS304 corrugated plates
Full detachable for regular thotough cleaning
City water, glycol, wort inlet and outlet
Plate heat exchanger
Operation platform
Platform frame is constructed entirely of stainless steel with a stainless steel diamond plate deck.A stainless waterright electronics enclosure is mounted to the back of the platform.Stairs are constructed of stainless steel diamond plate deck material.
External wort Grant
Featurers: Buffer tank avoiding negative pressure in lauter tun
Total wort volume approx 50L
Highed stainless steel over
Sight level glass
Drain valve
1. Electric heating: The equipment is heated by electric heating pipes. (Electric heating is not recommended for equipment over 1 ton)
2. Steam heating: The equipment is equipped with a steam jacket and a steam boiler is also provided. (Steam boiler: electric boiler, diesel boiler, gas boiler.)
3. Direct fire heating: There is a boiler under the saccharification equipment to burn gas or coal. Now the direct fire heating equipment mainly burns gas. In foreign countries, the price of steam generators is extremely high, in order to reduce equipment purchases instead of direct fire heating.
If you have needs for craft brewing equipment, please feel free to contact us,my pleasure. Please leave messsage in below to get our latest quote and equipment list for beer filter or turnkey brewery.
