1000L Automatic Steam Heating Customized Stainless Steel Beer Brewery Brewhouse / Mash System

1000L Automatic Steam Heating Customized Stainless Steel Beer Brewery Brewhouse / Mash System.All of the details can be customized,such as 2 vessels brewhouse or 3 vessels brewhouse,steam heating of gas heating...and so on.The raker,agitator and pumps are VFD ABB OR SIEMENSE.All of the pipes and valve are food grade stainless steel 304

Material:
Size:
Material thickness:
Pipes:
Electric component:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000



Brewhouse
 / mash system of beer brewery equipment assembly adopted with three vessels: Mash/Kettle, Lauter tun and Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.The raker,agitator and pumps are VFD ABB OR SIEMENSE.All of the pipes and valve are food grade stainless steel 304


Mash kettle assembled with mash agitator, condenser tube and also has whirpooling functions.

Lauter tun assembled with rakers and false bottom for grains separation.

Whirpool tun is multi functioned for wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.

Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.

Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp or DIN standard pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc


1 (2)9

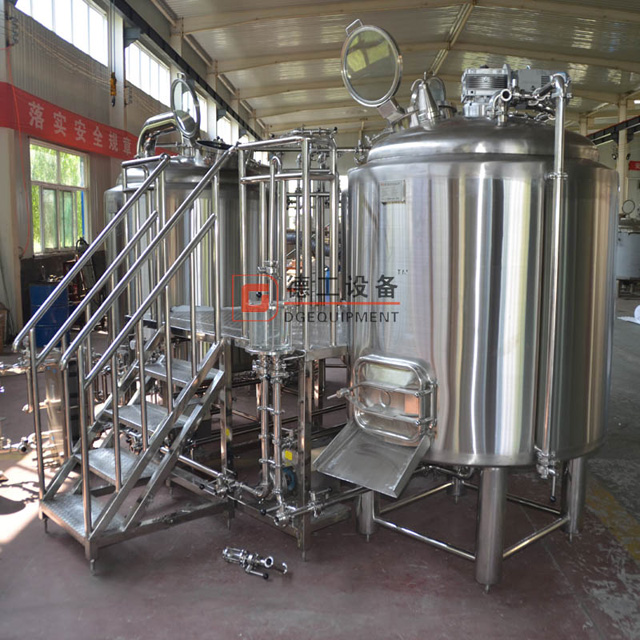

1000L  Stainless Steel Beer Brewery Brewhouse / Mash System

DSC_89410

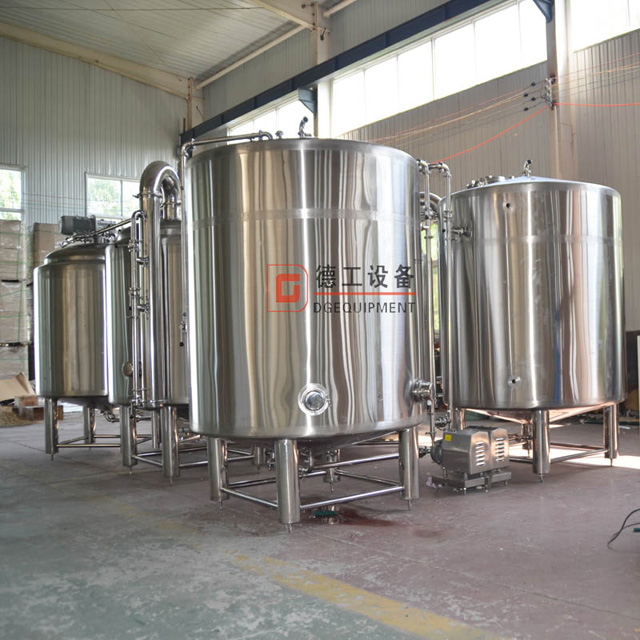

Cold water tank&hot water tank.Most customer will adopt a hot water tank and cold water tank to improve efficiency.

7775755

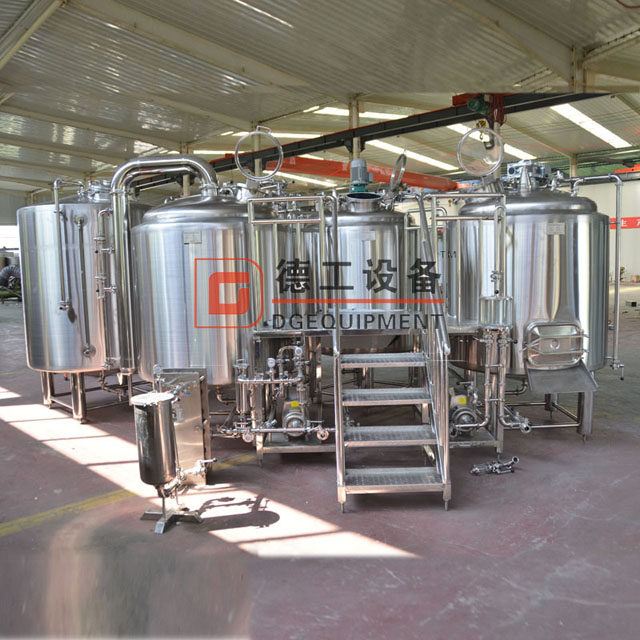

Details of brewhouse:raker of lauter tank,agitator of mash tank,chute for spent grain and sight glass.



Raw material:properly prepared cereal grain (usually barley and corn or rice),hops (scientific name Humulus lupulus), pure water, and yeast. Each ingredient can affect flavor, color, carbonation, alcohol content, and other subtle changes in the beer.Therefore, the raw materials are high quality imported malt,wheat malt, black malt,burn fragrant malt and import hops.The active yest species are introduced from Germany. And our fresh pure beer doesn't add any additives and have rich nutrition and unique taste, it is truly green food.




Advantage:

1.Different specifications meet different need of customers,for example,several types of heating devices for your choice: dimple jacket / inner pipe heating machine(optional)

2.Advanced technology can saving energy and running cost,for example,our control panel is PLC.

3.High performance and stability with low maintenance cost

4.Custom built, meet your needs exactly,that is to say,you just need to tell us your brewery's real condition,then our team will design suitable tanks suitable to your brewery.

Our Service:

1.As owning an experienced and creative engineering team, we could offer you professional solutions for your plant and equipment.

2.If you already have solutions, we would fabricate the equipment exactly as per your request.

3.We could offer you training of brewing craft beer and operating equipment if needed.

4.Equipment can be customized according to your request.

5.36 months warranty.

6. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.


未标题-1FFpf


If you have interest,please get in touch with me freely.
