DEGT-700L
DEGT
8438400000
The 700-liter beer brewing equipment we produce is a set of technical equipment for producing "fresh" and filtered beer. The brewing master makes beer attractive to consumers through unique brewing process and unique beer taste. If needed, they can be placed directly in beer consumption places: restaurants, bars, bars, hotels, tourists and shopping centers. In addition to stainless steel, interpreters may also face polished brass and copper. Similarly, the microbrewery is located behind a glass partition, where visitors can observe the beer brewing process. This is an excellent internal design solution and a powerful marketing tool.
Brewhouse heating method
Steam heating: electric boiler, gas boiler, diesel boiler
Electric heating: electric heating tupe
Direct fire heating: burn natural gas
Mash/Lauter tun+Boiling/whirlpool tun technical parameter
Material inner(SUS304): thickness: 3.0mm;
External-Jacket(SUS304), thickness: 2.0mm;
Cylinder (sharp type, SUS304), thickness: 2.0mm.
Inner surface treatment: welds grinded to Ra 0.6µm.
Insulation: Polyurethane-thickness 100 mm.
Temperature way:Double metal thermometer
Outsourcing surface: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
CIP 360 degrees Omni bearing cleaning
Integrated CIP System
Brewhouse unit details
Component: fermentation tank, bright beer tank, yeast adding tank and accessories
Fermentation tank techical parameter
Inner(SUS304), TH=3.0mm
Exterior(SUS304), TH=2.0mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.6 μm without dead corner
Insulation: Polyurethane TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and 60 degree cone bottom
CIP arm with 360° coverage CIP spraying ball
Full sanitary sampling valve
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
Complete valves, fittings and all parts
Level tube for special request
Carbonation port and stone for special request
Fermentation tank details
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
Control Cabinet

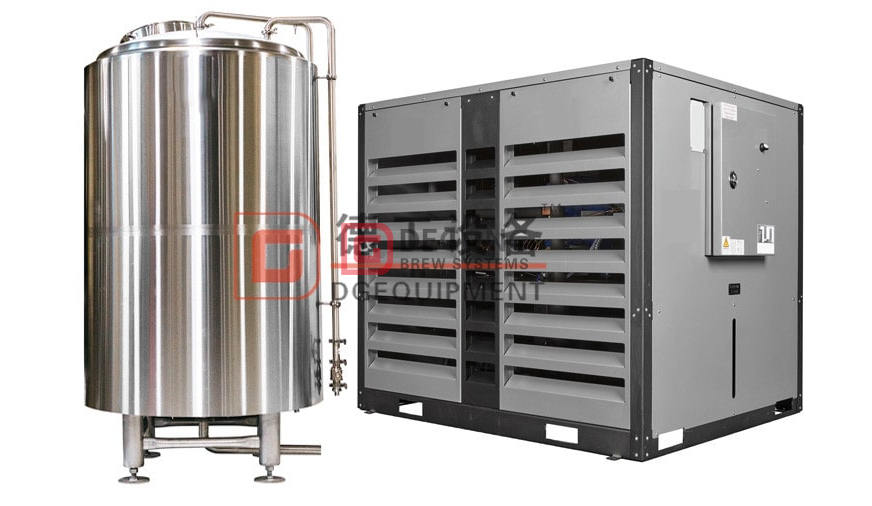

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
qlycol tank and refrigeration unit
If you want to know more about beer brewing equipment, please contact with me.
