DEGT-15BBL
DEGT
8438400000
The 15BBL fermentation system consists of fermentation tank and a bright beer tank, fermentation is an important process in beer production. It is a complex biochemical reaction process involving yeast. The fermentation tank is cylindrical with a cone bottom, and the tank has its own cooling device, which can easily control the fermentation temperature. The bottom of the tank is cone-shaped, so it is easy to recover yeast and clean the tank; The tank has a CIP cleaning system to ensure hygiene in production. It is equipped with advanced international fermentation engineering technology and can adopt PLC automatic temperature control technology.

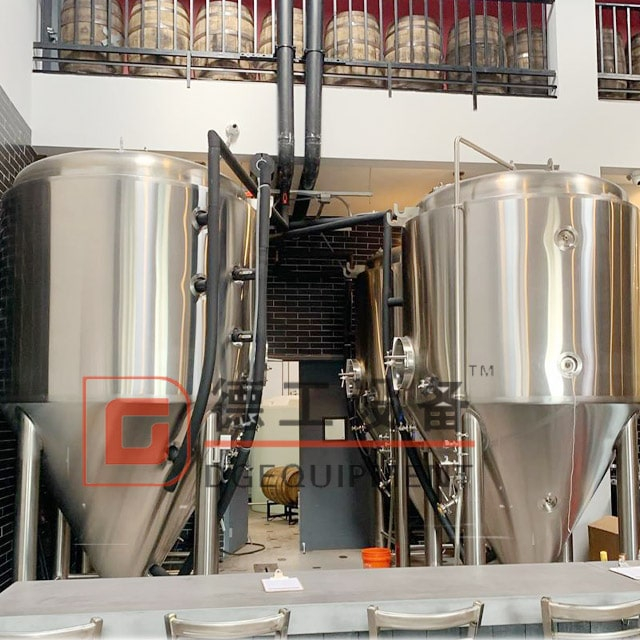

A row of fermentation tank
The main material is SUS304 sanitary stainless steel |
Useful capacity:15BBL, Gross capacity: 18BBL |
The bottom is 60 degree tapered so as to discharge yeast easily; 100% TIG welding; cleaning and polishing |
Design Pressure: 1.5bar Test Pressure: 3.0bar; Inner thickness:3.0mm; Outer thickness:2.0mm; External-Jacket thickness:1.5mm; Heat Insulation: Polyurethane Foaming Insulation, with the thickness 100mm |
According to the specification of tank types, the corresponding specification and model of sanitary clamp joint would be equipped |
Equipped with vacuum valve / pressure relief valve, pressure gauge, temperature gauge, sampling valve, side or top manhole, all-round equipment cleaning CIP nozzle with 360 degree |
Equipped with the double inlet and double outlet glycol cooling pipe |
Equipped with rotary inlet and outlet feeder ports with valves and accessories |
CO2 charging device (according to customer requirements) |
Fermentation tank details
Side view fermentation
Bright beer tank(serving tank)
Bright beer tank details
If you want to know about fermentation vessel, please contact with me freely.
