500L 1000L Commercial Use Beer Brewing Equipment Stainless Steel Brewhouse And Conical Fermenter Tank

Weather you want to brew craft beer or brew commercial/industrial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale, stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer....DEGONG brewing equipment always can meet your requirement

Thickness of material (mm):
Insulation:
Heating method:
Construction:
Material:
Quantity:
  • DGET- 500L 1000L
  • DGET
  • 8438400000


Weather you want to brew craft beer or brew commercial/industrial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale, stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer....DEGONG brewing equipment always can meet your requirement

How-much-have-beer-sales-dropped-in-the-on-trade_wrbm_large



1000L beer brewing equipment compoment

Grinding System

Main equipment

Malt mill; screw feeder, grain hoppers, grist hydrator

Working capacity

300Kg/h

Function

Malt mill breaks grains, make it easier for sugar to separate out when saccharify

Mashing System

Main tanks

Mashing tun, lauter tun, kettle and whirlpool tank(Can be combined freely,such as mash/lauter tank+boiling/whirlpool tank,or mash/lauter tank+boiling tank+whirlpool tank)

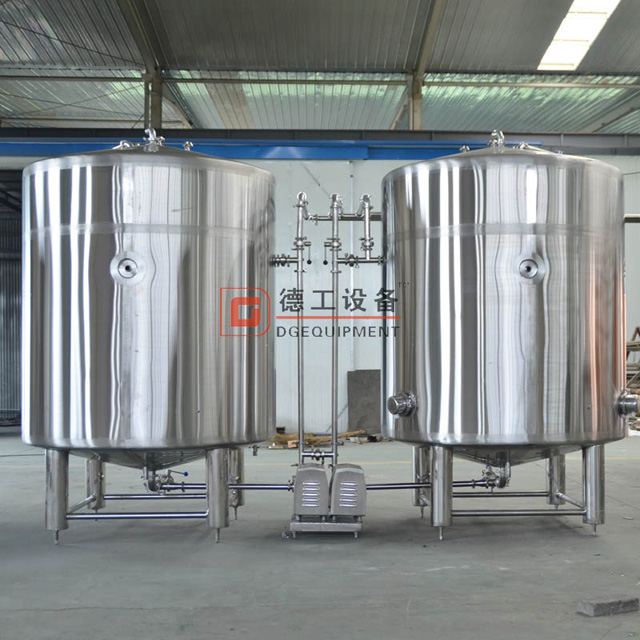

Cold liquid tank (CLT), hot liquid tank (HLT)

Capacity

1000L per batch

Heating method

Steam heating, electric heating, direct fire heating

Material

SUS304 Or copper,thickness:3mm

Insulation

Polyurethane/Rock wool, thickness: 100mm

Polishing precision

Ra0.4um

Accessories

Pump, pipeline, heat exchanger, hops filter,wort grant,wort aeration device,false bottom, raker, motor,platform, pipes&valves

Function

Separate all the sugar from the grain and dissolve the sugar in water. The grains and impurities are separated from the water,then got pure wort

Fermentation system

Main equipment

Fermentation tanks and bright beer tank. Quantity is decided by you

Capacity

1000L or 2000L per tank

Material

SUS304, thickness: 3.0 mm

Insulation

Polyurethane/Rock wool, thickness: 100mm

Polishing precision

Ra 0.2-0.4um

Cooling way

Dimple jacket

Cone bottom

60° resist compression design

Fermentation tank pressure

Design pressure 0.3MPa; Working pressure 0.15Mpa

Accessories

Vacuum  valve,hops adding port,CIP pipe,pressure gauge,mechanical regulation valve,sample valve,carbonation stone,temperature sensor,themometer,drain outlet.

Function

Yeast has aerobic respiration and  anaerobic respiration in fermentation tank. Turn sugar into CO2 and alcohol. Finally we get original beer

Refrigeration System

Main equipment

Glycol water tank,circulate pump,chiller

Capacity

According to the quantity and capacity of fermentation tank and bright beer tank.

Chiller

According to the quantity and capacity of glycol water

Function

Cool down wort when fermentation tank temperature is high. Control fermentation carries on under appropriate temperature. Sometime, ice water is also used to cold down hot wort before wort goes into fermentation tank

CIP system

Main equipment

Alkali tank,sterilization tank and pump

Function

Clean all tanks before brewing beer or finish brewing beer. Use NaOH to clean firstly, secondly is H2O2, finally is water. Then begin to brew beer

Control System

Main equipment

 PLC control box

Function: Control all the pump and motor. Control mashing system and CIP system manually, control fermentation tank temperature automatically.

Others

Can also supply auto filling system, capping system, filtering system, water treatment system,  pasteurizer and so on.

DEGONG beer brewing equipment


DEGONG Brewing equipment feature


304 SS or 316LSS or copper.

30% head space at least for each tank

Motorized mash mixers, lauter rakes and spent-grain plow

ABB Siemens motors/pumps on the whole system

Stainless steel process piping, work cabinet and control cabinet

Siemens/Schneider/Omron electric element

Grirst hydrator bowl with hot/cold liquor blending

Sight level indicators on fermenting system.

Insulated with a minimum of 100mm Chloride-Free PU Insulation.

Interior Finish: Overall polishing to 0.4 μm without dead corner

Adjustable Levelers provide a level tank regardless of floor slope;

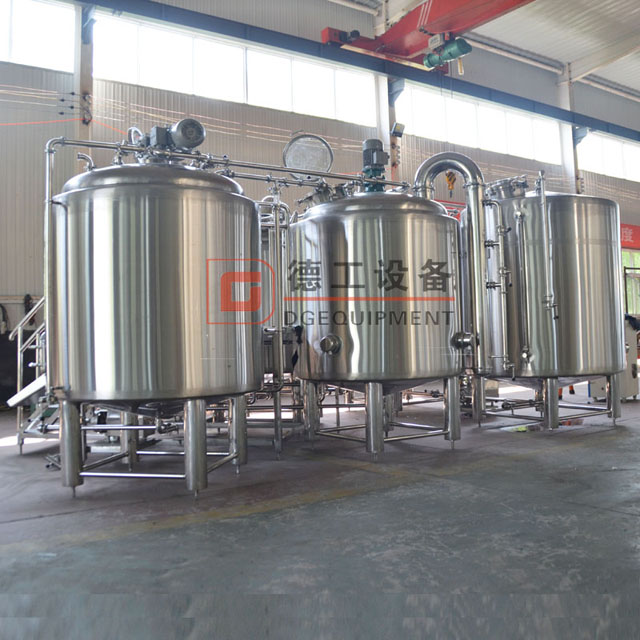

beer mashing system


未标题-1e-min


未标题-dd1-min

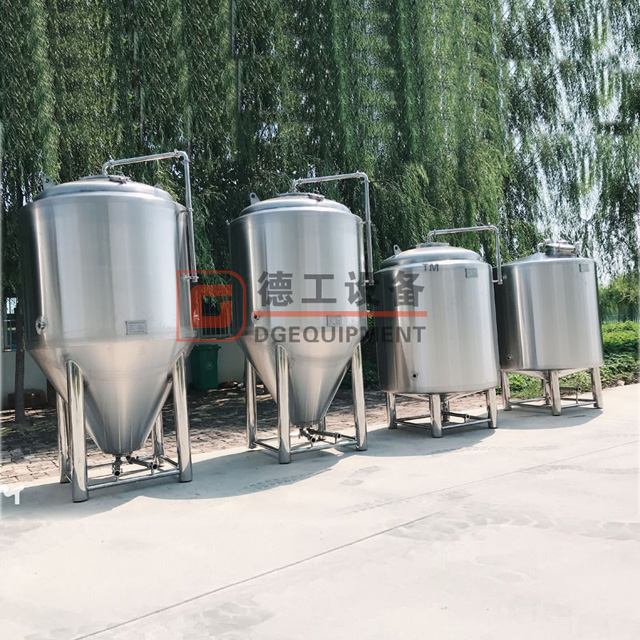

fermentation tank


Contact information


company introduction_副本servide

01


The complete brewing system also should contain malt crush system,bright beer tank,cooling system,CIP system,control system,kegging or bottling or canning machine,filter system,water treatment device,pasteurization machine and so on.


If you want to know more details,welcome to contact me.
