DGET-1000L
DGET
8438400000
Distilled liquor is a variety of alcoholic beverages with higher ethanol concentration than the original fermented liquid. Sugar and starch are fermented by yeast to produce alcohol. The boiling point of alcohol (78.5°C) and the boiling point of water (100°C) is different, the original fermented liquid is heated to between the boiling points of the two, and then the alcohol and aroma substance can be steamed and collected. A special distillery is used to heat the liquor. Due to the different volatility of the various substances contained in them, the relative content of various substances in the steam and in the liquor is different during heating and distillation.

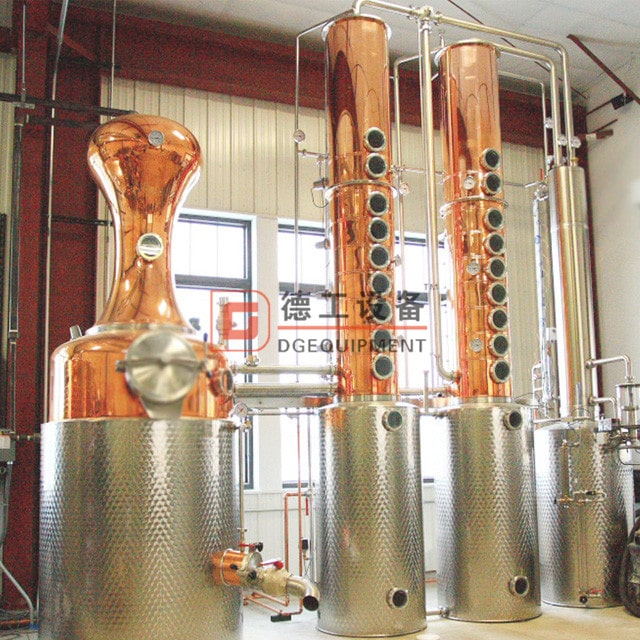

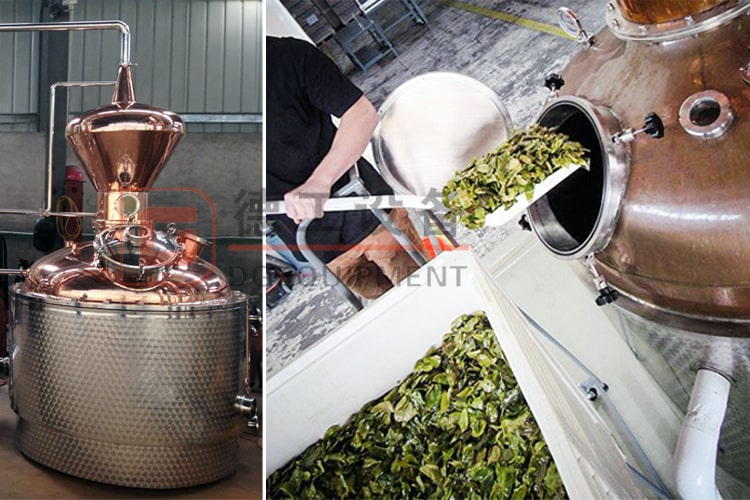

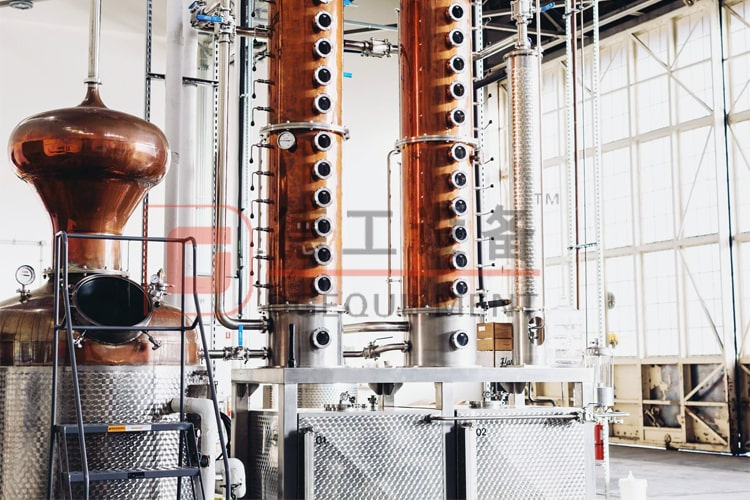

Distillation equipment is the result of continuous innovating and developing based on our experience of brewery equipment manufacturing. DEGONG distillation equipment can be used to make fruit wine, whiskey, vodka, gin, tequila, rum, brandy and other distilled spirits. All systems have the characteristics of small and medium size, automatic control, easy operation and beautiful outlook. The equipment is suitable for small and medium sized workshops, hotels etc.
1000 model double effect concentrated rectification parameters | ||||
Name | Double effect concentrated rectification |
Capacity of separator |
1000L | |
Classification of container | None | Quantity | 1 | |
Manufacturing standard | NB/150-2010《stationary type steel atmospheric container》 NB/150-2010《shell-and-tube heat exchanger》 | |||
Technical specifications | Qty | |||
Main component |
1. Still : | Working capacity:1000L; fully copper for interior shell, thickness is 5mm. Steam jacket heating method, exterior shell is 2mm fish scale plate; components on the still: fully sight glass, thermometer, safety gas discharging device, CIP ball, stirring device, lamp, feeding port etc... |
1 set
| |
2. Copper head： | Copper head: thickness 3mm, with sight glass, CIP balls, thermometer, flange connection to still; | |||
3.First fractionating tower： | The fisrt column: 7 floors of copper column (8 pieces of sight glass) thickness is 3mm. With backflow device, with copper dephlegmator and stainless steel fish scale plate base tank ( thickness 3mm) | |||
4.Second fractionating tower： | The second column: 7 floors of copper column (8 pieces of sight glass) thickness is 3mm. With backflow device, with copper dephlegmator and stainless steel fish scale plate base tank ( thickness 3mm) | |||
5. Condenser： | The third column: Stainless steel condenser, the shell is stainless steel fish scale plate and stainless steel fish scale bash tank ( thickness is 3 mm) | |||
If you have interest,welcome to contact me freely
