Copper Pot Still Vodka Customized 200-5000L Distillation Equipment with Stainless Steel Condenser

Our design minimizes surface areas to help maintain optimal and consistent temperature during distillation.A standard size flange between the still and head allows for switching between different still heads easily.
Thickness of material (mm):
heating method:
Availability:
Quantity:
  • DEGONG 300L 500L

  • DEGONG

Copper Pot Still

  • Legacy knowledge, modern science, and our personal experience as commercial distillers lead the engineering design for our craft distillery equipment. As copper still manufacturers, we understand the science and mystery of distilling spirits. Therefore, we make distillery equipment that simply works.

  • Our design minimizes surface areas to help maintain optimal and consistent temperature during distillation.

  • A standard size flange between the still and head allows for switching between different still heads easily.

  • We use 5mm copper throughout the pot still to ensure a longer lifespan.

  • We provide partial, hybrid, and complete automation systems to monitor every aspect of your distillation process. This dramatically improves a distiller’s ability to maintain consistent quality in the spirit distilled.


distiller主

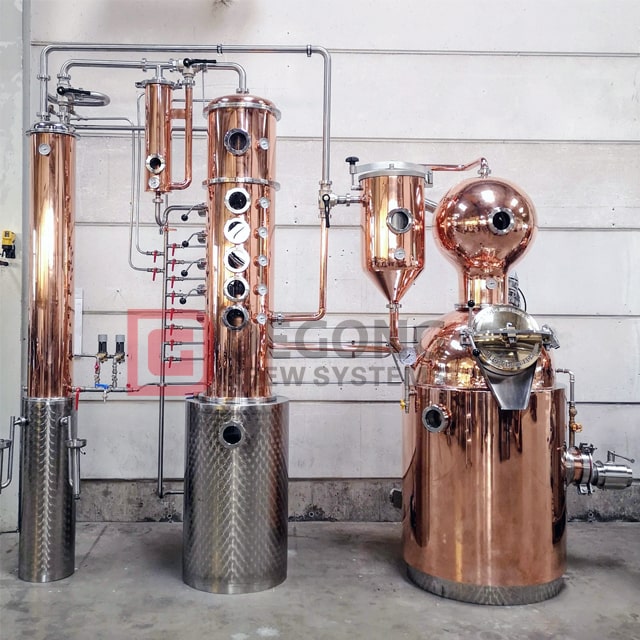

Stainless Steel and copper combioned construction 500l distilley


Stainless Steel Condenser

  • Distilling quality spirits is a mixture of art and science. The condensers we provide for our stills are designed specifically for condensing spirit vapors. From distilling flavorful whiskey or gin to clean vodka, our condensers are designed to work for your specific application(s).

  • Tube in shell condenser with cold finger made with stainless steel.

  • Design doubles surface area for each foot of length which provides rapid cooling of spirit.

  • Storage container for heads collection at bottom of condenser.


distilling

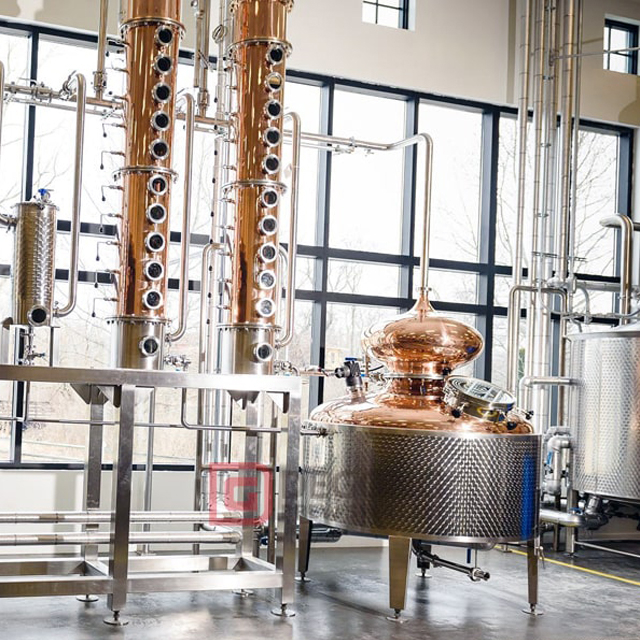

Coppr head still with 2 columns


Still Heads

Every Pot & Column still is designed with a standard flange between the still and head. This allows you, the distiller, to swap heads between batches for distilling different spirits. Choose from our list of standard still heads. Or, we will customize a head to meet your specific needs. Where applicable, each still head is designed with the following features:


  • Perforated plates (as opposed to bubble caps) that prevent fluid remaining on the plates when the still is shut down which also allows for easier cleaning.

  • Dephlegmator that allows more precise control of the reflux for single pass spirts.

  • Multiple columns side-by-side can be installed for vodka or distilling your own neutral grain spirits. This design allows for a space-saving solution and simple operability (especially in places where vertical height of a column is a concern).


Whiskey / Whisky – We offer standard whiskey heads and 4-plate whiskey columns. Or, choose from a custom number of plates in your column.


Gin – Our gin head is designed to provide even distribution of steam in the botanicals basket (i.e., less cleaning required). Gin oils can be captured and/or returned back to the still while distilling. Multiple plates are used to increase the proof of the spirit and improve botanical extraction.


Vodka – Our space-saving design for vodka helps craft distillers produce clean and higher proof spirits than is normally possible for a craft distiller.


Other Heads – We also provide still heads for rum, brandy, and cordials. Let us help you determine the correct heads for your distillery.
