DEGONG 500L
DEGONG
Distillation-The Hybrid still
The addition of a rectification column can allow the distiller to produce distillate with an ABV beyond 80%, The more trays that are included in a column, the higher the ABV that can be achieved. Each tray is in itself, a single distillation.
Pot still size: Hybrid pot stills are available in a variety of sizes from 50L to 5000L.
500L distillery popular size
Configurations:
Hybrid pot stills can be built either of copper or stainless steel. When built from stainless steel, the bottom and side shell of the pot are made of stainless, while the top of the pot is built from copper and welded together.
The Hybrid pot still can be build with various head designs, depending on the spirits being produced. The tray quantity in the rectification column is dependent on the desired ABV of the final distillate.
The condenser, which cools the vapour to liquid, is of a shell and tube design and can be built from either copper or stainless steel.
pot still platform and control panel
Powered by steam or electricity

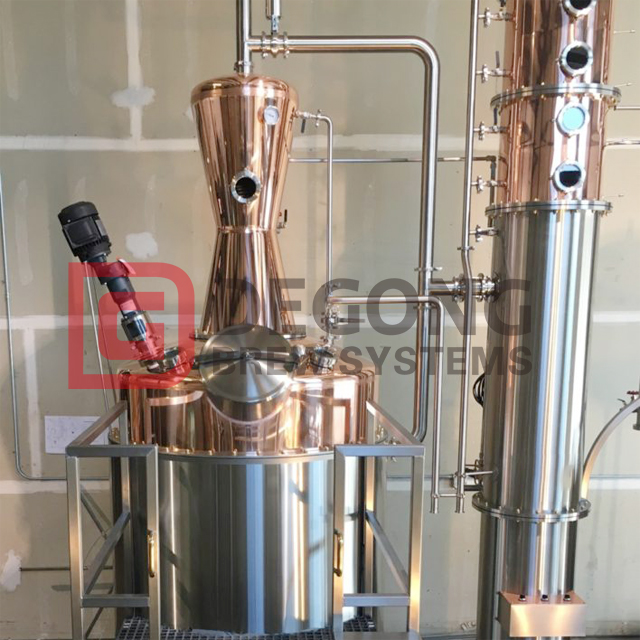

Main pot, 4 plate coloumn, dephlegmator
4 Plate column with dephlegmator and full cip
Botanical basket lined with copper
Stainless steel condensor
Stainless steel parrot and glass
Agitator with ATEX motor
Cip Pump with ATEX motor - hard piped to CIP spray balls
Frame and table to support column, botanical basket and condensor

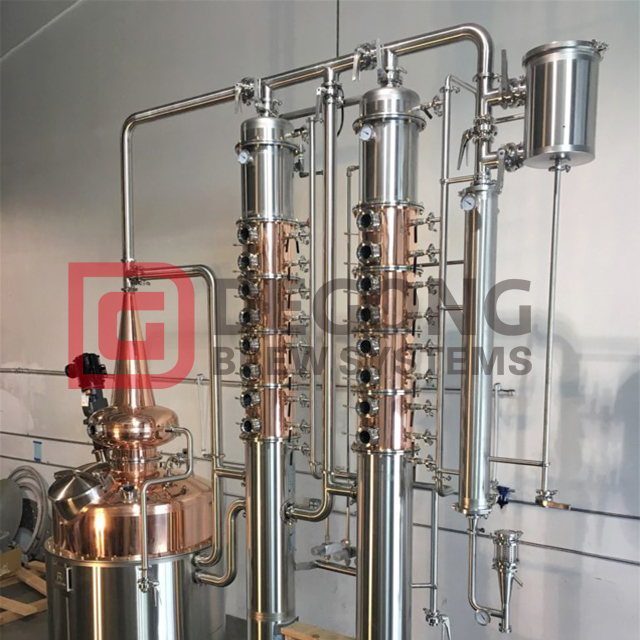

Copper stainless steel combined stills
| Typical Distillation Times: | • 1 hour heat up • 2-4 hr stripping run • 3~5 hour distillation time |
| Structure: | -1 x SS304/red copper still pot -1 x Red copper goose neck(helmet) -1 x SS304/red copper Gin basket -1 x Red copper 4~20plate distillation colum -1 x SS304/red copper dephlegmator -1 x SS304/red copper condenser -1 x SS304 parrot outlet -1 x SS304 support for condenser |
| Options: | High Torque Mash Agitator, CE/ATEX Explosion Proof Voltage:customize Copper Kettle Copper dephlegmator/condenser CIP pump and CIP pipe Bottom spirit storage tank |
| System at a Glance: | Best use: Dedicated Stripping Still, Whiskey, Brandy, Tequila, Gin or Rum Production Acohol content after distillation about 70+-10% Versatile and Cost Effective Easy Maintenance with Clean in Place 304 Polished and Brushed Stainless and Polished Copper construction |
