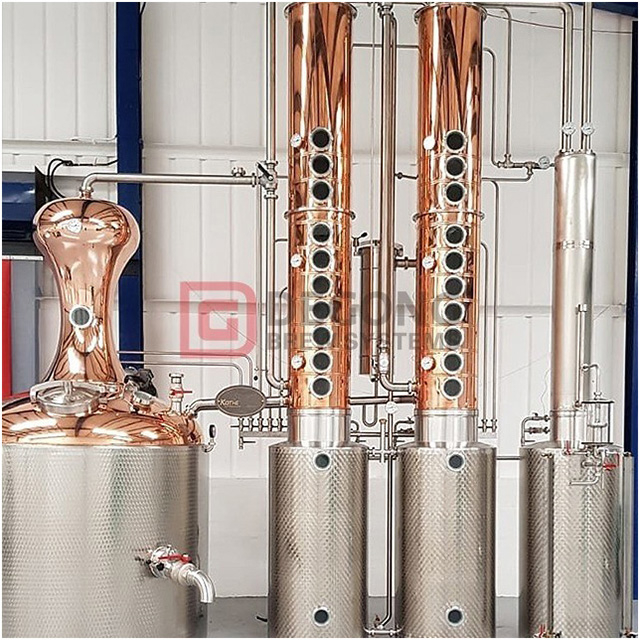

Distillery Equipment Receiving Tank Liquor Distillation Equipment 500liters Capacity

Grappa, fruit distillates, gin, vodka, whiskey, rum, brandy, tequila from 200L to 5,000L.We can customize stills according to your needs, with any size boiler or column diameter. The columns & condensers can be made with copper or stainless steel according to your needs.
Yield:
Function:
Size:
Availability:
Quantity:
  • DEGONG 500L
  • DEGONG

Grappa, fruit distillates, gin, vodka, whiskey, rum, brandy, tequila from 200L to 5,000L.

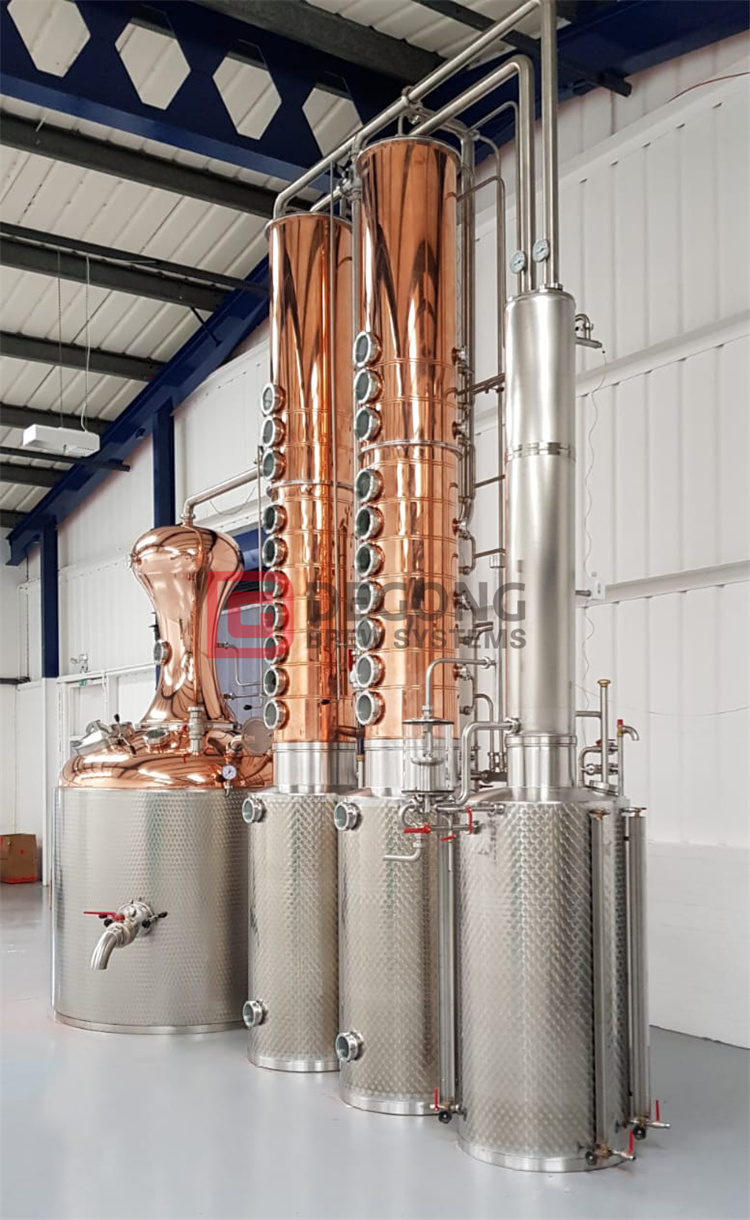

distillery089

Turnkey craft distillery equipment 500-1000liter

Configuration:

Typical Distillation Times: • 1 hour heat up
• 2-4 hr stripping run
• 3~5 hour distillation time
Structure: -1 x SS304/red copper still pot
-1 x Red copper goose neck(helmet)
-1 x SS304/red copper Gin basket
-1 x Red copper 4~20plate distillation colum
-1 x SS304/red copper dephlegmator
-1 x SS304/red copper condenser
-1 x SS304 parrot outlet
-1 x SS304 support for condenser
Options: High Torque Mash Agitator, CE/UL/CSA/ATEX Explosion Proof Voltage:customize
Copper Kettle
Copper dephlegmator/condenser
CIP pump and CIP pipe
Bottom spirit storage tank
System at a Glance: Best use: Dedicated Stripping Still, Whiskey, Brandy, Tequila, Gin or Rum Production Acohol content after distillation about 70+-10%
Versatile and Cost Effective
Easy Maintenance with Clean in Place
304 Polished and Brushed Stainless and Polished Copper construction


Powered by steam or electricity

Main pot, 4 plate coloumn, dephlegmator in C12200 copper

4 Plate column with dephlegmator and full cip

Botanical basket lined with copper

Stainless steel condensor

Stainless steel parrot and glass

Agitator with ATEX motor

Cip Pump with ATEX motor - hard piped to CIP spray balls

Frame and table to support column, botanical basket and condensor


distillery092

Copper and stainless steel material distilling equipment


Ancillary equipment:


hot wort grant to provide a buffer to the pump during reciculation and run off from the lauter tun

heat exchanger to cool the wash during transfer to the fermenter

hot water recovery option available

pumps

complete grain management including:

roller mills

augers and conveyors

grist hoppers

hydrators

CIP tanks and skid options

yeast brinks and propagators

boilers

glycol chillers
