| output: | |
|---|---|
| Heating : | |
| Insulation: | |
| Quantity: | |
We can customize stills according to your needs, with any size boiler or column diameter. The columns & condensers can be made with copper or stainless steel according to your needs.
The Picture is of our Jacketed, Steam Heated, and 1000L traditional type whisky Still. These 1000L Stills can be heated by Low Pressure Steam Boiler. This type of still is great for stripping, Rum, Brandy, Moonshine and Whiskey.

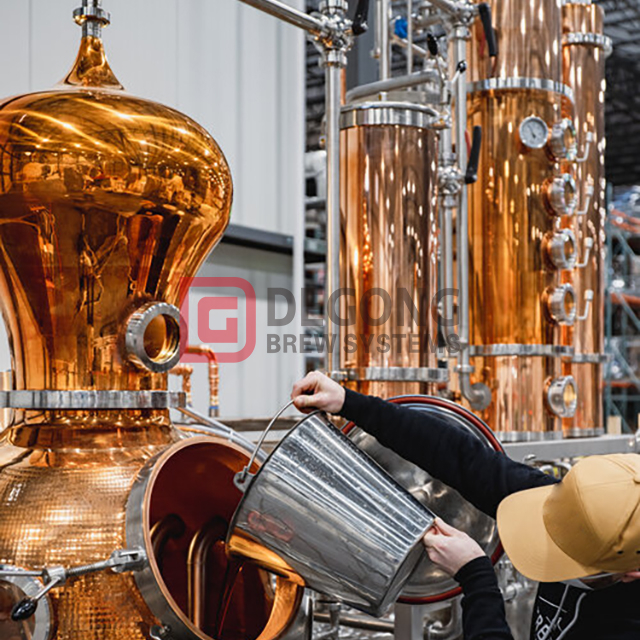

Copper still pot in distillery room
This Still comes standard with:
Pot Materials: Stainless steel 304 with copper pot
Agitator with long heavy blades for mash cooking
Italy brand gear box, NEMA standard for North American Market
Explosion proof motor, can be CE, UL, CSA approved
Low pressure steam jacketed heating
Large glass manway
Variety of customized copper whisky head
Large size Tube and Shell copper Condenser
Copper spirits safe
Coil type condenser
Spirits storage tank
Pressure Relief Valve and pressure gauge for inner boiler and jacket
PU insulation
Tri Clamp Butterfly Valve on the drain
CIP in the pot, whisky head and condenser
Stainless steel or copper parrot
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
Mirror Polish Inside
Swirl pattern outside, satin finish outside or mirror polish
CIP pump and CIP manifold is optional
Copper material still
| Pot Material: Stainless Steel 304, Red Copper T2 Type: 1. single layer ; 2. with heating jacket only; 3. with heating jacket & PU insulation. Accessories: thermometer, thermowell, pressure guage, pressure relief valve, inlet, outlet, breath valve, reflux hole, glass man hole, CIP ball, etc | Agitator Material: Stainless Steel 304, Union Connection, easy to installtion. Voltage: 208V/ 220V/ 240V/ 380V/415V/ 460V etc ( can supply voltage according to customer request, Exproof motor with CE/ UL / CSA certificate. |
Goose Neck / Vapor Chamber Material: Stainless Steel / Red Copper Have different shape for opition. | Gin Basket/ Botanical Basket Enhance flavor and extended the range of your system. For making Gin, Schnapps, etc. Material: Stainless Steel/ Red Copper Inside with removable filter basket, have different shape for opition. |
Distillation Column We can tailor the height and plate number for your specific application. The max height of column can reach 2000mm, up to 10 plates within a pair of flange. For 70-90%abv: 4~6 plates; for 88-95%abv: 6~20 plates | Bubble Tray / Bubble Cap The bubble tray intergrated within a tightly embedded inner shell, to avoid welding scar around the column. Bubble caps and screw are made of red copper, the screw with a no dead corner design, can 100% meet sanitary stand. |
| Dephlegmator A chilling apparatus (condenser) at the top of the reflux column. It's comprised of a bank of tubes with cold water running through them. This increase reflux, and the purity o f the distillate. Material: Red Copper / Stainless Steel 304L Structual tube type heat exchanger, with cooling water inlet and outlet with a sight glass (optional) and thermometer in the top. | Condenser A heat exchanger in which hot vapors are cooled and condensed into liquid. Material: Red Copper / Stainless Steel 304 Structural tube type heat exchanger; with cooling water inlet and outlet. With a thermometer. for stainless steel condenser, the surface can finished as scaled. |
CIP Pump & Pipe Fitting All stainless steel 304 pipe fitting with a Ex-proof centrifugal pump (UL/ CSA/ CE ) Have Hand Valve and Automatic Valve for opition. | Support leg All support are made of stainless steel 304 Can shaped as customers request. |
Alcohol Collecting Tank Used for storage spirit of head, heart and tails. Can do as different shape. Structure: Single layer | |
Superior stainless steel construction distilling machinery

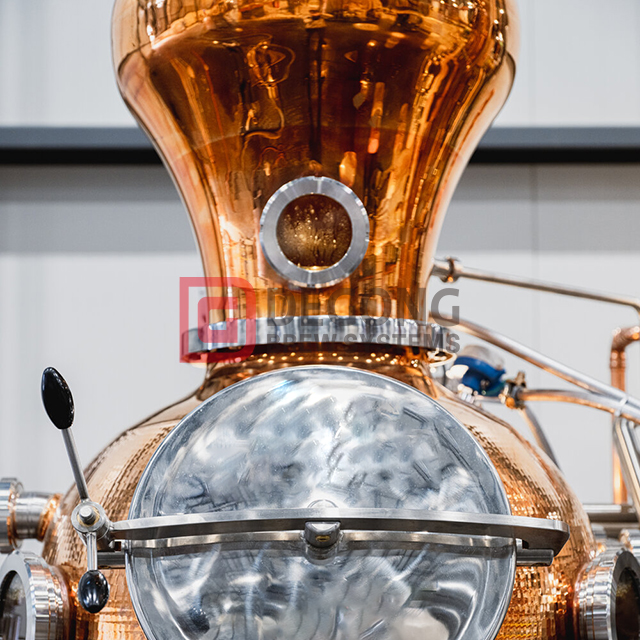

Goose Neck / Vapor Chamber
Contact me to get more information and offer!
