200L 300L 500L Beer Conical Fermenter Beer Fermentation Tank for Small Brewhouse

Degong equipment China, your reliable partner of brewing equipment. We create new and unexpected possibilities, providing customized solutions for your future!
Manhole of fermenter:
top manhole
side manhole
Polyurathane:
80mm
100mm
Control :
temperature
Availability:
Quantity:
Inquire Add to Basket

  • DGET-200L

  • DEGONG

  • 8438400000

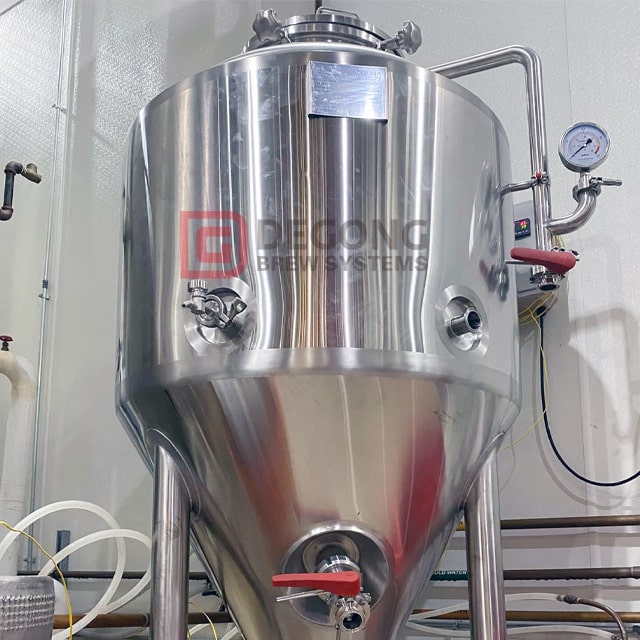

200L 300L 500L Beer fermentor

Completely customized according to the requirements of customer. Equipped with the thermometer to detect the temperature fermenter inside, more intuitive and clear. Beer outlet and drain port etc. are all made of high quality parts.


750 FV



Fermentation tank descriptaion

  • Dome top and cone bottom;bottom cone 60 degree

  • Interior Shell:SUS304,thickness:3.0mm

  • Exterior Shell: SUS304,thickness:2.0mm

  • Insulation:Polyurethane, thickness:100mm

  • 100%TIG welding with pure argon gas shield

  • Interior Fish:Overall polishing to 0.4~0.6µm without dead corner

  • Cooling jacket:both on cone and cylinder parts

  • Cooling media: glycol water

  • Test pressure:0.3Mpa,Working pressure:0.2Mpa

  • Rotating racking arm on cone with butterfly valve

  • Thermowell with high accuracy temperature sensor:PT100

  • 3 Legs with height adjustable pad


750FV-min


750FV-min


Options:

Carbonation stone

Dry hopping port on top


750FV 细节-min


 If you have interest, please feel free to contact me.
