Brewery Equipment Vendors 10bbl Beer Fermenters Brewpub Equipment

The design and fabrication are both following what is more suitable for local requests, to make sure client has less extra cost on other issues when running the brewery. We make operating the system for brewing easier and more efficient the priority, meanwhile we try our best to lower the cost of materials and save energy, to help all clients all over the world find the best balance between investment and income.

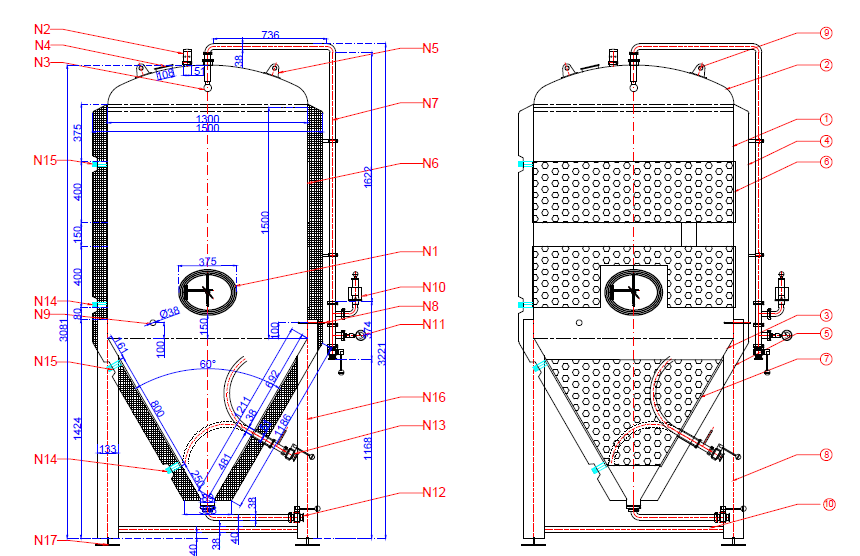

Brewery fermenters for beer

Specifications:

• SUS 304 material insulated tank.

• 100% TIG welding with pure argon gas.

• 0.3 Mpa test pressure. 0.15 Mpa working pressure.

• Dimple cooling jacket, side and cone of the tank. NPT connection.

• Top relief valve(PVRV), Top dry hopping port.

• Sanitary side manway (top for option).

• Sample valve. Pressure valve, Co2 relief valve, DIN/TC racking arm.

• 60 degree cone.carbonation stone,

• Level tube, CIP pipe, Blow Off pipe,

• 24V solenoid valve.Dial Thermometer. RTD sensor.

• Stainless steel 304 butterfly valve.(DIN, Tri-clamp)

Custom 10bbl beer fermenters

Optional:

● Bottling line range from 500-2000bph.

● Kegging unit: Keg filler & keg washer, or combined machine

Our 10 bbl Brewing System is a production-scale brewing system that brings your beer to market. If you're planning to build a medium to large brewpub, microbrewery, brewery or distribution center, this 10-barrel multi-vessel beer brewing system be very suitable for you.
