100L 200L Brewing System Pilot Systems Brew House DEGONG Manufacturer

Pilot brew Systems Purpose – Imitation of performance of larger brewing systems, in order to perform tests, demonstrations and to serve educational purposes or occasionally hobbyists.
Function:
Thickness of material (mm):
Availability:
Quantity:
  • DEGONG 100lL 200L

  • DEGONG

  • 8438400000


brewing system

100L 200L Pilot Beer Brew Systems


Purpose – Imitation of performance of larger brewing systems, in order to perform tests, demonstrations and to serve educational purposes or occasionally hobbyists.


Batch Size – For the time being, 50 liter to 200 liter.

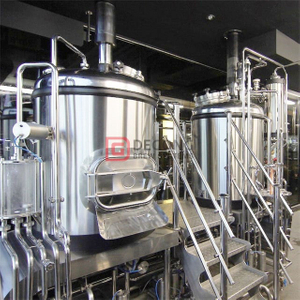

Brewhouse Design – Steam heated three vessels brew house. The prototype design has a Mash Kettle with a variable speed agitator and steam jackets regulated by temperature controller. Dedicated Mash Pump transfers mash into a Lauter Tun. Single runoff outlet below the false bottom. Sparging through a stationary spray ball. Variable speed rakes and knives.Brew Kettle with multiple steam jackets for controlled and rolling boil. Built-in Whirlpool to separate wort from trub. Single stage Heat Exchanger. Two- or four vessels design is also possible.




spent grain hathch

Spent grain hatch for moving


Configuration – The brew house comes with at least one cylindroconical temperature controlled fermenter (unitank) and one dish-to-dish temperature controlled bright/lagering tank. More fermenters and bright tanks can be added. Modular design with frames on wheels.


Automation – The system is automated from heating of mashing water to whirlpool. Manual and semi-automatic design available.


tank inside

Inside of brewing vessels



Aesthetic Design – Vessels are copper clad, arranged in a pleasing manner with pumps, process piping, control panel.


Pricing – Depends on batch size, configuration of brew house, number of tanks, type of cladding and the level of automation.
