DGET- 2000L 3000L 5000L
DGET
8438400000
DEGONG Beer Fermentation tank
Fermentation tank are typical brewery tanks that are designed especially for production of beer. They are designed to fermentation of alcoholic beverages under pressure. In pressure version, the tanks are available also for secondary fermentation process (maturation of beverage under pressure). In this case, it is possible to use them also as serving tanks (bright beer tanks – BBT)
Different types of beer have different fermentation cycles. So when recommending the number of fermentation tanks, in addition to the annual or monthly output, we also need what type of beer you brew or the fermentation cycle.

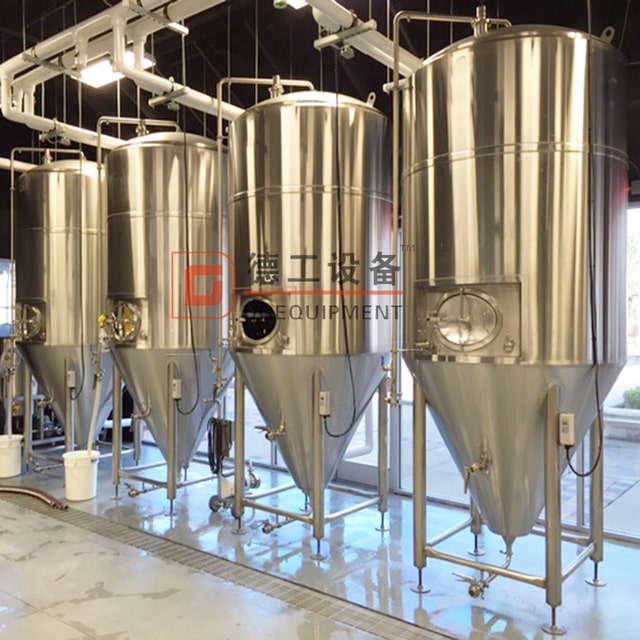

Vertical beer fermentation tank

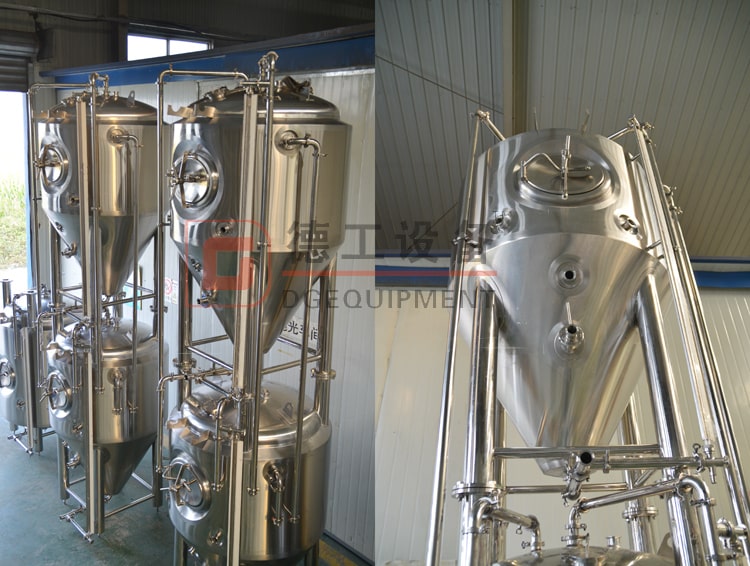

Stackable fermentation tank
Fermentation tank FEATURES-Take 2000L fermenter as a reference
Specifications: All AISI-304 Stainless Steel Construction Jacketed & Insulated Dual Zone Dimple Cooling Jacket Dish Top & 60° Conical Bottom 4 Stainless Steel Legs with Leveling Ports Working Capacity: 2000L Total capacity:2500L Inner Diameter: 1300 mm Outside Diameter: 1500 mm PU Insulation: 100mm Total Height: 3150 mm Dimension: L x W x H 1500 x 1500 x 3150 mm Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm Cladding: 1.5 mm | 2000L Fermenter Includes: Top Manway or Side Shadow less Manway Racking Port with Tri-Clover Butterfly Valve Discharge Port with Tri-Clover Butterfly Valve Tri-Clover Outlets with Butterfly Valves CIP Arm and Spray Ball Hops addling port Sample Valve Pressure Gauge Safety Valve(Apunding valve and pressure release valve) Thermowell with Tank Thermometer Carbonation stone valve Level gauge(Optional) All fittings, clamps, and valves are included with tank. |

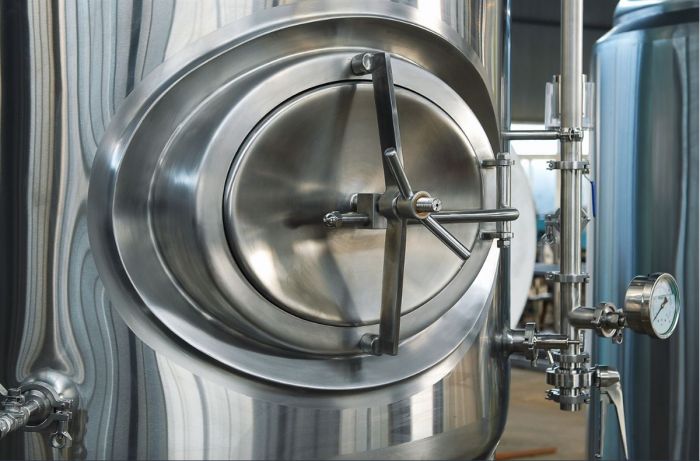

Side manhole

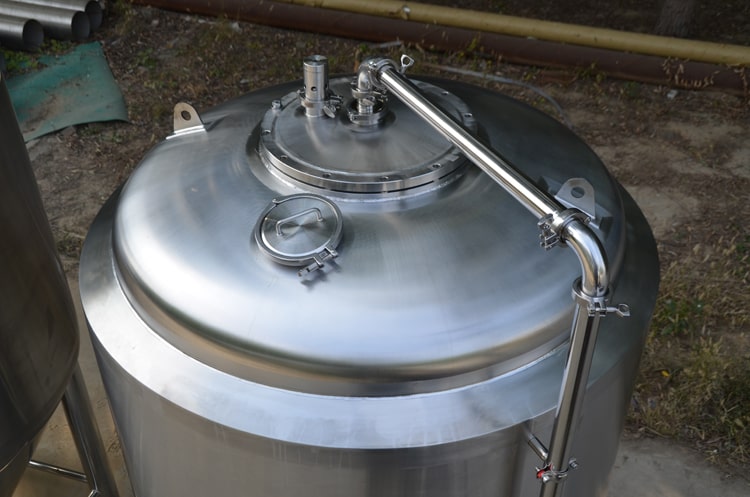

Top manhole
Accessories on fermentation tank
Company information
DEGONG Beer Fermentation tank
Fermentation tank are typical brewery tanks that are designed especially for production of beer. They are designed to fermentation of alcoholic beverages under pressure. In pressure version, the tanks are available also for secondary fermentation process (maturation of beverage under pressure). In this case, it is possible to use them also as serving tanks (bright beer tanks – BBT)
Different types of beer have different fermentation cycles. So when recommending the number of fermentation tanks, in addition to the annual or monthly output, we also need what type of beer you brew or the fermentation cycle.
Vertical beer fermentation tank
Stackable fermentation tank
Fermentation tank FEATURES-Take 2000L fermenter as a reference
Specifications: All AISI-304 Stainless Steel Construction Jacketed & Insulated Dual Zone Dimple Cooling Jacket Dish Top & 60° Conical Bottom 4 Stainless Steel Legs with Leveling Ports Working Capacity: 2000L Total capacity:2500L Inner Diameter: 1300 mm Outside Diameter: 1500 mm PU Insulation: 100mm Total Height: 3150 mm Dimension: L x W x H 1500 x 1500 x 3150 mm Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm Cladding: 1.5 mm | 2000L Fermenter Includes: Top Manway or Side Shadow less Manway Racking Port with Tri-Clover Butterfly Valve Discharge Port with Tri-Clover Butterfly Valve Tri-Clover Outlets with Butterfly Valves CIP Arm and Spray Ball Hops addling port Sample Valve Pressure Gauge Safety Valve(Apunding valve and pressure release valve) Thermowell with Tank Thermometer Carbonation stone valve Level gauge(Optional) All fittings, clamps, and valves are included with tank. |
