10BBL Stainless Steel Conical Dimple Jacket Beer Fermentation Tank with Cooling Zone
Home » Brewery Equipment » Fermentation Vessels » 10BBL Stainless Steel Conical Dimple Jacket Beer Fermentation Tank with Cooling Zone

Product Detail

Share to:

10BBL Stainless Steel Conical Dimple Jacket Beer Fermentation Tank with Cooling Zone

10BBL Stainless Steel Conical Dimple Jacket Beer Fermentation Tank is a type fermenter that many customer will choose.It is not only suitable to commercial brewery but also suitable to restaurant.The fermentation tank will be controled by control panel and it will cool automatically/.......

Material:
Size:
Material thickness:
Outer:
inner shell:
Quantity:
  • DGET-10BBL
  • DGET
  • 8438400000


Fermentation is a process that the cold wort ferment in fermentation tank.And it need to add yeast and oxygen before going into fermentation tank.Therefore,it is a crucial step in the whole brewing process.Meanwhile, fermentation is an ongoing process and it need to keep temperature in a certain temperature,so it is very important to master the fermentation temperature. In addition, different beer has different fermentation temperature.That is to say,the temperature required for the top fermentation is about 18 to 22 degrees, and the temperature required for the bottom fermentation is about 8 to 12 degree. The types of yeast of top fermentation and bottom fermentation are different, so the by-products produced are also different. So the taste and smell of these two beer are very different.For example, ale with less carbonic acid and rich in flavor,however lager is very soft, more carbonated and more refreshing.

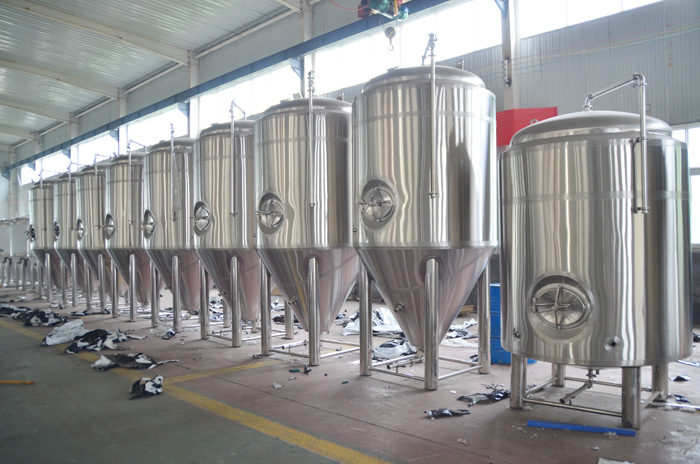

DSC_8641

fermenter2


Technical parameter of dimple jacket beer fermentation tank
100% food-grade 304 and 316 stainless steel
All fermenters are rated to 0.15MPa (1.5 bar) operating pressure
Two-zone glycol jacketing,and 60-degree conical cone
Top-mount manway (Meanwhile optional side-mount configurations available)
Complete thermal insulation of side walls and cones
All insulation is fire retardant fiber cloth (not foam)
All welds are blended and finished to a sanitary food-grade finish
Every fermenter is equipped with:

racking arm

pressure relief valve

blow-off/ clean-in-place (CIP) tube

CIP spray ball

sample valve

butterfly valves

TC clamps, gaskets and clamps

90-degree elbows

optional rupture disc assemblies available


Features of beer fermentation tank
– Certificated sanitary food grade SS304
– High quality valves & components
– Dual cooling areas which is easy to operate and good for saving energy
– Our fermenter is easy to maintain, operate.
– Saving time and labor
– All fermentation tanks should pass the tank leakage test before leaving our factory
– Carbonation stone port is assembled on fermentation tank for special use
– With dry hopping at the top of fermenter
– Fine welding seams treatment- More economical and competitive
– Completely customizable as requested
– CE, ISO, TUV approval for our fermentation tank
– With tubular level meter for special use
– Novel structure and attractive appearance
– More humanized design



QQ图片20191031150919


If you have interest,please get in touch with me freely.

Auril







1.We will delivery in time after receiving the deposit.

2.If the quantity of your equipment is rarely enough to use a full container, we will use a wooden box to package the equipment for shipment to avoid damaging  during the shipment transport. If you the equipment quantity is large, we will try to design the most reasonable loading method to save your space, so reduce the number of container and save shipping costs.


1222


DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.

DEGONG was established at 2009, and we are world-renowned for professional beer equipment manufacturing and wine equipment manufacturing. We research and develop beer brewing system and beer bottling machine independently from 2012, and we have developed overseas market successfully.

Now we have established sales services network of more than 10 core agents,more than 100 distributors and project contractor. We have finished thousands of project.


1.Service

Before make order:We will provide most professional suggestions according to your specific condition.

After delivery:Our engineer will go to install equipment and teach how to brew beer


2.Exhibition

We attend exhibtion all around the world to show our equipment to more customer.


3.Production

We have the most professional production team.Our workers have  very rich experience in the production of beer equipment.We have professional brewer who can give the most professional advice to meet the different needs of customers

4.Certification

Our equipment has obtained ISO,CE and TUV certification
