The fermentation tank is the place where alcohol is finally produced. The size and number of fermentation tank determine the final output of the brewery. Fermentation tanks are generally as large as the brewhouse or twice as large as the brewhouse. But for large brewery that can produce multiple batches per day, the fermentation tank can also be several times the size of the brewhouse.

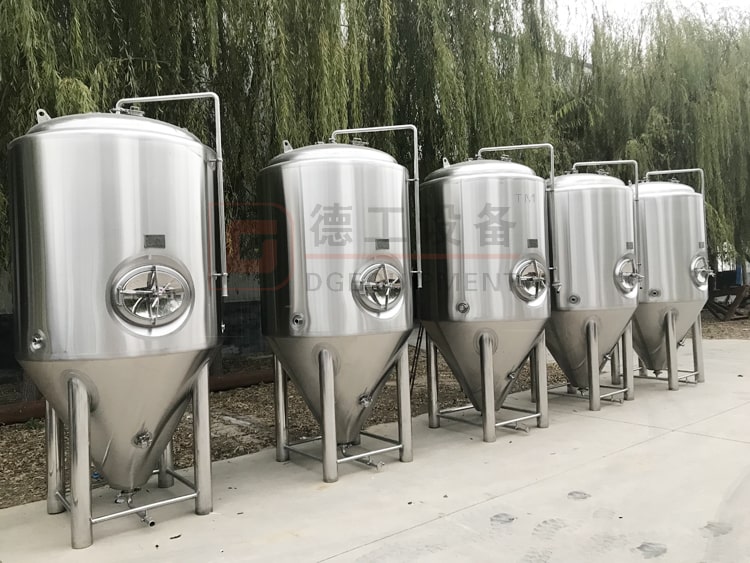

Beer fermentation tank are typical brewery tanks that are designed especially for production of alcoholic beverages like beer.It can be Non-jacketed and jacketed beer fermentation tanks.
Technical parameter:
All AISI-304 Stainless Steel Construction
Jacketed & Insulated
Dual Zone Dimple Cooling Jacket
Dish Top & 60° Conical Bottom
4 Stainless Steel Legs with Leveling Ports
Working Capacity: 1000L
Total capacity:1300L
Inner Diameter: 1100 mm
Outside Diameter: 1300 mm
PU Insulation: 100mm
Cylindrical Height: 1100 mm
Total Height: 2550 mm
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm Cladding: 1.5 mm

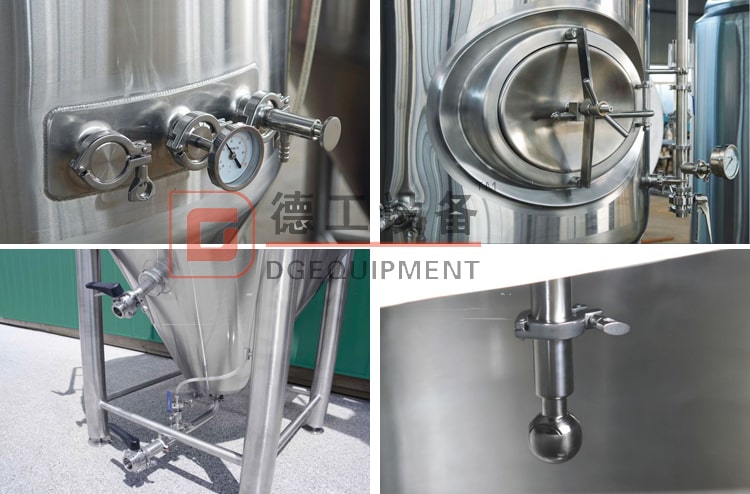

Accessories on tank:
Top dished head with pressure vacuum relief valve
Top manway or side shadowless manhole
Dry Hopping port with cap
Sanitary rotary spray ball
PU foam insulated
Carbonating stone for CO2
Cooling jacket on cylinder and cone bottom
Side CIP arm assembly with bung valve and pressure gauge
Sanitary thermowell
Sample valves
Cone racking arm
Bottom discharge
Four legs adjustable feet, optional for anti-seismic
Internal shell finish: 2B, External Shell #4
If you have interest in DEGONG beer brewing equipment,welcome to contact me freely
