Hot Product 3000L Stainless Steel Beer Brewery Equipment Industrial Brewery 3-4vessel Brewhouse System

3000l brewery equipment is big for craft beer business. It is usually equipped with 6000L fermentation tank and it is also usually fill kegs, cans and bottles. So that it can sell to different market and doesn’t need a big filling line.
We strongly recommend cold water tank and double layers head for fermenter. This really help save much money, due to it brews much and it usually stores for long time.
For brewhouse, 4 vessels brewhouse is most recommend. It is easy to brew 2 batches or 3 batches per day. Increase production capacity easily.

Material:
Insulation:
Fermentation tank coolinig:
Heating method:
Certificate:
Quantity:
  • DGET-3000L
  • DGET
  • 8438400000

                                                     3000L beer brewery equipment overview

Malt milling machine

  • Particle adjustable rolling crusher

  • Flexible or steel auger to directly lift the milled grain to mash tun


3000L brewhouse main features

Heating method: steam heating

Hot &cold water recycle for saving energy

Automatic lifting agitator and raker system

Automatic agitator and raker system for maxing and spent grain .

Famous brand for pump and steam boiler.

Mash pipe has no dead corner for easy cleaning and brewing.

Continue production, 3-4batches per times.

Semi-Automatic or full automatic control system for optional.

3000L brewhouse advantages

Good abrasion resistance material

  • Inner-Jacket(SUS304)thickness: 3.0mm

  • External-Jacket thickness: 2.0mm

  • Seal head thickness: 3.0mm

High quality insulation effect

Polyurethane thickness: 80mm

Beautiful weld and polish technology

All argon gas protection welding. Polishing precision up to Ra0.6µm.

Powerful technology supporting

Providing drawing of every tank and drawing the layout of the whole project according with customer's workshop

World's top brands' electronic components

For example, we use Siemens PLC and touch screen, Schneider button of circuit breaker and other pneumatic parts, etc.

Internal heating system to increase boiling intensity

4-vessel -min

750BW 细节-min

ring&spary cleaning ball&spent grains hatch&raker&sight glass


Fermentation system

Technical characteristics:

  • All 304 Stainless Steel Construction

  • Jacketed & Insulated

  • Dual Zone Dimple Cooling Jacket

  • Dish Top & 60° Conical Bottom

  • 4 Stainless Steel Legs with Leveling Ports



Specifications:

  • Working Capacity: 300L, 6000L, 9000L

  • Inner Diameter: Customized

  • PU Insulation: 60-100mm

  • Outside Diameter: Customized

  • Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm



Fermenter Includes:

  • Top Manway or Side Shadow less Manway

  • Racking Port with Tri-clamp Butterfly Valve

  • Discharge Port with Tri-clamp Butterfly Valve

  • 2 Tri-clamp Outlets with Butterfly Valves

  • CIP Arm and Spray Ball

  • Sample Valve

  • Pressure Gauge

  • Safety Valve

  • Thermowell

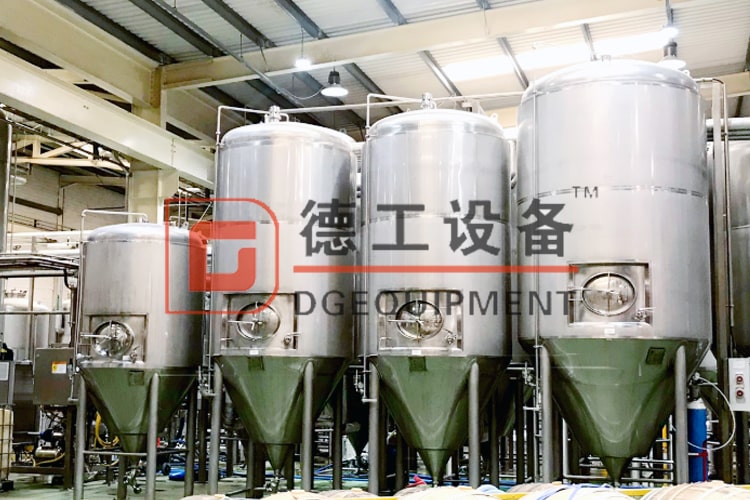

750 Fv 2-min

fermentation tanks


Cooling system

Insulated glycol water tank and cold water tank

Efficiency chillers or refrigerators with fryon to supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials are included

glycol system_副本

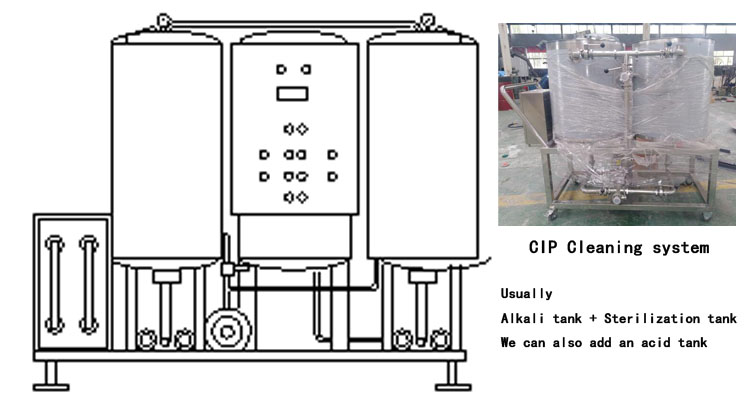

 CIP system

Material SS304, Thickness for tank 2mm

Tank amount: Sterilization tank, Acid tank, Alkali liquor tank

Separate control for CIP unit.

CIP cleaning system


 Control system

PLC with touch screen panel and Industrial computer control system

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Electrical controlling cabinet with temperature, on-off controlling for fermenter automatic.

Temperature controller, thermocouple, solenoid valves etc are included

CONTROL SYSTEM
