DGET-15BBL
DGET
8438400000

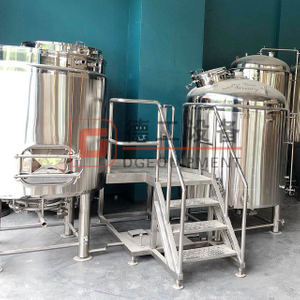

| 1500L beer brewhouse system description |
mash system for microbrewery equipment
All stainless steel T-304 construction, dished top and bottom.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Mash mixer motor and gear box assembly installed on top of unit.
Features to include:
motor with VFD installed.
Auto mash out assembly to include
Removable mash-out chute discharging to your remote waste tub.
Internal mash grid assembly with wedge wire removable screens for ease of cleaning.
Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
leg assembly with standard anchor pads.
polyurethane insulation with polished stainless steel outer shell.
Optional: hydrator for installing a grist hopper feed.
all stainless steel T-304 construction, dished top and bottom.
leg assembly with standard anchor pads.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internally mounted/removable trub dam.
Internally mounted ladder assembly for easy cleaning access.
Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
Thermowell installed for measuring temperature in brew kettle.
Fully welded steam jackets with rear protruding steam/condensate nipples.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
sealed top man door access.
Thermo-well installed for temperature probe.
leg assembly with standard anchor pads.
polyurethane insulation with polished stainless steel outer shell.
Hot water tank pump as a motor with all stainless steel recirculation piping installed to ensure consistent strike water temperatures.
Stainless steel work platform with handrails provided
Fully welded sanitary process piping package including:
All Sanitary Gaskets
Butterfly Valves
Site Glasses
Tri-Clamps
Pump mounted to the bottom of the access platform and complete with all piping connections.
Temperature readout for the mash tun, brew kettle & HLT.
Automated temperature control for the HLT.
VFD controller for the mash tun motor assembly.
VFD for main transfer pump.
Float switch controllers for the grant / hop back.
VFD for the hot liquor tank pump.
On/Off/Auto switch for the transfer pump assembly.
Wiring diagram for operation of this system.

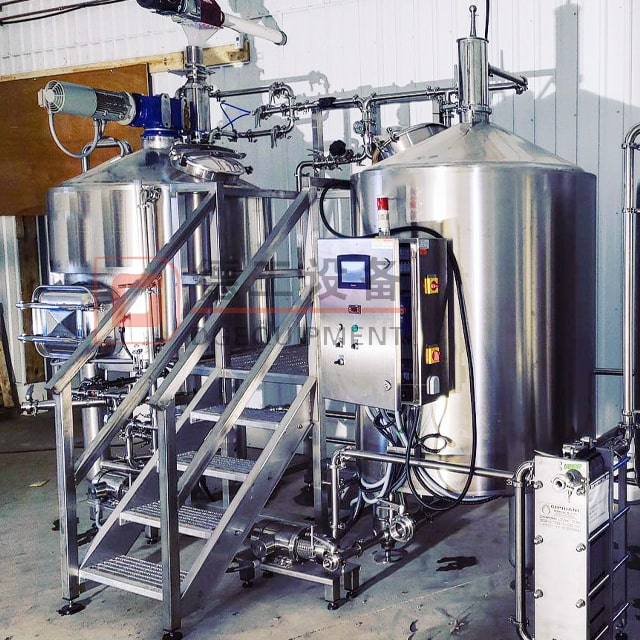

the mash system is running details

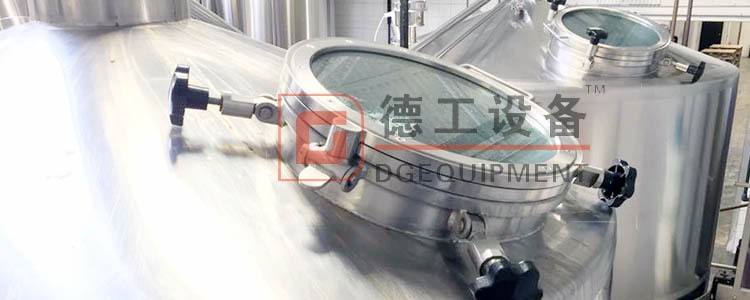

top glass manhole
two stage sus plate heat exchanger
raker
stainless steel operation plateform
