| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| Manhole: | |
| Quantity: | |
DGET-2000L
DGET
8438400000
2000L 3-vessel brewhouse system description |
Mash tun
Low pressure steam jacket with PLC controlled temperature control for optimum profile capability
VFD speed and function controlled, custom engineering mash mixer for low sheer, efficient mash mixing designed to handle high gravity brews
Lauter tun
Integrated, VFD speed and function controlled rake system designed to cut and lift grain bed to maximize extract yield, reduce lautering time and automate grain out processes
Custom designed wedge wire false bottom designed to maximize yield and minimize grain pass-through
Grain out access manway for easy and efficient grain out processing
Multipoint wort collection design for uniform bed formation and high yield extract collection
boiling/whirlpool tun
with integrated steam jacket and temperature control
Custom designed vessel optimized for rapid boiling and efficient and high yield trub separation
Low pressure steam jacket with PLC controlled temperature control for efficient and vigorous boil control
Tangential inlet for proper centrifugal force for efficient trub separation
316L Sanitary Pumps with VFD Controls
316L Stainless Steel Plate Heat Exchanger
Manual Sanitary Butterfly Valves
Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions

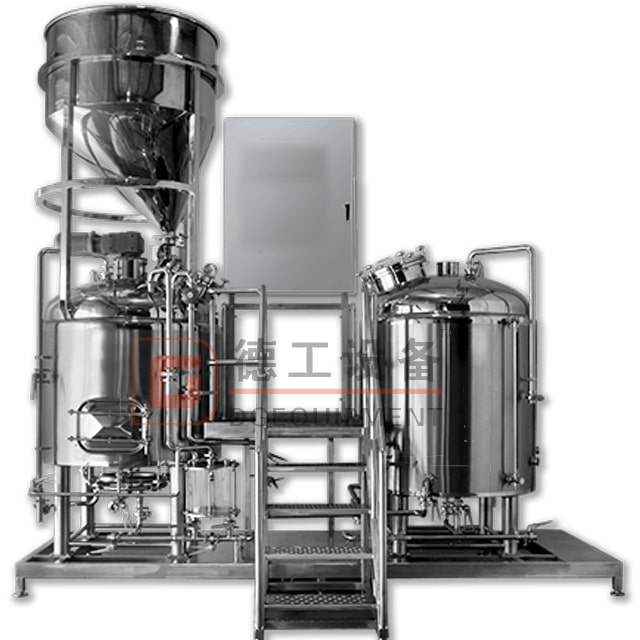

2000L 3-vessel brewhouse system
| Fermentation system description |
Our range of hygienic Jacketed Conical Fermentation Tanks (Beer Fermenters) are available from 1 Barrel to 100 Barrels.
The conical fermentation tanks have a dish top with a cylindrical body. The 60 Degree conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast.
All tanks are food-grade stainless steel 304 with a 3 mm thickness for 3BBL-70BBL, while larger tanks have a 4 mm thickness.
The cooling system is a dimple jacket tested to 6 bar with a working pressure of 5 bar and the tanks are insulated with high-density polyurethane.
All tanks are designed for up to 15 PSI (internal pressure) and tested at 30 PSI.
stainless steel fermentation tanks
2000L 3-vessel brewhouse system description |
Mash tun
Low pressure steam jacket with PLC controlled temperature control for optimum profile capability
VFD speed and function controlled, custom engineering mash mixer for low sheer, efficient mash mixing designed to handle high gravity brews
Lauter tun
Integrated, VFD speed and function controlled rake system designed to cut and lift grain bed to maximize extract yield, reduce lautering time and automate grain out processes
Custom designed wedge wire false bottom designed to maximize yield and minimize grain pass-through
Grain out access manway for easy and efficient grain out processing
Multipoint wort collection design for uniform bed formation and high yield extract collection
boiling/whirlpool tun
with integrated steam jacket and temperature control
Custom designed vessel optimized for rapid boiling and efficient and high yield trub separation
Low pressure steam jacket with PLC controlled temperature control for efficient and vigorous boil control
Tangential inlet for proper centrifugal force for efficient trub separation
316L Sanitary Pumps with VFD Controls
316L Stainless Steel Plate Heat Exchanger
Manual Sanitary Butterfly Valves
Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions
2000L 3-vessel brewhouse system
| Fermentation system description |
Our range of hygienic Jacketed Conical Fermentation Tanks (Beer Fermenters) are available from 1 Barrel to 100 Barrels.
The conical fermentation tanks have a dish top with a cylindrical body. The 60 Degree conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast.
All tanks are food-grade stainless steel 304 with a 3 mm thickness for 3BBL-70BBL, while larger tanks have a 4 mm thickness.
The cooling system is a dimple jacket tested to 6 bar with a working pressure of 5 bar and the tanks are insulated with high-density polyurethane.
All tanks are designed for up to 15 PSI (internal pressure) and tested at 30 PSI.
stainless steel fermentation tanks
