Fully Automatic Pure Water Bottling Machine / Beer Filling Machine in China
Home » Brewery Equipment » Glass Bottling Systems » Fully Automatic Pure Water Bottling Machine / Beer Filling Machine in China

Product Detail

Share to:

Fully Automatic Pure Water Bottling Machine / Beer Filling Machine in China

Our beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies. It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt MITSUBISHI automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process.

Quantity:
  • DG-Bottling equipment
  • DEGONGET
  • 8438400000
Product description



This machine is specially made for all kinds of  liquid in food industry or mechanical industry  , such as sauce ketchup, tomato sauce, jam, honey, shampoo etc . All the contacted part with the product is high quality stainless steel.. The machine adopts piston pump for filling. By adjusting the position pump, it can fill all of the bottles in one filling machine, with quick speed and high precision.



1.  Use automatic volumetric piston pump executive filling ,it is applicable for various liquid or semiliquid filling ,high precision; fast disassembly institutions of pump ,easy to clean and disinfect.

2. PLC control system,frequency control,high degree of automation.

3. No bottles not filling automatic counting functions.

4. Filling capacity is easy to adjust ,all metering pump filling quantity can be adjusted one time , can also be aimed at each pump on micr measurement adjustment .Simple operation and quick adjustment.

5. Filling head equipped with pneumatic drip tight device.

6. Cap-screwing use magnetic moment capping , permanent use and adjust torque is convenient.

7. Capping bottles use bottle diving plate localization ,capping perfectly and changing bottle model is convenient.

8. The machine can be used for various specifications of bottles, adjust the simple, can be finished in a short time.

9. The design of machine according to GMP requirement.


Technical parameters


Item

Degong's beer / mineral / carbonated drink bottling machine for sale

Filling nozzles

2,4,6,8,10,12,14 and 16

Filling system

Piston pump

Filling range

1-5000ml

Filling speed

200-6000b/h

Filling precision

±0.5-1%

Yied of capping

99%

Power

220/380V 50/60Hz 1.2Kw

Air pressure range

0.4-0.6Mpa

Weight

800Kg

Machine size

L2500*W1200*H1800 (L*W*Hmm)

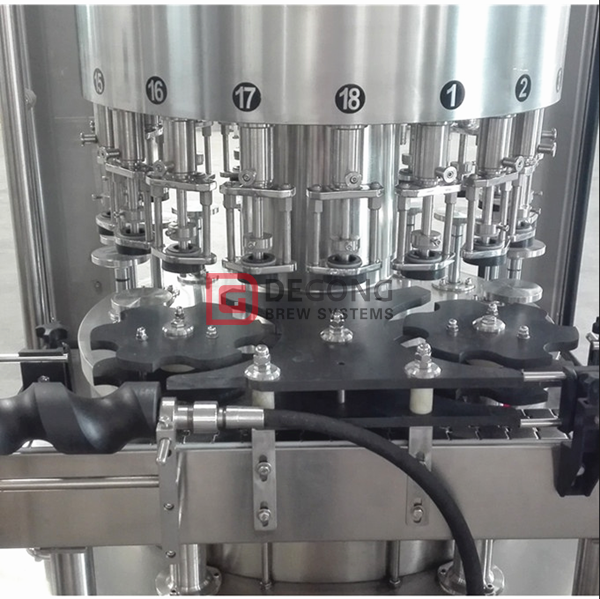

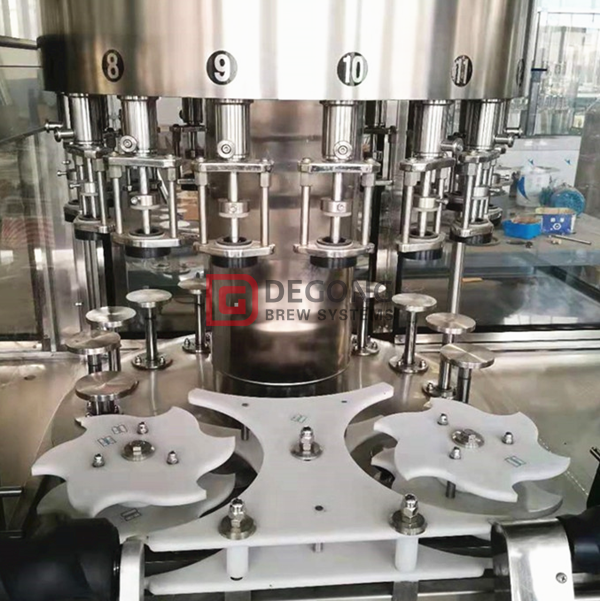

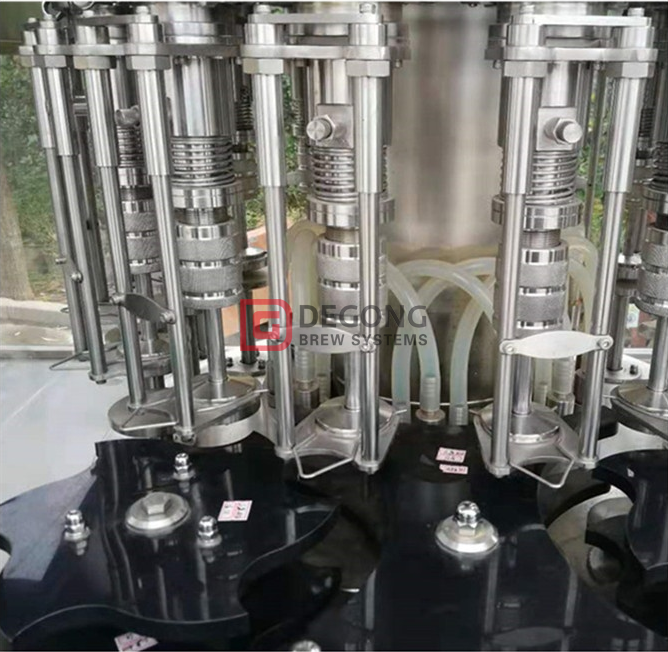

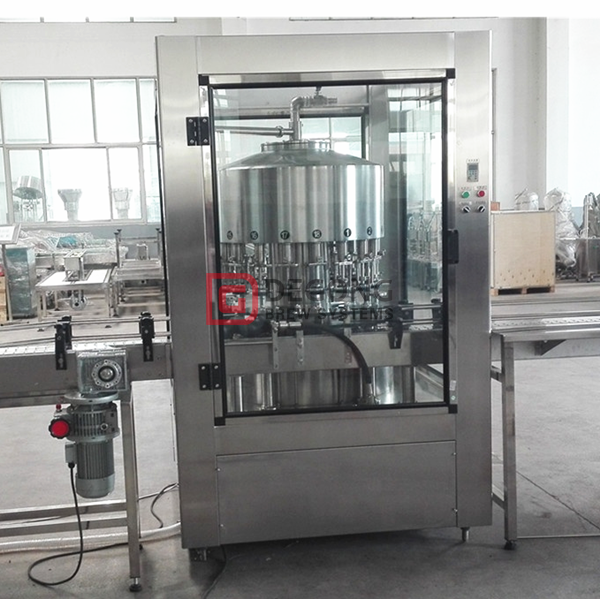

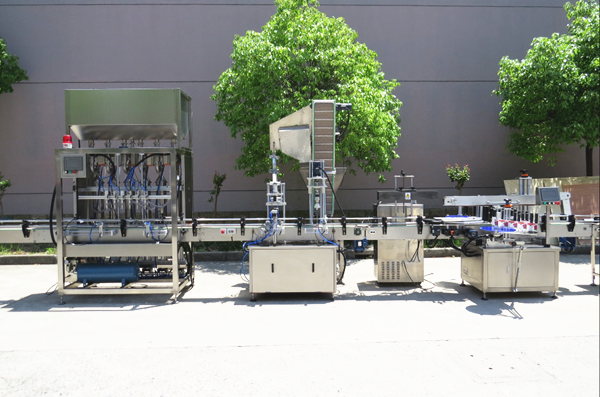

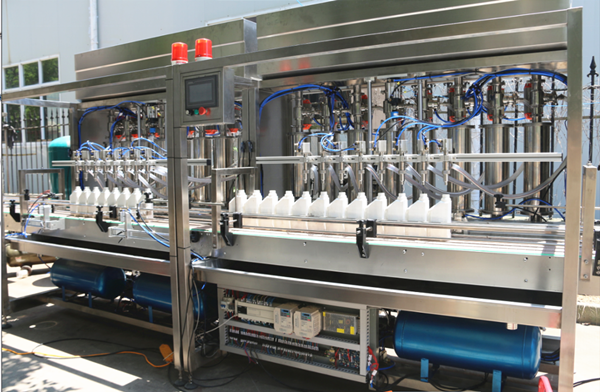

Pictures show






Our services


1. The sample service
we can send you the video of the running machine
you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.


2. Customized service
we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.


3. After-sales service
we will provide the bill of load on time to make sure you can get the machine quickly
when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
we provide one year warranty with spare parts free.


Contact us


Zhe


FAQ


Q:Are you a manufacturer or trade company?

A:We are a manufacturer in beverage machine field more than 15 years, located at Leyu town,zhangjiagang,2 hours from Shanghai,1 hour from Wuxi by car. We will pick you up to visit our factory.



Q:Do you have any certification?

A:SGS,ISO,CE



Q:What about the delivery time?

A:Usually 40 Working days



Q:What about the machine’s capacity?
A:2000-20000 bottles in 500ml per hour.



Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.



Q: If I want to buy a machine, what information do I need to tell you, do you need from me?
A:a. What kind beverage you want to produce?
   b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
   c. Producing capacity requirement? How many bottles per hour?
   d.Raw water analysis report .
   e.Voltage and altitude.
