Product introduction of Beer Filling Machine

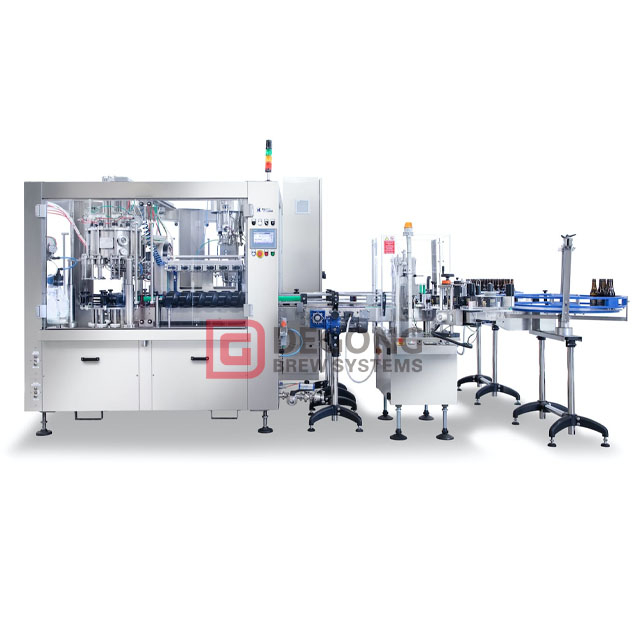

The beer filling machine is a fully automatic counterpressure rinser-filler-capper system capable of up to 1,000 bottles per hour for 330ml containers, designed for glass bottles, aluminium cans, and aluminium bottles. Constructed with stainless steel, it supports low TPO filling to maintain beverage quality and carbonation integrity. The machine solves issues of inconsistent fill levels, oxygen contamination, and slow manual operation. Suitable for breweries, cider producers, sparkling wine manufacturers, kombucha producers, and carbonated soft drink factories, it offers high-speed, accurate, and hygienic bottling for small to medium-scale beverage production.

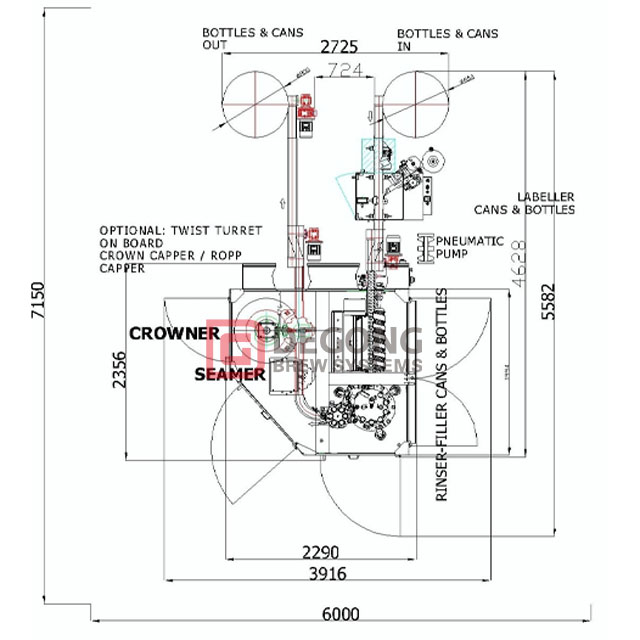

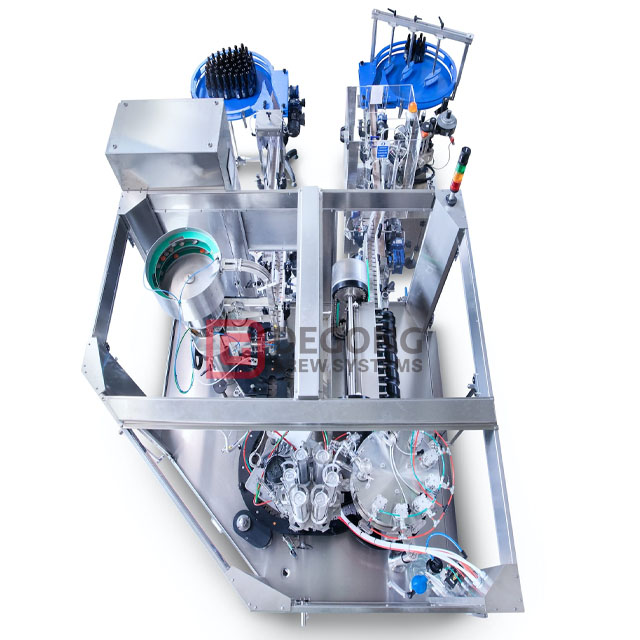

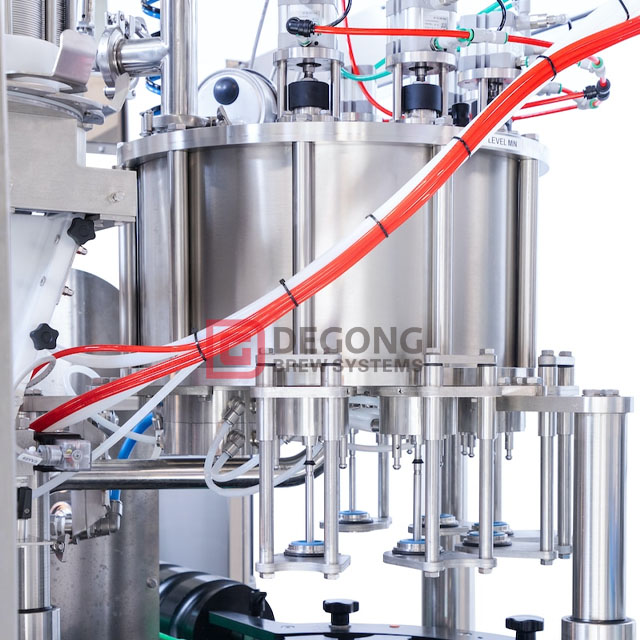

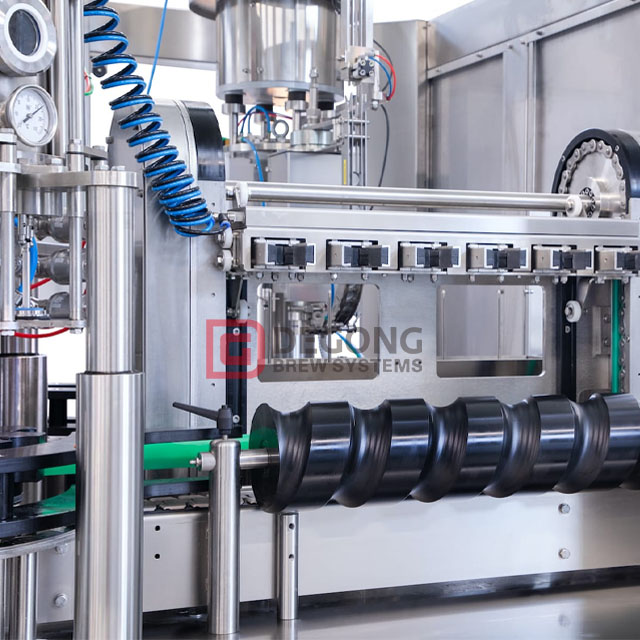

Bottles are conveyed into the rinser section, where photocell detection ensures only present bottles are rinsed. Counterpressure filling valves accurately fill carbonated beverages with low oxygen pickup, while electro-pneumatic valves control vacuum and degassing timings for each drink type. After filling, bottles move to the capping station, where crown corks, screw caps, or other closures are applied. The system is driven by servo motors with PLC and touchscreen HMI for synchronized, precise operation. Stainless steel construction and hygienic design allow easy cleaning and reliable production.
Product Parameter Table
Filling Capacity | Up to 1 000 bottles/h (330ml, depending on product) |
Bottle Type | Glass bottles, aluminium cans, aluminium bottles |
Bottle Height Range | 180 – 340 mm |
Filling Method | Counterpressure, low oxygen pick-up, electro-pneumatic valve (EPV) |
Number of Filling Heads | 6 – 14 heads (depending on model) |
Rinsing Nozzles | 6 linear rinser nozzles |
Capping Type | Crown cork, screw cap, mushroom cork, natural cork, can lid seamer (optional) |
Capping Heads | Single head Crowning Turret (other cap types available) |
Construction Material | 304 stainless steel standard; 316 stainless steel optional for corrosive liquids |
Control System | PLC with 7" colour HMI touchscreen; IoT remote monitoring optional |
Power Supply | Typically 380 V/50 Hz, 3-phase (customizable) |
Main Features
Counterpressure filling with low oxygen pick-up preserves carbonation and beverage quality
Electro-pneumatic valves allow precise cycle adjustment for different carbonated drinks
Handles glass bottles, aluminium cans, and aluminium bottles efficiently
User-friendly HMI touchscreen with PLC enables flexible, automated operation
Photocell bottle detection ensures safety and prevents unnecessary machine operation
Stainless steel construction provides hygienic, easy-to-clean bottling system
Application Scenarios
Beer, cider, and sparkling wine bottling in breweries
Kombucha and carbonated soft drink production lines
Glass bottle, aluminium can, and aluminium bottle filling operations
Small to medium brewery bottling and packaging systems
Beverage factories requiring low oxygen, high precision filling solutions
Carbonated and still beverage bottling with crown, screw, or cork caps
Q1: What types of bottles can this machine fill?
A: It supports glass bottles, aluminium cans, and aluminium bottles.
Q2: Can it handle different carbonated drinks?
A: Yes, electro-pneumatic valves adapt vacuum filling and degassing for various beverages.
Q3: How is beverage quality maintained?
A: Counterpressure filling and low TPO ensure minimal oxygen pick-up and foam.
Q4: What fill speed is achievable?
A: Up to 1,000 bottles per hour for 330ml containers, depending on beverage type.
Q5: Is it suitable for different cap types?
A: Yes, crown corks, screw caps, mushroom corks, and can lids are supported.
Q6: How is hygiene ensured?
A: Stainless steel construction, CIP capability, and easy-to-clean design maintain hygiene standards.
