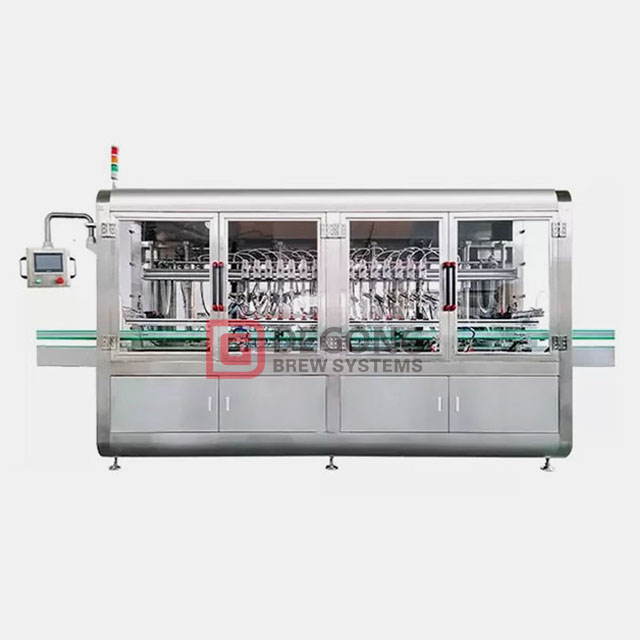

14 Head Overflow Filling Machine For Continuous Liquid Bottling

14 Heads Overflow Filling Machine Product Introduction

This 14 Head Overflow Filling Machine is a fully automatic system designed for precise filling of low to medium-viscosity liquids in bottles, including glass and plastic containers. Constructed with 304 stainless steel (316 optional) and GMP-compliant parts, it ensures hygiene and durability. The machine solves common issues like foam overflow and inconsistent fill levels using anti-drip suck-back nozzles and high-performance valves. It is suitable for wineries, breweries, condiment manufacturers, chemical producers, and food factories requiring high-speed, stable, and accurate liquid filling processes.

Working Principle

Bottles are conveyed to the filling station where anti-drip suck-back nozzles prevent overflow and foam during filling. Liquid is dispensed via 14 high-precision filling heads controlled by stable valves, ensuring uniform fill levels. The top tank with rounded design and optional double jacket ensures smooth liquid flow, mixing, and easy cleaning. CIP and mixing systems can be integrated for hygiene and product consistency. PLC control synchronizes filling and bottle movement, providing high-speed, accurate, and reliable operation.

Product Parameter Table

Main Features

• 14 filling heads provide simultaneous, high-speed, uniform liquid filling

• Anti-drip suck-back nozzle prevents overflow and reduces foam generation

• Easy disassembly valves ensure stable shut-off and long service life

• No dead corner top tank simplifies cleaning and optional CIP system

• 304SS construction; 316SS optional for corrosive liquid compatibility

• Supports thin to medium viscosity liquids with optional mixing system

Application Scenarios

• Wine, vinegar, soy sauce, and other food liquid bottling

• Beverage production lines including beer, juice, and soft drinks

• Chemical and daily-use liquid products requiring GMP-compliant filling

• Glass and plastic bottle filling operations for small to medium factories

• High-speed production lines requiring overflow or continuous filling systems

FAQ

Q1: What liquids can this machine handle?
A: Low to medium viscosity liquids such as wine, vinegar, soy sauce, and other food or chemical liquids.

Q2: Can it handle corrosive products?
A: Yes, PTFE parts can be installed to handle corrosive liquids safely.

Q3: How is filling accuracy ensured?
A: Anti-drip suck-back nozzles and high-performance valves maintain consistent liquid levels.

Q4: What bottle types are compatible?
A: Glass and plastic bottles of various sizes are supported.

Q5: Is cleaning convenient?
A: Yes, the top tank has a round design with no dead corners, and optional CIP and mixing systems simplify cleaning.

Q6: What certifications does this machine have?
A: CE and RoHS certified, with GMP-compliant contact parts for food and chemical safety.
