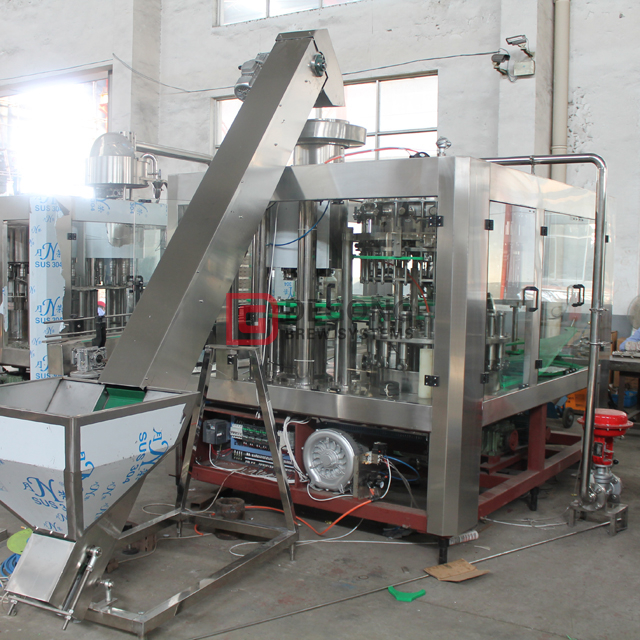

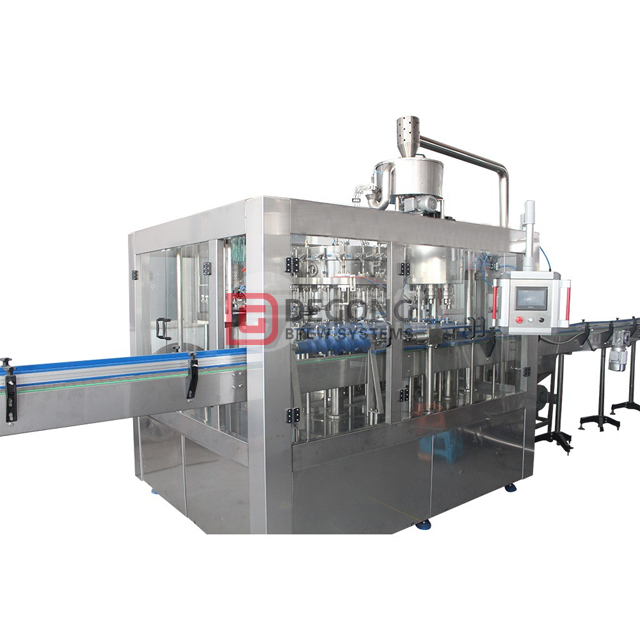

14-12-4 Automatic beer bottling machine 3 in 1 glass bottle filling&capping&cleaing system
Home » Brewery Equipment » Glass Bottling Systems » 14-12-4 Automatic beer bottling machine 3 in 1 glass bottle filling&capping&cleaing system

Product Detail

Share to:

14-12-4 Automatic beer bottling machine 3 in 1 glass bottle filling&capping&cleaing system

Quantity:
  • DGET-14-12-4
  • DGET
  • 8438400000


Beer bottling involves a series of steps that must be followed to make sure that the end product is safe and of high quality. It is a process that requires great expertise considering a large number of people consuming the product. With any Comac’s machine and the right accessories you can follow all the necessary steps it takes to obtain a perfect finished product.

IMG_9179


All the steps of the bottling beer process and suggested equipment



#1 cleaning

It is the first step in beer bottling and involves the removal of bottles from the original pallet packaging from the manufacturer. After the removal, the bottles are rinsed using filtered water, air or oxygen to aid in reducing the amount of oxygen in them, thus making them ready for process.

To take the next steps you can easily add our conveyors to your bottling line and continuing bottling your beer.

IMG_9077



#2 Beer bottling: filling

It is the second stage in beer bottling. Refilling of the bottle with beer depends on the type of the machine: the capacity of the bottles that the machine can accommodate and the speed at which the filler can fill the bottles. After depalletization, the bottles are loaded into the beer bottling machine. At this stage, the bottles are filled with beer and then some amount of inert gases.

IMG_9183




#3 Capping

Beer bottling also involves the capping process whereby the already filled bottles are run through a capping machine that seals them with the cap. This capping process is also dependent on the type of the beer filling machine. If the filling machine has a high speed with a large capacity of bottles, then the capping machine will also have the same feature. However, in some beer bottling processes, the bottles are sealed with a cork and bottle cage.

IMG_9184



#4 Labelling

The last step of beer bottling is beer labelling. In this process, the already packed and sealed beer bottles are run through a labelling machine, called the labeler. This process is vital since it ensures that all the bottles have the date of manufacture and expiry, which is a requirement for all manufacturers by the standardization organ of any state, to ensure that the health of the citizens is safeguarded.

The process of beer bottling is then concluded by the packaging of the certified beer bottles into the crates or cartons for transportation to the store or market, ready for consumption or exportation to foreign countries.

贴标机


Model

BCGF14-12-4

Capacity(B/H)(500ml)

1500-2000BPH

Bottle size

Neck:φ20-50mm;Height:150-320mm

Filling precision

<+1MM

Air pressure

0.4Mpa

Air consumption (m³/min)

0.3

Power(kw)

3

Weight(kg)

3500

Dimension(L*W*H)(mm)

2500*1900*2300
