DEGONG-bottling machine
DEGONG

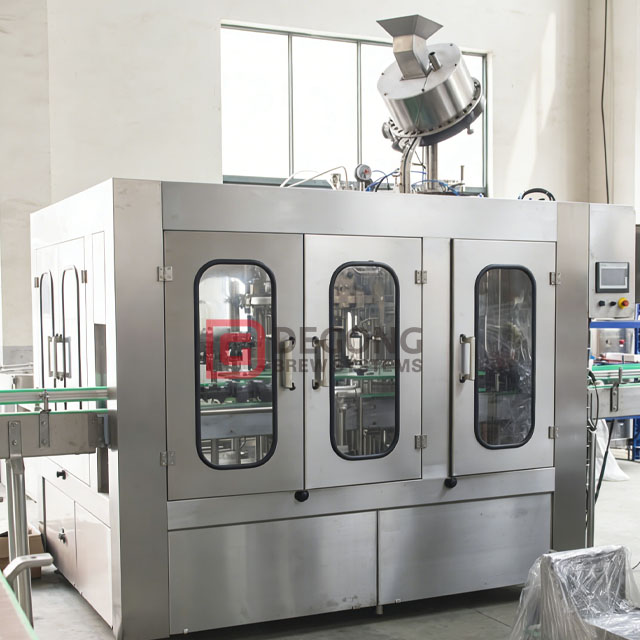

Product introduction of Beer Filling Machine
The automatic beer filling machine is a 3-in-1 bottling system combining rinsing, filling, and crown capping functions, designed for 1800 bottles per hour production capacity using 500ml glass bottles. Constructed with SUS304 or SUS316 materials, it meets hygienic and durability requirements in beverage processing. The machine enables efficient, consistent beer filling with reduced foam and accurate liquid levels. It is suitable for breweries requiring stable bottling processes and supports automated operation in small to medium-scale beer production facilities.

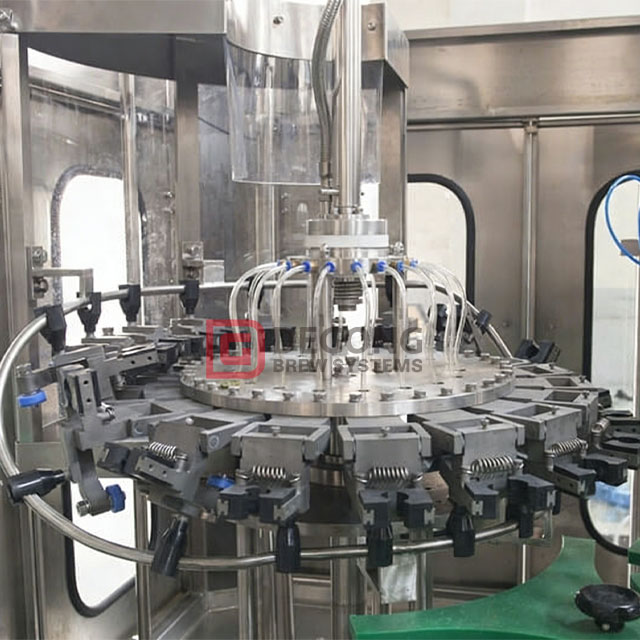

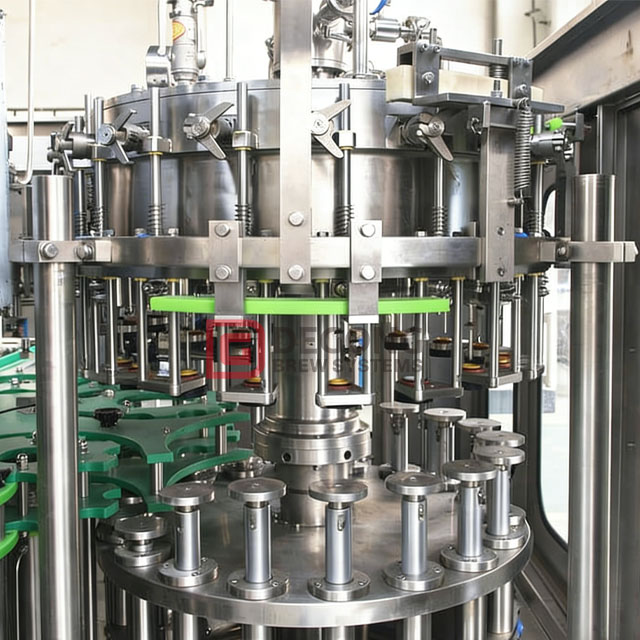

The machine operates through an integrated process of bottle rinsing, filling, and capping. Empty bottles are first transported by a screw feeding system into the rinsing section for internal cleaning. Then, bottles enter the filling station where isobaric filling valves control pressure and liquid level to minimize foam and ensure accuracy. After filling, bottles move to the capping unit where crown caps are applied and sealed using precision capping heads. The entire process is controlled by a PLC system for synchronized and stable operation.
Product Parameter Table
Washing heads | 14 |
Filling heads | 12 |
Capping heads | 5 |
Capacity based on 500 ml glass bottle | 1800/ h |
Motor power | 1.5 kW |
Dimensions | 1700×1100×2300 mm |
Weight | 2000 kg |
Main Features
Integrated 3-in-1 design reduces handling time and contamination risk
Isobaric filling technology minimizes foam and preserves carbonation stability
High precision filling valves ensure consistent liquid level across bottles

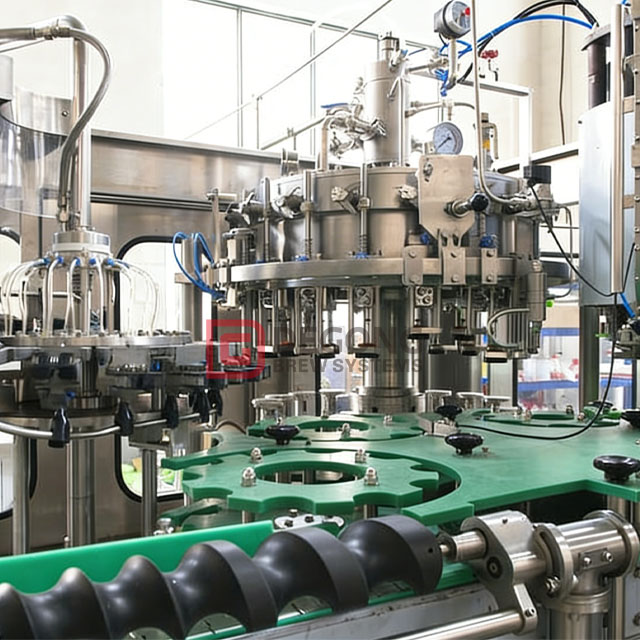

Screw feeding system improves bottle transfer stability and alignment accuracy
PLC control with touch interface enables easy parameter setting and monitoring
SUS304 or SUS316 construction meets hygienic and corrosion resistance standards
Application Scenarios
Craft brewery bottling lines for consistent glass bottle beer packaging operations
Microbrewery systems requiring compact and automated beer filling solutions
Medium-scale beer production facilities upgrading manual or semi-auto lines
Beverage factories handling carbonated drinks with crown cap sealing requirements
Contract brewing and OEM beer production with standardized bottling processes
Pilot brewing systems for product testing and small batch commercial packaging
Q1: What filling method does this machine use?
A: The machine adopts isobaric (equal pressure) filling, ensuring minimal foam generation and maintaining carbonation levels during the beer filling process.
Q2: Can the machine handle different bottle sizes?
A: Yes, it can be adjusted for different glass bottle sizes with change parts, making it flexible for various production requirements.
Q3: How is filling accuracy controlled?
A: Filling is controlled by high-precision mechanical valves and electric probe level detection, ensuring uniform liquid levels in each bottle.
Q4: What type of cap sealing is supported?
A: It is designed for crown cap sealing, using high-speed capping heads to ensure tight and consistent sealing performance.
Q5: Is the machine suitable for other beverages?
A: Yes, it can also be used for carbonated beverages with similar filling requirements, such as sparkling drinks.
Q6: What level of automation does the system provide?
A: The machine is fully automatic, featuring PLC control, touch screen operation, and synchronized processing across rinsing, filling, and capping stages.
