DGET-1000BPH
DGET
8438400000

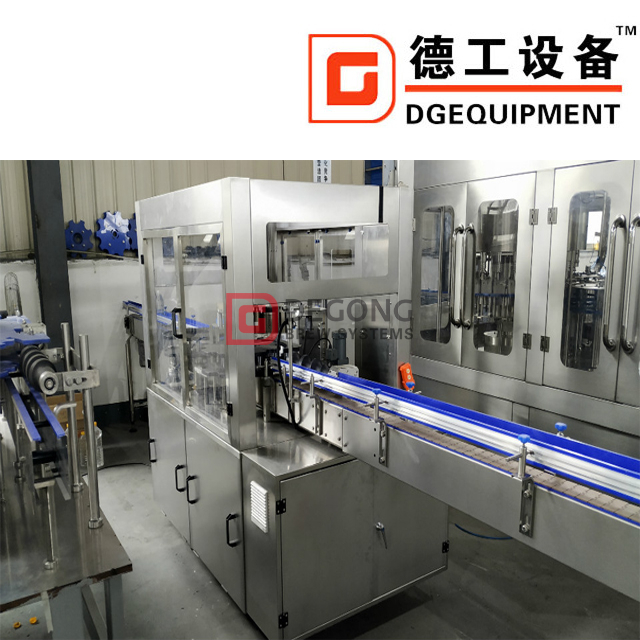

This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled cola ,sprint etc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
3 in 1 filling beer making machine
| Main features of the equipment: |
Bottle Rinsing Parts
When the clamp rotate to star wheel with rotating table, bottle into the middle of clamp, open clamp cam close the clip claw and clip the bottleneck with the rotating clamp. When rotary tables to rotate, clamp pieces will rotate with over turn cam, guide cams rotates around over turn cam and flip the bottleneck to 180 degree till the bottle mouth is top downwards and directly face the spray nozzle, then the clean water in the spray nozzle sprays and wash the inside of the bottle, Drain, turn 180 degree downwards and then goes out from the star wheel.

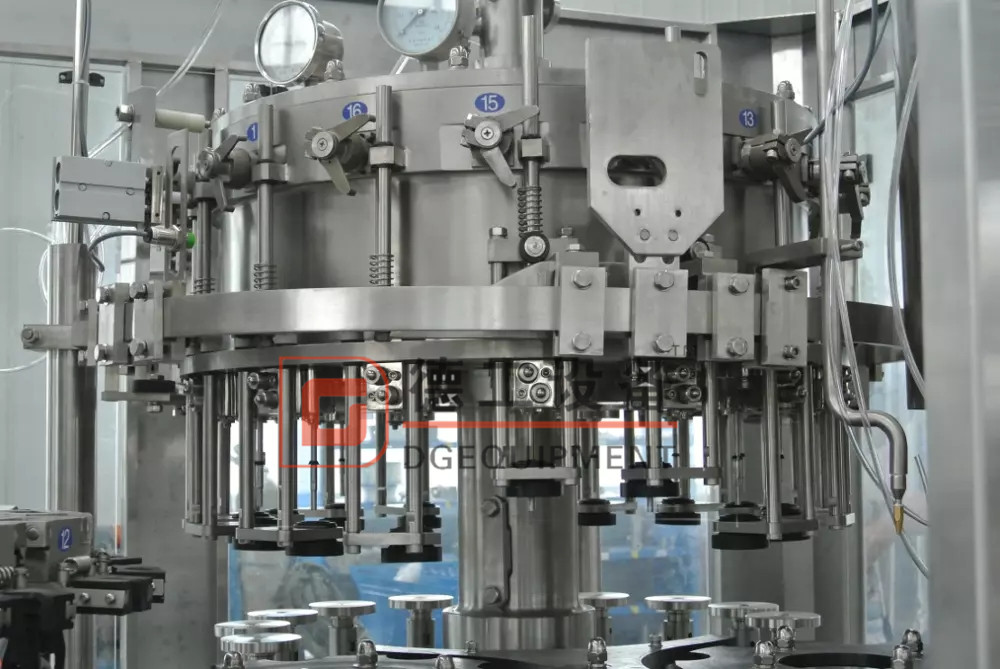

Filling parts
The filling part is made up of main liquid pipe, rotating cylinder bearing base, filling cylinder fulcrum loop, carbonated beverage and beer tank, filling valve, filling cylinder pipe, control loop device, ascending device, the distributor, height adjusting control, stimulating bubble arm, vacuum system, etc.
Capping parts
The capping machine is made up of cap holder, capping slideway, capping upper part, capping lower part, elevating part and anti-circling column.

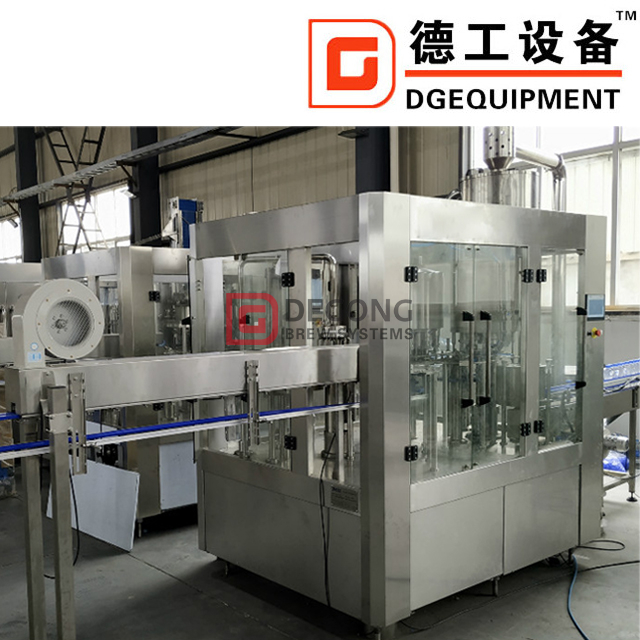

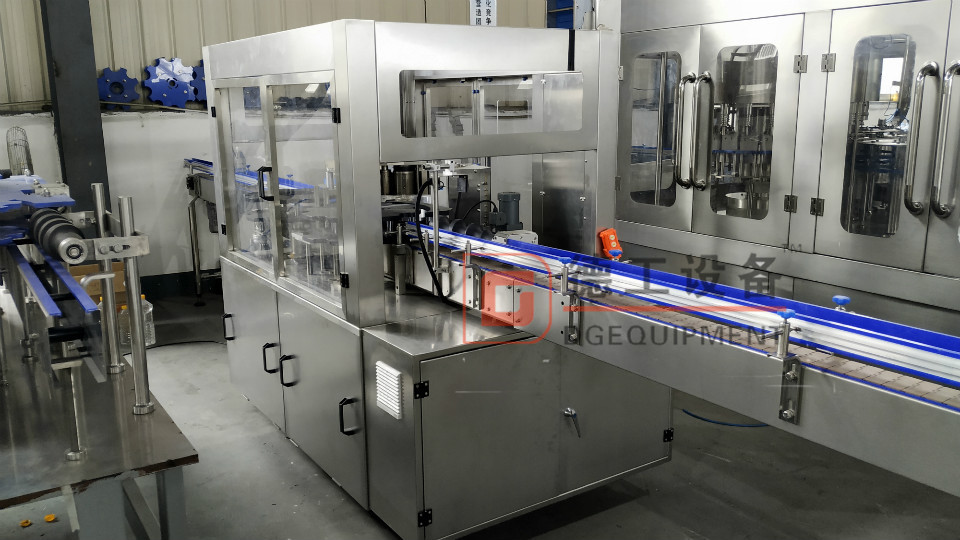

Bottle Beer Making Machine

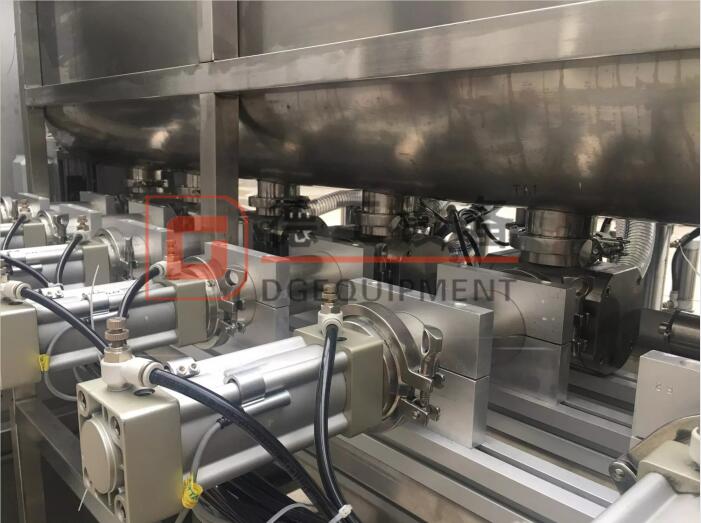

Vacuum pump

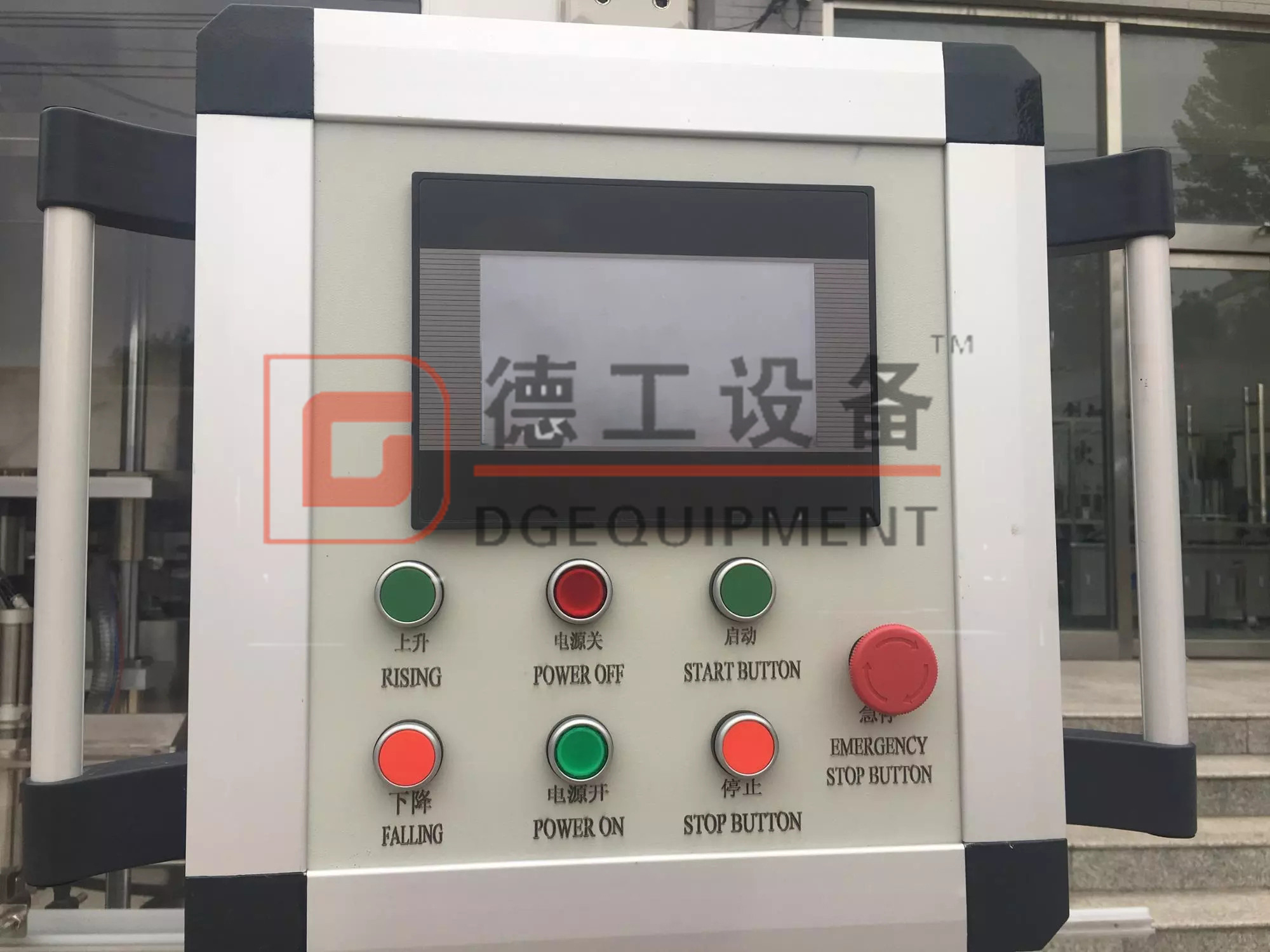

PLC(Controlcontrol panel)
| Bottle Beer Making Machine technical parameters | |
|---|---|
Washing heads | 8 |
Filling heads | 8 |
Capping heads | 3 |
Capacity | 1000-1500BPH |
Bottle type | height:150~ 300mm Bottle neck:①50~①85mm Bottle diameter: 50-75mm |
Air consumption | 0. 2m3/min (0. 4~0.6Mpa) |
CO2consumption | 1.6kg/l000L |
Water consumption | 0. 8m3/h |
Vacuum pump | 0. 20m3/h |
Power | main motor: 1.8KW hopper motor: 0 .75KW |
Dimensions | 2600×1830×2550(L*W*H) |
Frequency converter | SIEMEMS |
PLC | SIEMEMS |
| Our company: |
| Our services: |
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
Our certification
| Contact information: |
If you are interested in our equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
