Durable 10 Barrel Storage Jacket Stainless Steel Fermenter Beer Fermenting Vessel For Brewing Equipment
Home » Brewery Equipment » Fermentation Vessels » Durable 10 Barrel Storage Jacket Stainless Steel Fermenter Beer Fermenting Vessel For Brewing Equipment

Product Detail

Share to:

Durable 10 Barrel Storage Jacket Stainless Steel Fermenter Beer Fermenting Vessel For Brewing Equipment

Stainless steel fermentation tanks are also called CCT’s(Cylindrical conical tanks), FV’s(fermentation vessel), primary fermentor or unitanks as they are used both for fermenting and largering. Fementing is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Material:
Insulation:
Polyurathane:
Jacket:
Quantity:
  • DGET- 10BBL
  • DGET
  • 8438400000

We offers a wide array of fermenters(fermentation) and brite tanks(maturation) tanks that are designed accordingly to our customers’ specifications and their needs. Our fermenter and brite tanks come in three different generalized builds (customizable tanks are also available): single wall, un-jacketed and jacketed. All of our tanks can be pressurized (unless otherwise requested) and the fermenters have an added bonus of functioning as both a fermenter and BBT tank.


Fermentation tank introduction

Fermenter available from 100 Litre to 10000 litre with an average 25% head Space. All tank have a Dish top , Cylinder body & 60 /75° Cone Bottom . Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet your brewery’s space and height restrictions.


The design of fermenters is based on our vast beer knowledge and we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting& lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.

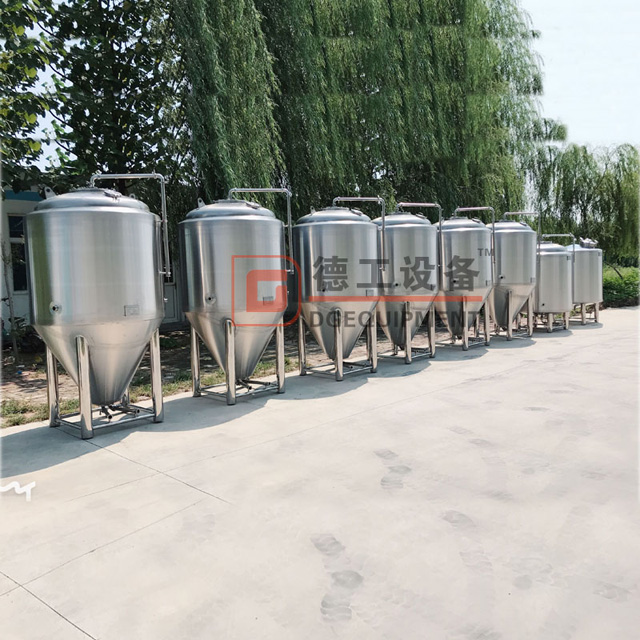

stainless steel beer fermenter

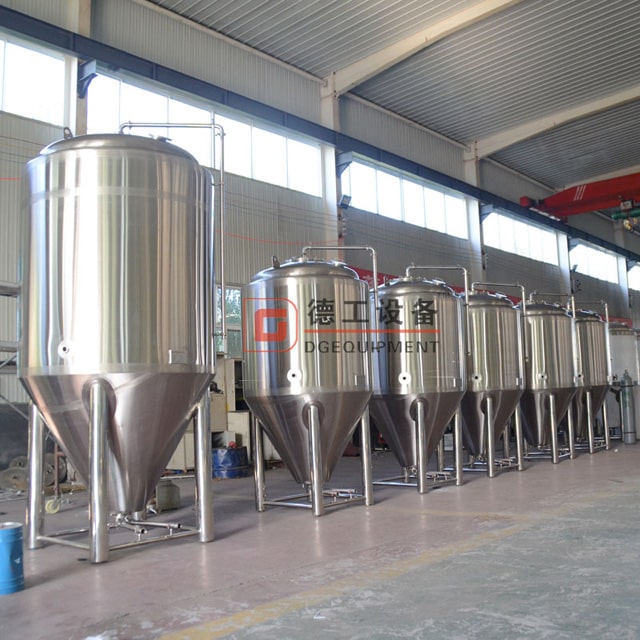

Separate beer fermentation tank

Stackable beer fermentation tank

Stackable beer fermentation tank

未标题-1-min (2)

Accessories on fermentation tank

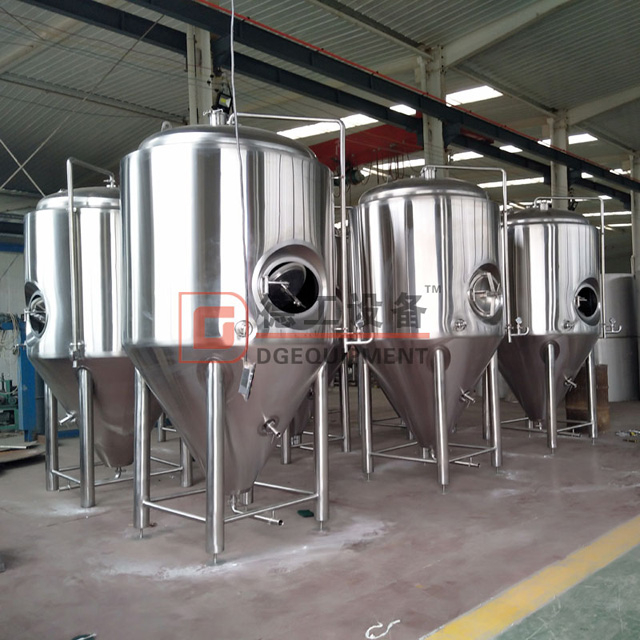

                                                                                        Fermentation tank

Material:

SS304 or SS316L

Design Pressure:

-1 -10 Bar (g)

Work Temperature:

0-200 °C

Volumes:

200~30000L

Construction :

Vertical type

Jacket type :

Dimple jacket

Structure :

Single layer vessel, vessel with jacket,double layer vessel with jacket and insulation

Heating or cooling function

According to the heating or cooling requirement ,the tank will have jacket for requried function

Surface Finish:

Mirror Polish or Matt polish or Acid wash&pickling or 2B

Standard components :

Manhole,sight glass,cleaning ball,breathing valve,mechanical regulation valve,pressure gauge,sample valve,carbonation stone,temperature sensor,themometer,racking arm

Optional components :

Vent filter, Temp. Gauge, display on the gauge directly on the vessel
Temp sensor PT100, digital display on the control cabinet by instrument
Temp sensor with control for heating and cooling Level gauge with digital
display on the control cabinet by instrument Load cell Valves

Applications:

Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology &
Laboratory Medical &Medical Device Chemical Industry Painting Industrial



Company information

company introduction_副本-minservide


If you have interest in DEGONG beer brewing equipment,welcome to contact me freely
