China Brew System Complete of 500L 1000L 1500L Brewery Tank Stainless Steel 304/316 Beer Making Machine for Sale

Complete brewery-systems for microbreweries with production from 1000L up to 5000L of beer per day. 1000L / 2000L / 3000L / 4000L / 5000L brewhouse sizes are produced standardly, but also custom-made specially composed brewhouses are manufactured on customer's request. Our brewing equipment enables production of all styles of beer. All brewing operations as well as fermenting & conditioning process can be controlled via semi-automatic-control with programming system, or can be fully automatic (computer controlled) depending on customer's requirements.
Thickness of material (mm):
inner 3.0mm
outer 2.0mm
Insulation:
polyurethane
Material:
stainless steel
red copper
Heating method:
steam heating
electric heating
direct fire heating
Certificate:
CE
ISO
TUV
Availability:
Quantity:
Inquire Add to Basket

  • DGET-1500L

  • DGET

  • 8438400000

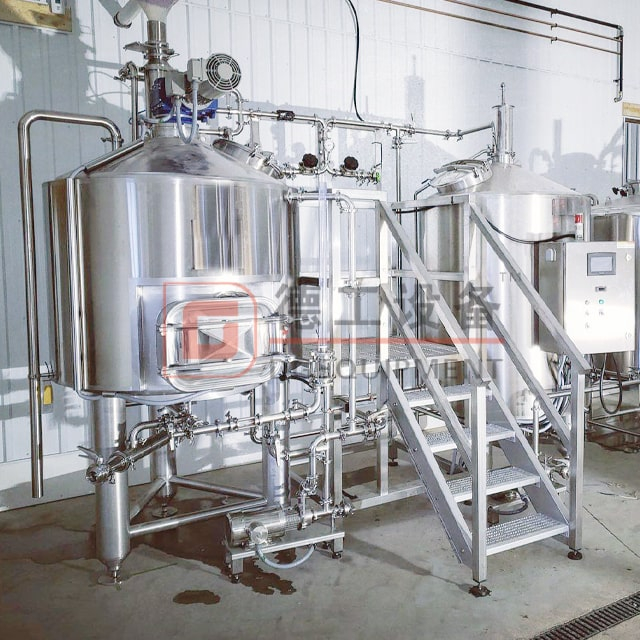

500L 1000L 1500L beer equipment brewhouse system

Main configuration:

This is the configuration of brewhouse system (mash tun/lautering tun, brew kettle/whirlpool, hot water tank), please check the details in the following chart.

Optional:

1- mash tun, lauter tun, boiling/whirlpool tun, hot water tank

2- mash/boiling tun, lauter tun, whirlpool tun, hot water tank

3- mash/boiling tun, lauter /whirlpool tun, hot water tank

4- mash tun, lauter tun, boiling tun, whirlpool tun, hot water tank


750BW-min

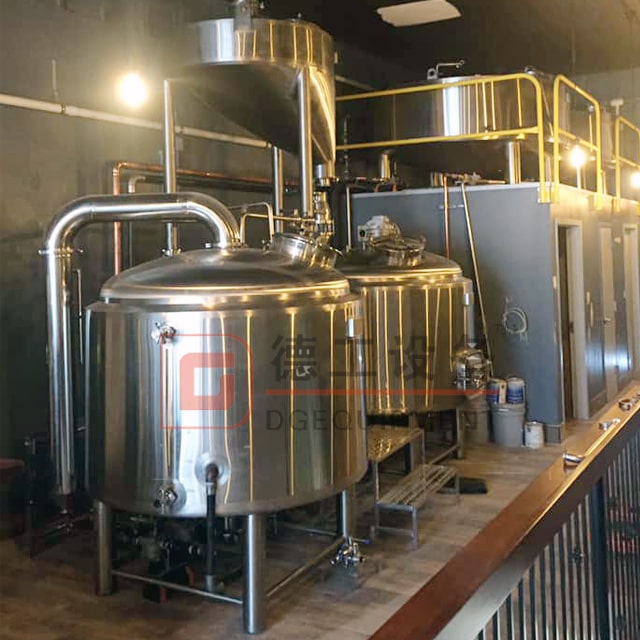

2-vessel: mash/lauter tun+boiling/whirlpool tun


750BW3-min

3-vessel: mash/lauter tun+boiling/whirlpool tun+hot water tank


Main specs of brewhouse and fermentation:

Brewhouse system:

Heating method: steam/electric/direct fire heating

1)-Inner wall SUS304, 3mm;

   -Surface wall SUS304/red copper, 2mm

2)-Dome top, top manway with glass

   -Side manway

3)-Insulation: polyurethane 100mm;

   -with inside 360°CIP washing ball

   -agitator

   -removable false bottom

   -sparging arm, sight glass

   -Tangential inlet for whirlpool

   -Thermowell for temperature sensor and thermometer....

   -flex auger, hydrator(optional)

   -Level tube(optional)


750BW 细节-min


750BW 细节-min

beer brewhouse system details


Fermentation system

1)-Interior wall stainless steel 304, 3mm;

   -Exterior wall stainless steel 304, 2mm

2)-Top mounted manway, conical bottom

3)-Insulation: polyurethane 100mm

4)-Glycol cooling jackets on both cylinder and cone

5)-Inside 360 degree rotating CIP washing ball;

   -CIP arm

   -safety&vacuum valve on top

   -bung device

   -sample valve

   -rotating racking arm

   -thermometer

   -carbonation stone(optional)

   -Level tube(optional)

   -dry hops port

6)-100% TIG welding with pure argon gas shield

   -Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

   -Testing pressure: 3 bar

   -working pressure: 1.5-2 bar


750FV细节-min

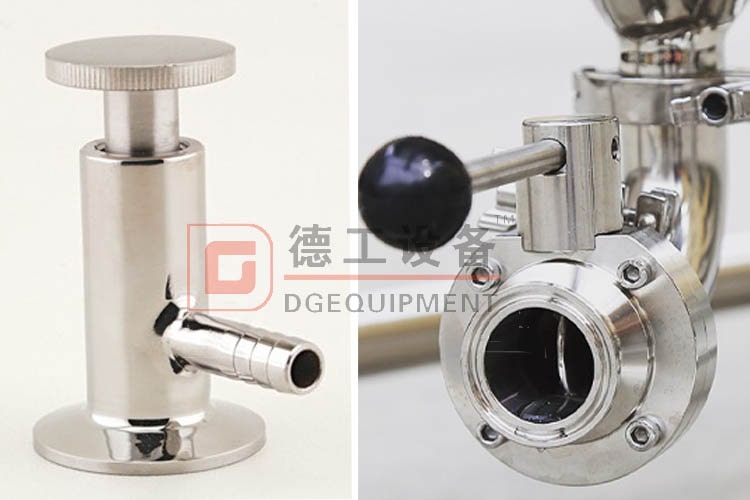

sample valve & drain outlet-min

beer fermenter details


If you are interested in beer equipment, get in touch with me freely.
