DGET-2/3/4/5BBL
DGET
8438400000
The brewery equipment is widely used in pub, bar, restaurant and craft brewery. The configuration is flexible depending on different working efficiency:
Brewhouse combination is flexible according to your needs and daily work shift.
The more brewing tanks, the continuous batch to batch brewing is easier to achieve.
Hot liquor tank is optional, which could help heat the hot water and store the hot water come from heat exchanger after cooling the wort.
Fermenter quantity will depend on beer daily output and beer fermentation cycle.
Bright beer tank also is a option, the function is store and Add CO2 in general. If you want save cost, we could add a carbonation stone for fermenter, then it named " Unitank".
Cooling system including glycol water tank, pump and chiller. The big cooling capacity used in heat exchanger, for cooling wort.
Control system we have 2 types, PLC control and Digital control system.
Mill system: roller malt miller used for mash the malt, o achieve the effect of malt breaking without crushing.

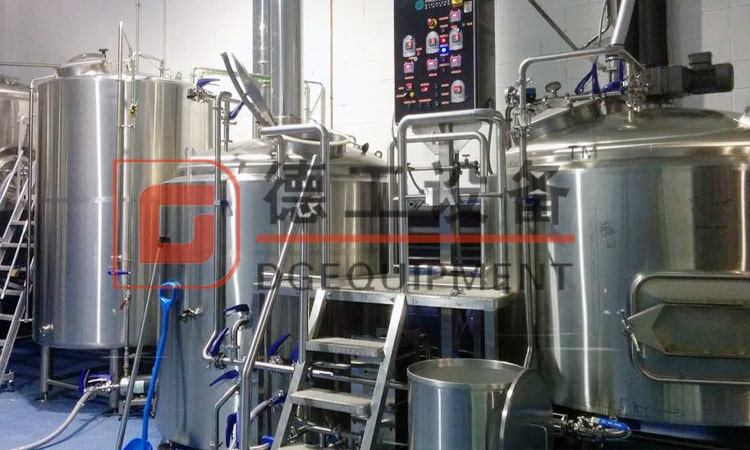

Mash system:
Mash/lauter/kettle/whirlpool, two vessels, three vessels of brewhouse can be chosen, can be combined with any combination. The tanks will be using stainless steel 304 as its material to make, and after finished, all the tanks will be a pressure test to guarantee its quality. From top to the bottom of tank, we use the horizontal motor, with manway hole, chaff door, false bottom, bolt legs, drains, agitator, etc. Three layers are made up of the mash/lauter/kettle/whirlpool tun, outer layer, inner layer, insulation layer’ thickness is 80mm, and we usually use polyurethane, to achieve the keep temperature goal.

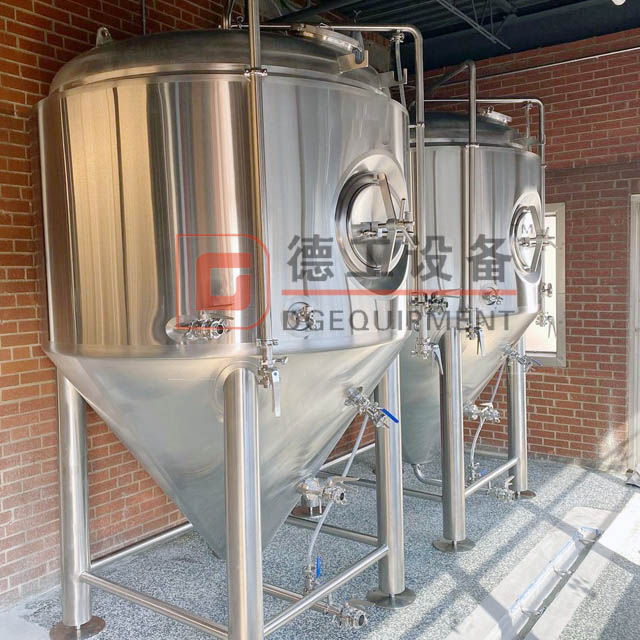

Fermentation system
A whole system we will be equipped with 2 pcs equal capacity of the fermenters to our customers at least. If you want to make many batches of mashing per day, the answer is different, this time the capacity of fermentation is not equal to the mashing system. Fermenters have the conical bottom, the angle of conical is between 60° to 90 °, the benefit to yeast precipitation. Pressure vacuum relief valve and mechanical pressure regulation valve are installed in the fermenters, to guarantee the tanks’safety. When the pressure is negative or too higher than normal, it will be automatic open.

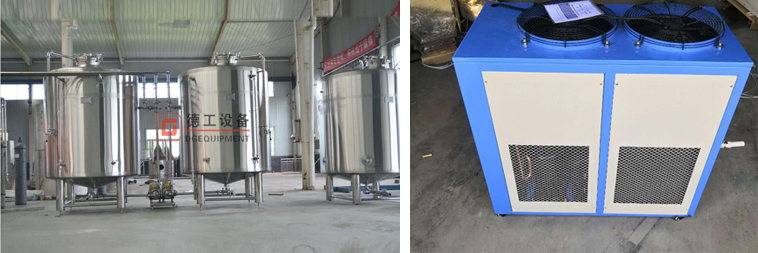

Cooling system
It was made up of an ice water tank, chiller, ice water pump. The ice water tank function is cool down the temperature of wort, and fermenter. Ice water means the mixing of water and alcohol, and alcohol concentration is 95%, they will be mixed together, and in the rate of one to four. The tank is cylindrical in appearance, the tank is fitted with a level gauge, you can see the rest of liquid, avoid leaking and can help you observe.

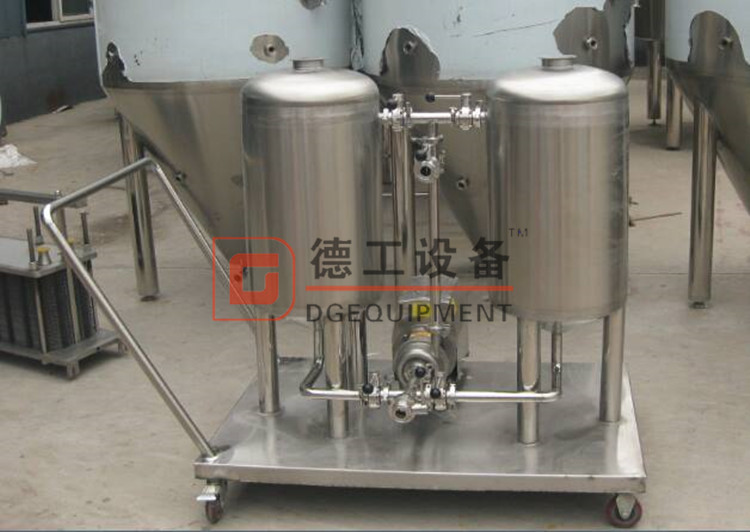

CIP system
Two sterilize tanks with one control cabinet were installed on the skid car. One of them is sterilized tank, and another is a alkali tank.
Control system
PLC and Siemens digital display control cabinet with touch screen, you can monitor the temperature of each tank and situation. The control panel will have each tank's button and screen.
If you are interested in beer equipment, please feel free to contact me.
