The 1000L brewery equipment is designed with a sterile breathing vent or a sterile positive pressure fermentation system. Beer fermentation tank is closed cylindrical tanks under specified pressure for wort fermentation. Large conical bottom enables easy discharge of sediment. Cooling jacket can be chose for temperature control. Insulation is optional to contribute to a more economical use of energy. What’s more, it has the advantages of high capacity, compact structure, simple operation, high efficiency, low noise, low maintenance costs as well as durability. The 1000L brewery equipment wins a good reputation among the customers due to the excellent performance.
|Fermentation tank coolinig:|
Our stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as over-pressure and under pressure valve(PVRV), CIP arm, sanitary sample valve, manhole, etc.. The design of fermenters is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting & lagering capacity and configuration, sufficient time fermenting and lagering to produce quality beers must be taken into consideration.
100% Stainless Steel SUS304 Construction
Dish top cover & Cylinder Body & 60°Conical Bottom
Glycol cooling jacket( cover body & bottom)
80-100mm PU foam Insulation
Inside of the tanks are polished to Ra<0.4um
Side way manhole or up way manhole
CIP with Spray Ball
Thermometer (PT-100) in thermowell at side
Sanitary Sample valve
Pressure Relief valve
Rotating Racking Arm with TC Butterfly Valve
Bottom outlet with TC Butterfly valve
Adjustable legs with pads
1-There is a dimple jacket to cool down. The inside of the jacket is filled with alcohol water. It can be used with temperature sensing and solenoid valve to maintain the temperature inside the tank.
2-With a breathing valve and a mechanical pressure regulating valve, the pressure of the tank can be maintained at a set value, and the safety hazard caused by thermal expansion and contraction during cleaning can be eliminated.
3-Top manhole,with lower cost ,simple processing,Easy cleaning and more sanitary.
Side manhole ,price little higher than top manhole,observe the beer in fermenter, when the height of the room is limited, we will choose side manhole
4-60 to 90 degrees bottom cone can adjustable.its according to the container height for shipping , save much shipping cost for client.
fermentation tank details

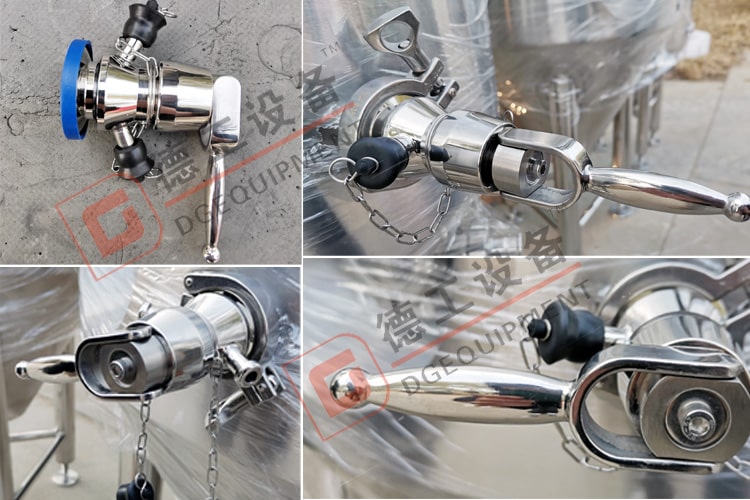

sterile sample valve(to get a better beer)
