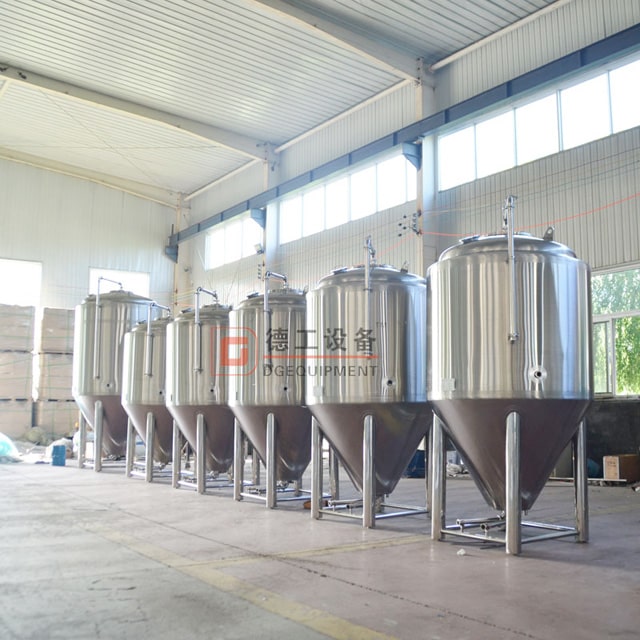

China Best All in One Brewing System 3HL 5HL 10HL 15HL 20HL Beer Brewery Fermenter Insulated Fermentation Tank

Craft breweries may start out as small, manual operations, but the key to a successful craft brewery is scalability. As the demand for your product increases, you need to adjust your output. DEGONG will provide you with tailor-made solutions from design to installation to expansion according to your needs.

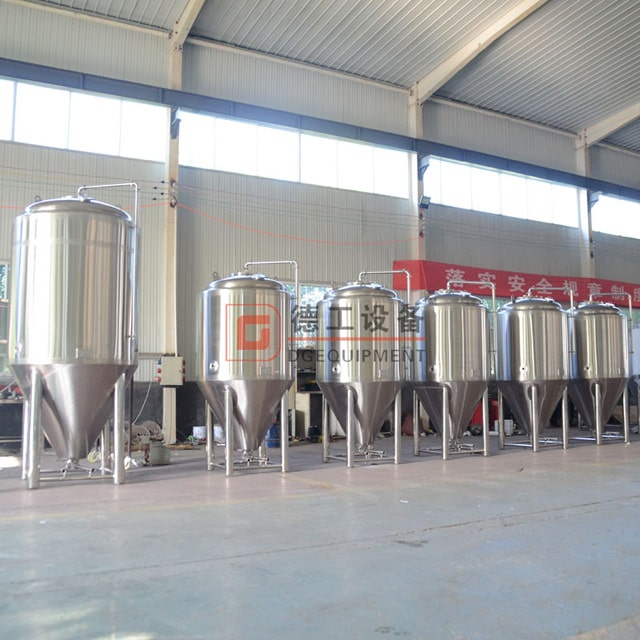

DEGONG Beer Fermentation tank

The fermenter is the place where the cooled wort is finally fermented into beer. The fermentation tank is a double-layer stainless steel isobaric conical cylinder tanks with insulation. The substances entering the fermentation tank are wort, oxygen, and yeast (some brewers will add some dry hops to increase the aroma of the beer). After entering into fermentation tank,yeast performs aerobic respiration to multiply, then yeast performs aerobic respiration to produce CO2 and alcohol.

Different types of beer have different fermentation cycles. So when recommending the number of fermentation tanks, in addition to the annual or monthly output, we also need what type of beer you brew or the fermentation cycle.

Fermentation tank FEATURES

• Inner: SS304, 3mm; Dimple jacket: SS304, 1.5mm (2mm);  Exterior sheathing: SS304, 2mm

• Overpressure setting mechanism from 0 bar up to 3 bar (or more according to customer requirements)

• Guaranteed inner surface roughness of Ra = 0.6 microns or less

• CIP system combines with rotating spray ball, diaphragm-seal pressure gauge, pressure adjusting apparatus, arm, and valve


• Designed headspace, over 20%

• Dual/triple dimple jackets provide high cooling efficiency

• Side/top manway with knobs for easy access

• Polyurethane insulation 100mm injected- 100% TIG welding

• Polishing and passivation treatment on the metal surface

• RTD-PT100- Liquidometer

• Adjustable leveling pads

• 60-degree conical bottom

• Hop back (optional)

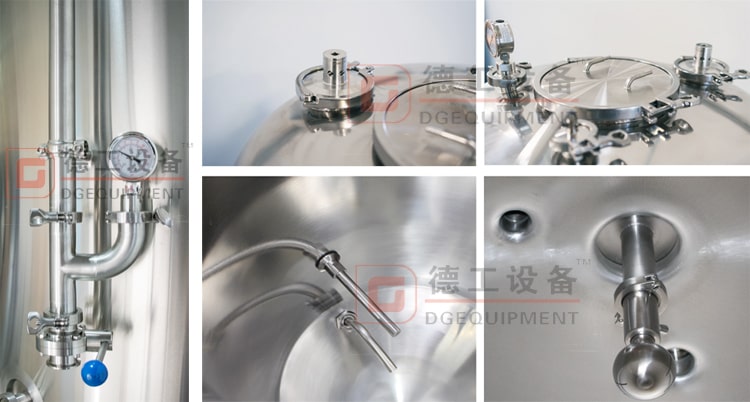

Fermentation tank configuration

• Outlet / inlet for flow of beer

• Full sanitary metallic sealed sampling valve

• Mechanical safe valve PVRV 2 bar on CIP arm

• Apunding valve on top

• Hydraulic shock pressure gauge on CIP arm

• Thermowell for high accuracy temperature sensor

• 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

• Complete valves, fittings and all parts

• Dry hopping port with solid end cap

Optional equipment

• Local thermostat unit (control valves duplicators, depending on the temperature)

• Carbonization stone – the special porous stone for carbonization of beverages from CO2 bottles

• Stainless steel ladder for easy access to the door of the tank
