7BBL Vertical Dimple Jacket Beer Maturing Vessels / Beer Serving Tank in Pub

Carbonating a full batch of beer with a carbonating stone in a brite tank provides for much quicker carbonation. The carbonating stone increases the surface area contact with the beer by producing tiny bubbles of CO2, which are more easily absorbed into the beer.

Material:
Insulation:
Polyurathane:
Jacket:
Quantity:
  • DGET-7BBL
  • DGET
  • 8438400000



How does a brite tank work

Carbonating a full batch of beer with a carbonating stone in a brite tank provides for much quicker carbonation. The carbonating stone increases the surface area contact with the beer by producing tiny bubbles of CO2, which are more easily absorbed into the beer.


5

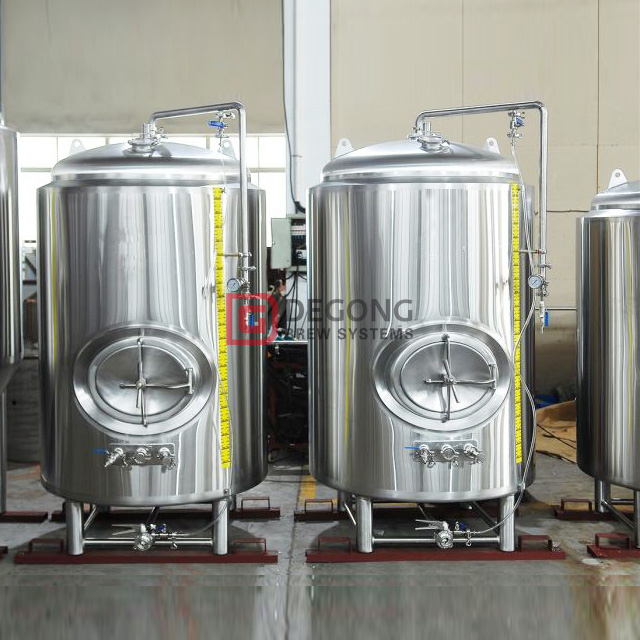

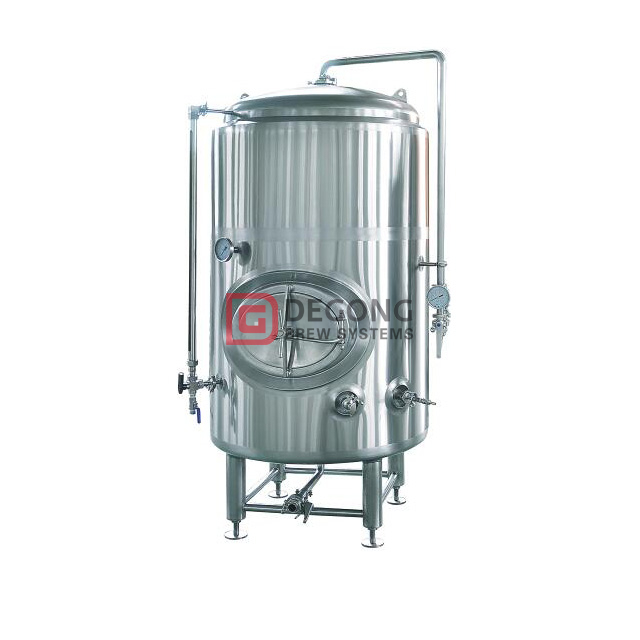

                                            7BBL Vertical Dimple Jacket Beer Maturing Vessels / Beer Serving Tank in Pub


Often called a “brite” beer tank, serving tank or secondary tank, a bright tank is the vessel in which beer is placed after primary fermentation and filtering, so it can further mature, clarify and carbonate, as well as be stored for kegging, bottling, canning and packaging.



Specifications of beer Maturing Vessels / Beer Serving tank


Beer maturing tank has a dish-bottomed pressure-rated temperature-controlled tank used to hold beer in preparation for packaging. The term “bright” refers to “bright beer,” beer that has been rendered bright (clear) by filtration, centrifugation, fining, and/or maturation. In most breweries, beer will be filtered after leaving a uni-tank or lagering vessel and be directed into a bright tank. If the beer is to be force-carbonated, then the beer may be carbonated in-line, under pressure, between the fermenter or lagering tank and the bright tank. In this case, the beer should arrive at the bright tank with full carbonation.


Specifications

- All tanks are made of food grade stainless steel 304.

- Adopting advanced world famous brand components in electric parts and operation parts.

- Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm

- Insulation: Polyurethane   thickness: 100mm

- Working pressure: 1.5-2.0 bar      Design pressure: 3.0 bar

- Cone 150° resist compression design

- Pressure controlled by pressure gauge automatically.

- 100% TIG welding with pure argon gas shield.

- Glycol jacket: dimpled plate on cone and side

- Heat exchange area: 2.69 square meter

- Interior surface: mirror polishing

- Exterior surface: oil bushed finish

- Interior full polished to Ra0.6µm without dead corner

- TC connected CIP arm with 360° coverage spraying ball

- Sanitary side mounted manhole with pressured door

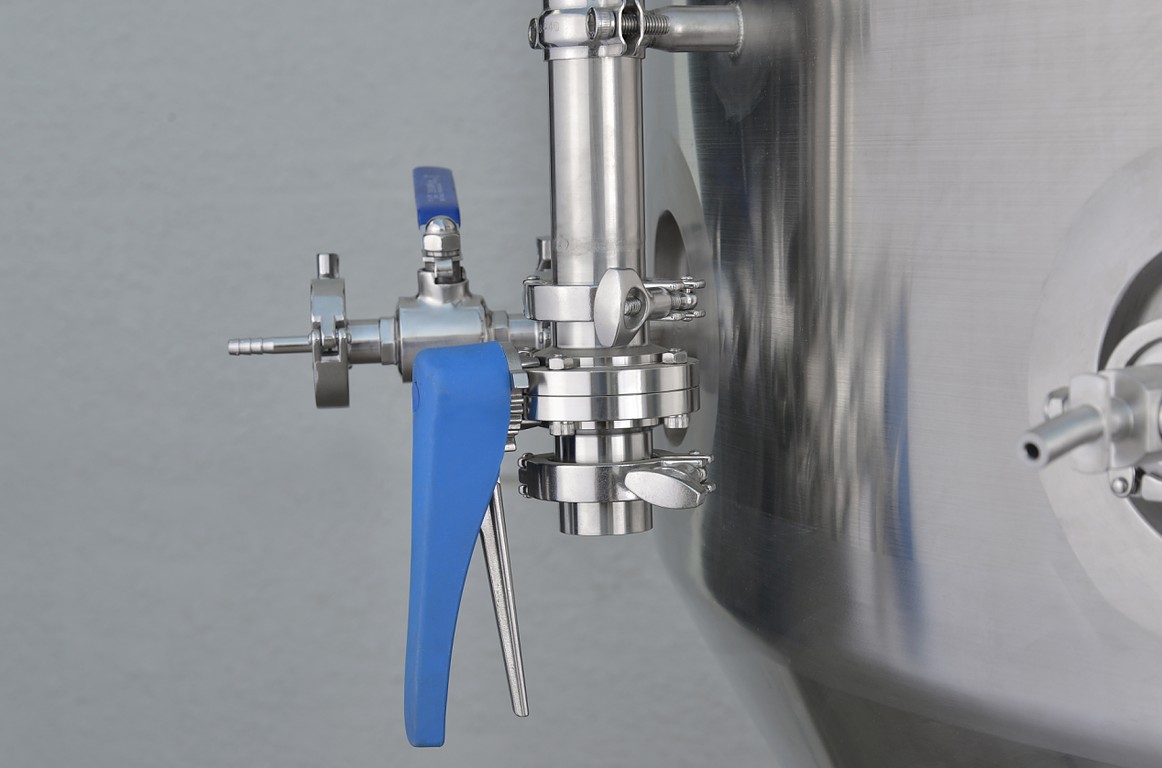

- Main accessories: mechanical type safety valve, sampling valve, pressure gauge, temperature probe, racking arm, leveling tube, solenoid valve, etc...



Side manhole_副本


08



09




Delivery


The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

 1.Plastic film, bubble film
2. Fumigation-free wooden case for LCL
3. Plastic film&bubble film wrapped, iron frame if needed, fixing for FCL
4. Up to export standard, safety transportation


未标题-1ff


微信图片_20190515134427_副本




Service



Pre-Sales Service

1. Free of making offers, craft and technical guidance.

2. We can provide company's qualification certification and the drawings.

3. We can also make customized products according to customer's needs.



After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
