Product Detail

Share to:

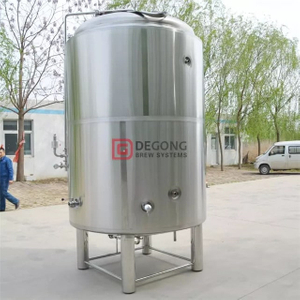

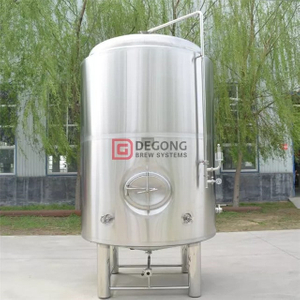

20-50bbl bright tank DEGONG Jacketed Brite Tank brewing equipment for sale

The 50bbl bright tank uses certified food-grade 304/316 stainless steel as raw materials and is manufactured by high-quality manufacturing technology. The equipment is safe and reliable, and the operation is stable. The bright tank is equipped with a glycol jacket, which can achieve excellent temperature control and ensure the storage temperature of the beer.
Thickness of material (mm):
Jacket:
Availability:
Quantity:
  • DEGONG 20-50BBL
  • DEGONG
  • 8438400000

The 50bbl bright tank uses certified food-grade 304/316 stainless steel as raw materials and is manufactured by high-quality manufacturing technology. The equipment is safe and reliable, and the operation is stable. The bright tank is equipped with a glycol jacket, which can achieve excellent temperature control and ensure the storage temperature of the beer.


Also, you can also carry out secondary fermentation or carbonation of beer in a bright tank, which is conducive to releasing the fermentation tank. Each bright tank has an unmarked 25% headspace in the volume, so the actual capacity of the 50bbl bright tank is 62.5bbl. If you want to know more about the bright tank, you can contact us directly. We will provide you with the most complete turnkey solution.


BBT 003

50BBL BBT Bright beer tank


50BBL Bright Tank Specification

Effective volume: 50BBL

Total volume: 62.5BBL

Material: SUS304/SUS316 Stainless Steel

Control system: PLC Siemens or PID Schneider/ABB brand

Cooling area: 10㎡

Polished/Brushed/Mirror finish/Pickling passivation

Work pressure: inner jacket 0.2MPa     cooling jacket 0.3Mpa

Test pressure: inner jacket 0.4MPa     cooling jacket 0.5Mpa


BBT 001

Cellar tanks stainless steel construction


Standard configuration

Food-grade 304/316 stainless steel construction

Double-wall with dimpled cooling jacket

Inner surface 2B finish, and passivated

Full sanitary tri-clamped sampling valve

PT100 temperature thermowell with sensor

360°coverage CIP spraying ball

Shadowless /Top pressure manway

Threaded ice water inlet/outlet

Pressure relief valve with pressure gauge

Lifting bar on the top edge of the tank

Heavy-duty legs with adjustable bolts

Safety valve on top of the tank

Carbonation stone

Liquid level indicator


Optional:

Racking arm on the cone

Digital display thermometer

Flexible liquid level display


fermentation components

The brite tank is equipped with lifting ears, which is convenient for hoisting equipment in place.

With a rotating elbow and racking tam for beer delivery, it is convenient and flexible to deliver beer.

An elliptical guard plate is added at the junction of the outriggers and the lower cone refrigerant inlet pipe and the lower cone outsourcing to ensure more precise machining accuracy.

All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.

The clamp is installed at the connection between the material port and the bottom of the tank, which can be rotated at will, which is convenient for customers to operate.

Outsourcing of the bottom of the Bright tank is made of finished products to ensure that the tank body has a beautiful appearance, strong and durable.

All bright tanks are equipped with carbon stone for CO2.

Uses a shadowless manway, which is easy to clean. The top manhole can be designed according to the customer’s fermentation process and brewing beer.
