| Conical tank single wall stainless steel tank |
Quality industrial wine making and brewing equipment is available from DEGONG. Our products, made of durable materials and available in a wide variety of sizes, will meet the needs of your commercial brewery, winery, or food processing facility.
1.Single wall tank
Design pressure 15 psi Capacity 10 HL (gross volume 8.5 bbl. or 264 gallon)
Cone bottom 120°, tank on stainless steel leg with forklift chanel
Discharge port with 1.5" butterfly valve TC connection
Carbonation stone 4" with ball check valve included
Top manway door with PRV and gas port (quick disconnect included 1/4" hose barb)
CIP set up with spray ball included Sample valve included
2.Dimple Jacketed tank
Design pressure 15 psi with dimple cooling jacket Capacity 10 HL (gross volume 8.5 bbl. or 264 gallon)
Material: 304 stainless steel, 2-B finished.
Cone bottom 150°, tank on stainless steel leg with forklift channel.
Discharge port with 1.5" TC butterfly valve. Glycol port.
Carbonation stone 4" with ball check valve included.
Top/side manway door with PRV and gas port (quick disconnect included 1/4" hose barb)
CIP set up with spray ball included.
Sample valve included.
Optional purchase of tank temperature controller and solenoid valve.
Tank of Single wall,double wall with solution can be available
Customized tank

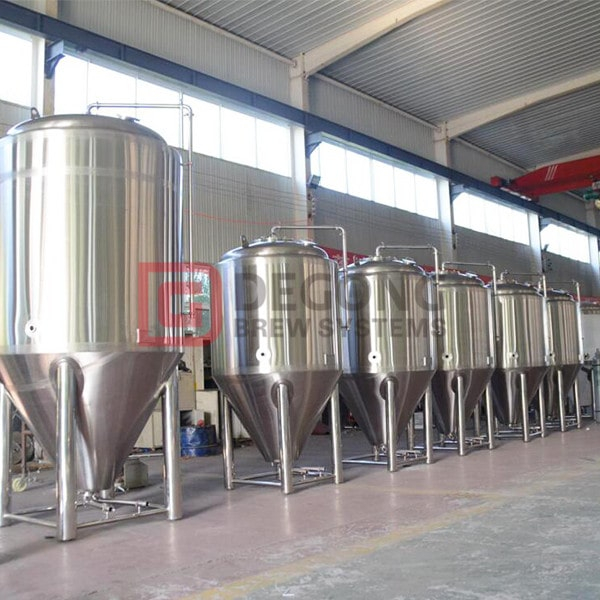

All of our vessels are pressure tested, 100% sanitary welded, jacketed and insulated. 5 and 10 BBL Brite Tanks are ready to ship from our factory.
Outer shell: SUS304, 1.5mm thickness, brushed finished
Inner container: SUS304, thickness 3mm, smooth ground welds - 2B finish
Glycol jacket: SUS304, thickness 2mm, dimple welded
Insulation material: polyurethane, 80-100 mm thickness
Head space: 20% over stated size
Pressure rating: 15 psi working pressure
Connections: PVRV, coolant inlet/outlet, Pt100 interface, sample valve, side man-door, carbonation stone, pressure gauge, analog temperature gauge, volume sight-glass, analog temperature gauge, rotating CIP ball and piping, center bottom product port.
| Contact information: |
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
