600L Combined 2 Or 3-Vessel Beer Brewhouse Stout Beer Making Plant for Sale

Ale (Top fermentation beer),its fermentation temperature is 16 to 24 ℃.The carbonic acid is low because of its high fermentation temperature.And Its taste is more abundant because adding much condiment.So you can feel its concordances.
Lager(Bottom fermentation beer),its fermentation temperature is 8-12 ℃.Its alcoholicity is low compared to ale,and its taste is softer.Because carbonic acid is higher than ale,so its taste is cool and refreshing.

Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-600L
  • DGET
  • 8438400000

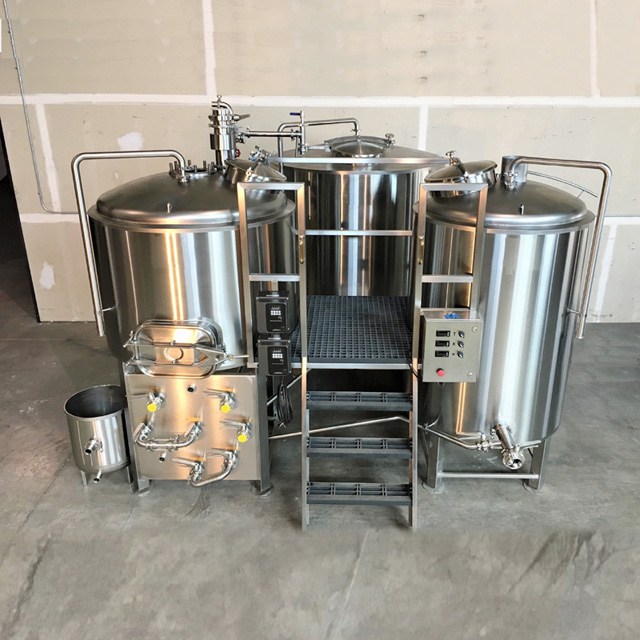

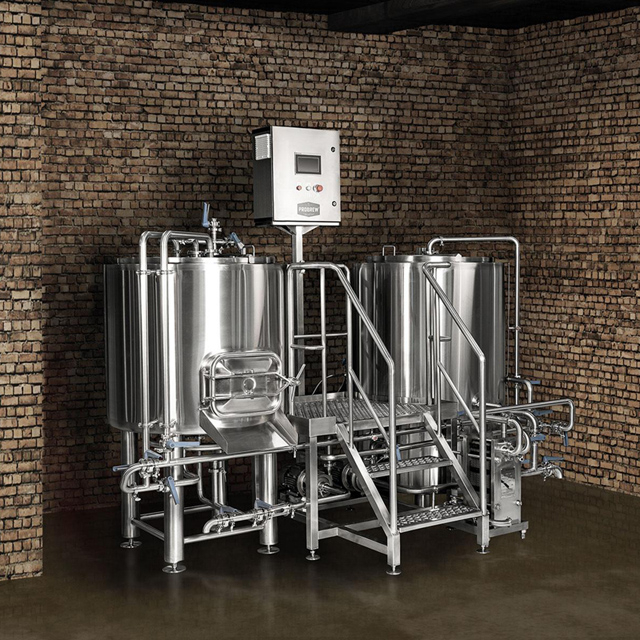

Beer brewhouse are comprised of several key pieces of brewing equipment. The whole brewhouse has four function,which is mash,lauter,boiling,whirlpool. In the skilled hand of the brewmaster, convert grain that has been milled through a specialtygrain mill, into sweet liquid called “wort”.Wort is subsequently fermented and finished in specialized beer tanks calledfermenters andbrite tanks.


Lauter tun

Function: lautering – separation of the solid part of mash (grains) from the liquid part (wort) during beer wort production process.

Modular 4 parts screen sieve separating the wort bath from lautering area.

Sieve flutes width- 1 mm.

Sieve loading - 120-160 kg/ m2

Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.



Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

-Auto spent grain out by reversing rakes
-Sparge arm; False bottom with 0.7mm gap;

-- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

-Spent grain manway;

-Wort sprinkling provided by sparging semicircle or spray balls.

- Bottom wort outlet.

- Middle side wort/grains outlet for decoction process (if needed) and water inlet for stuck lautering preventing.

- Top dome wort /water inlet.



Whirlpool tun

Function– wort whirpooling, wort mashing,wort boiling,water boiling and hot water storing.

Volume + ~30% headspace

Inner-shell (SUS304), thickness: 3.0mm;
External-shell (SUS304 OR COPPER), thickness: 2.0mm;

Jacket(SUS304),thickness:1.5mm;
Insulation thickness: 100mm;
Internal 2B finishing, welds polishing to 0.4um

Cylindric and bottom with steam jacket–Max 3 bar pressure ensures 1°C/min heating speed.





Assembly:

-Top domed thermostatic hermetic closed glass manway door.

-VFD agitator motor SIEMENS.

-Top domed lighted sight glass.

- PT100 temperautre sensor probe

- Sanitary centrifugal 2.2 kw mash pump SIEMENS with VDF Danfuss controller.

- Bottom mash inlet /outlet.

- Middle side wort/water inlet/outlet.

- Top dome wort /water inlet.

- Middle cone wort outlet.

- Quick installed Spray CIP balls.



Other equipment

Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp or DIN standard pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc
Cellars: Singe, double or multi-time brew size fermenters and BBT
Cellar Control: Automatic Temp. control with solenoid valves,
Portable CIP cart: with 1 electric immersion Heating caustic tank, automatic Temp. control and 1 pump, etc





未标题-11222


未标题-100

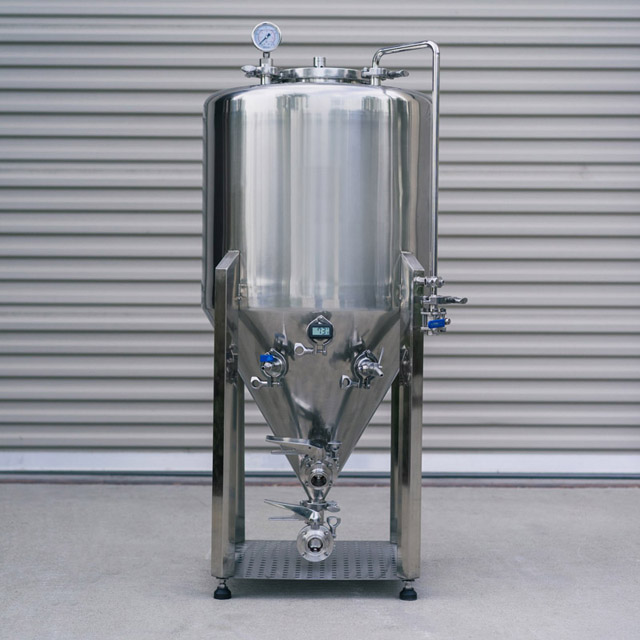

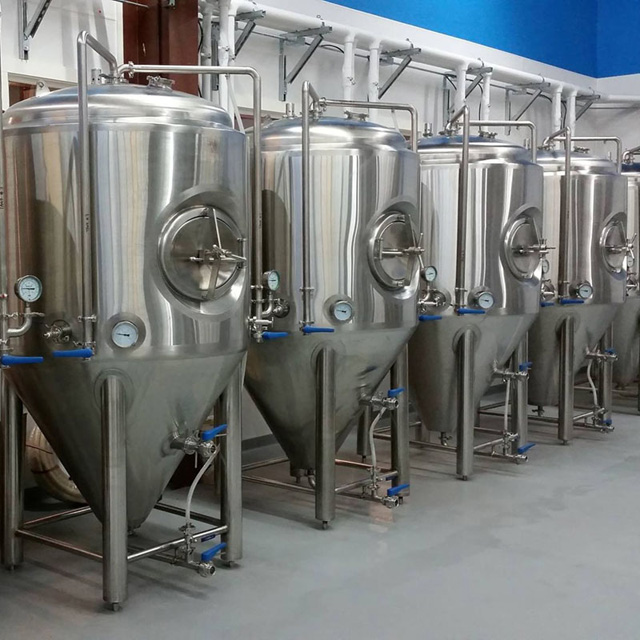

Fermentation tanks, or more commonly fermenters, are key components in beer brewing.Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.


Dimensions

We can provide normal dimension if customer dont have special requirement.If have,we will

Design suitable dimension according to customer’s requirement.

Capacity

Nominal capacity plus 25%

Top Head

Dished head

Lifting Lugs

2 lifting lugs

CIP

Removable CIP & fixed spray ball (180° up, 65mm) on 1½” TC with 1½” TC line down to

working height

Wall

Inner thickness 3mm;Outer thickness 2mm.

Bottom Cone

60° cone angle, ”1½ knuckle radius to cone

Cooling Jacket

On sidewall and bottom cone – number of zones determined by tank size

Maximum 0.3MPA working pressure, 1” to 1½” FNPT inlet / outlet

Legs

4pcs completely SUS304 heavy duty legs with leveling pad and legs support

Insulation

100mm polyurathane

Manway

Top manway or side manway

Drain

1½”  TC butterfly valve c/w “J” pipe

Tank Material

All quality inspected 304 stainless steel alloy

Exterior Finish

2B with all welds ribbon polished

Interior Finish

2B with all welds TIG welded with heat stain removed

Tank Pressure

Maximum 0.3Mpa

All accessories on tank

•Full sanitary sampling valve

•1½” TC Vacuum Pressure relief valve on top head

•Mechanical relief valve 2 bar on CIP arm

•Shockproof pressure gauge on CIP arm

•Dry hopping port with solid end cap

•Thermowell for high accuracy temperature sensor

•1½” Raking arm

•carbonation stone

•1½” TC RSL Sample valve

brewery-fermenters22


未标661


未标题-1




1.We will delivery in time after receiving the deposit.

2.If the quantity of your equipment is rarely enough to use a full container, we will use a wooden box to package the equipment for shipment to avoid damaging  during the shipment transport. If you the equipment quantity is large, we will try to design the most reasonable loading method to save your space, so reduce the number of container and save shipping costs.


1222


未标题-1ff




Advantage:

1.Different specifications meet different need of customers,for example,several types of heating devices for your choice: dimple jacket / inner pipe heating machine(optional)

2.Advanced technology can saving energy and running cost,for example,our control panel is PLC.

3.High performance and stability with low maintenance cost

4.Custom built, meet your needs exactly,that is to say,you just need to tell us your brewery's real condition,then our team will design suitable tanks suitable to your brewery.


Our Service:

1.As owning an experienced and creative engineering team, we could offer you professional solutions for your plant and equipment.

2.If you already have solutions, we would fabricate the equipment exactly as per your request.

3.We could offer you training of brewing craft beer and operating equipment if needed.

4.Equipment can be customized according to your request.

5.36 months warranty.

6. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

If you have interest,please get in touch with me freely.
