500L Chinese Craft Beer Equipment Top of The Line Brewing Equipment Beer Stainless Steel Fermenter for Sale

We give play to our advantages in formula and process design, internal structure and layout design of equipment, automatic control design of system, and configure the control system and cip system to make the whole process more complete.With decades of experience in selecting and using world advanced beer production equipment, we conduct in-depth research and guidance on the design and production process of craft beer equipment to ensure that the equipment can produce products that meet the design requirements.

Thickness of material (mm):
Insulation:
Fermentation tank coolinig:
Manhole:
Quantity:
  • DGET-500L
  • DGET
  • 8438400000


Production Description


pub-min


Main system Name Sepcifications


Mill system

Mill machine 100-150kg/h
The roller beer malt crusher machine with full support crushing, through the extrusion, cutting, stretching and other materials to break the material

Heating system

steam heating/electric heating/direct fire heating

Can choose according to the customers request.



Brewhouse system

Mash/lauter tun 500L
Boiling/whirlpool tun 500L
Hot water tank 1000L
hot water pump, filter pump, whirlpool pump, wort pump, mixer,material &water mixer, wort tester, hop adding device,hop filter device, saccharimeter,worst rake,spent grain recovery


Fermentation system

fermentation tank 4*500L(depend on customer request)
Bright beer tank 4*500L(depend on customer request)
sample valve, breather valve, cabonation stone, mechanical regulator valve, raking arm


Cooling system

Glycol water tank 1500L
Chiller 5HP
All need pumps,pipes,and parts
Cleaning system Complete CIP tank(acid tank,distillition tank)50L
Control system

Auto control the fermenter temp,pressure

mill control, mashing control,fermenter control,cooling control,clean control

Filling system Manual/semi bottle filling and washing machine

Semi keg filling and washing machine


Brewhouse system more information


  • Material:SUS316L or SUS304

  • Interior Shell: 2B/mirror plate; TH=3mm

  • Exterior Shell:2B/mirror/brushed plate; TH=2mm

  • Heating method:steam;electric or direct fire

  • Dimple jacket for heat exchanger,polyurethane insulation,TH=80-100mm

  • stirring methods:upper stirring or bottom stirring

  • Lauter plate:milling

  • Grain removal:side discharging or bottom discharging

  • Tank equips with manhole, light sight glass, washing tube, temperature sensor achieve temperature control, 360 degree sanitory washing ball,material inlet and outlet etc;

  • Plate heat exchanger: Cooling form,capacity and piping meet requirements

  • Oxygenation system:oxygenation form, capacity and interface form meet requirement

  • Working platform:stainless steel

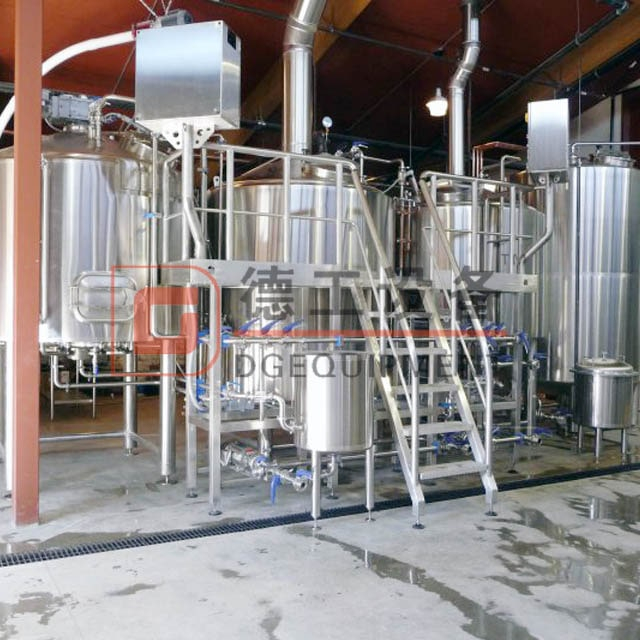

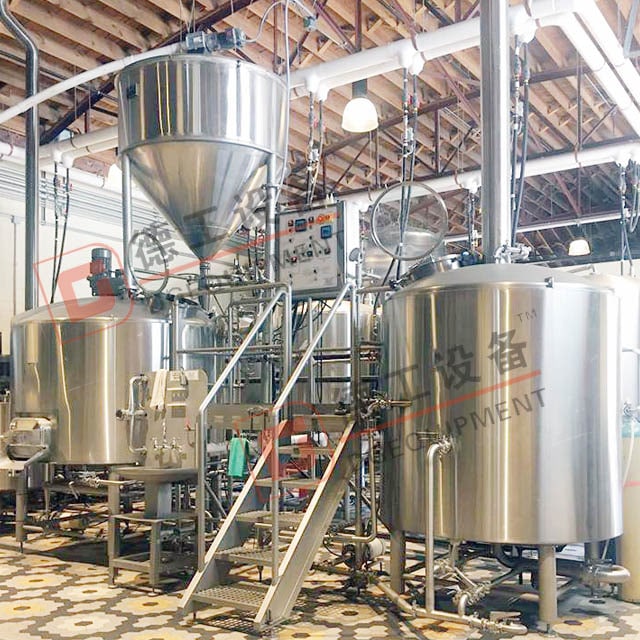

BREWHOUSE1

3-vessel brewhouse system


750 BW 细节-min

brewhouse system details


Fermentation system more information
  • Interior Shell: SUS304 full welded; TH=3mm

  • Exterior Shell:SUS304 full welded; TH=2mm

  • 100% TIG welding with pure argon gas shield

  • Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner

  • Insulation: Polyurethane; TH=80mm

  • Glycol Jacket: Dimpled plate on cone and side

  • Stringent tank leakage test by water and pressured gas

  • Stringent Jacket leakage test by water and pressured gas

  • Dished head and 60 degree cone bottom

  • Sanitary top mounted manway

  • CIP arm with 360° coverage CIP spraying ball

  • Full sanitary sampling valve

  • Mechanical relief valve 2 bar on CIP arm

  • Shockproof pressure gauge on CIP arm

  • Rotating racking arm and port on cone with butterfly valve

  • Tri clamp discharge arm with butterfly valve

  • Thermowell for high accuracy temperature sensor

  • 4pcs completely SUS304 heavy duty legs with leveling pad and legs support

  • Complete valves, fittings and all parts

  • Level tube for special request

  • Carbonation port and stone for special request


750FV

500L fermentation tanks


750FV 细节-min

fermentation tank details


If you are interested in DEGONG brewery equipment, get in touch with me freely.
