| Material: | |
|---|---|
| Manhole: | |
| Heating method: | |
| Insulation: | |
| Quantity: | |
DGET-600L
DGET
8438400000
we support installation and debugging, technical guidance on site
engineer will teach how to brewing and running the production line, test the beer’s quaity
design drawing for free
competitive and low price of raw material
high quality of the beer equipment
competitive price
highly automatic or manual operation
material: SS304 or red copper
1. Brewhouse: two vessels, three vessels, four vessels brewhouse
2. Heating medium: steam heating
3. Insulation material: polyurethane. Insulation thickness: 100mm
4. Mash tank; hydrator, mixer, steam heating jacket
5. Lauter tun: rake, agitator, false bottom, hydrator
6. Brewkettle, steam heating jacket, inner steam heating deivce
7. Whirlpool tun: whirlpool entry
600L beer brewery equipment
Grain mill machine
Feature: high Efficiency, low noice, easy to operate, with high efficient, energy saving.
stainless steel mill machine
There are several steps in the brewing process, which may include malting, mashing, lautering, boiling and whirlpool.
Normally, for 600L mash system, we recommend the available combinations, as follows:
Option1:mash /lauter tun + boiling/whirlpool tun(this is the most popular)
Option2:mash/boiling tun &lauter tun +whirlpool tun
Heating method:
You can choose steam/electric/direct fire heating.
Mash system parameter:
Interior Shell: SUS304/316 full welded; TH=3.0m
Exterior Shell:SUS304/316 full welded; TH=2.0m
100mm polyurethane for insulation
Acid washing and passivating the Interior finish to 0.4um
Speed adjustable grain rake (scraper blade for optional)
False Bottom/Filter
Steam condenser with spray nozzles
Completely stainless steel work platform
Two stages or single stage plate heat exchanger
Wort pump & hot water pump
Stainless steel 304/316 operation platform
2-vessel brewhouse system

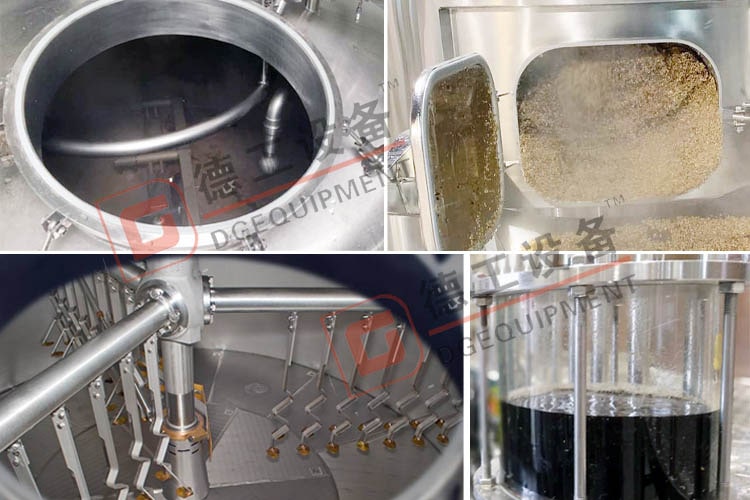

1-the mash system is working 2-side manhole 3-raker 4-sight glass
Fermentation is important in beer brewing. It plays an important role in the taste of beer. The number of fermenters is determined by production, but sometimes it depends on the style of the brewmaster.
600L fermentation tank
Fermentater parameter
Insulation thickness: 100mm;
Inner tank thickness: 3.0mm; outer thickness:2.0mm
Racking Arm and discharge port with butterfly valve and fittings
dimple plate cooling jacket.
CIP arm and rotary spray ball
Release and breath valves
sample valve, mechanical pressure regulation valve
Pressure gauge & Thermometer & Sample valve
Dimple plate cooling jacket with glycol inlet and outlet
Four legs with brace and adjustable bolt
Interior of tank is mechanical polished, inner body polishing ratio 0.4μm. Out plate surface protection welding line Belt Sander Polished,welding: 100% Argon Arc welding
beer fermenter accessories
