DGET-1000L
DGET
8438400000

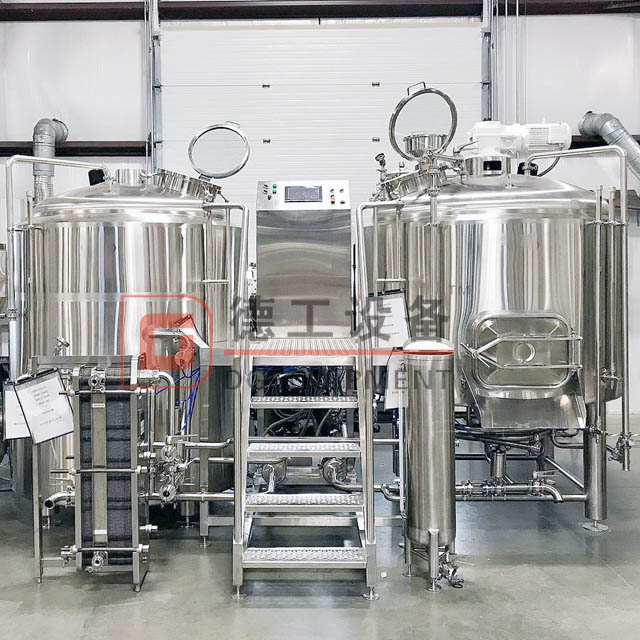

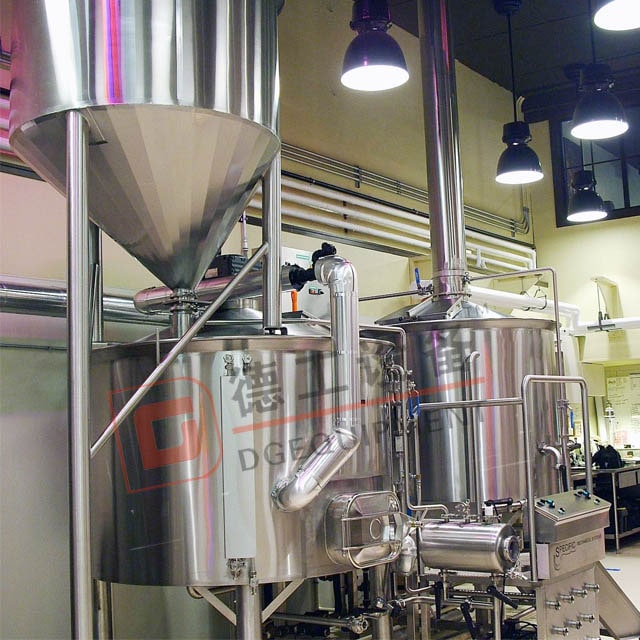

DEGONG 1000L beer brewery equipment overview
2-vessel:mash/lauter tun+boiling/whirlpool tun
3-vessel:mash tun+lauter tun+boiling/whirlpool tun
mash/lauter tun+boiling tun+whirlpool tun
4-vessel:mash tun+lauter tun+boiling tun+whirlpool tun
Hot water tank is optional
Heating method:steam heating,electric heating and direct fire heating
Plate heat exchanger: Double or single stage plate heat exchanger.
Pump(wort pump and hot water pump): horizontal or vertical
2-vessel 3D brewhouse
3-vessel 3D brewhouse system

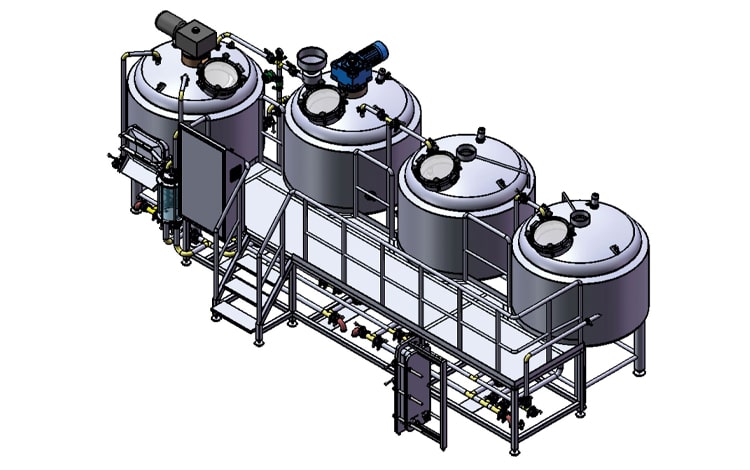

4-vessel 3D brewhouse system
Combination:fermentation vessel, bright beer tank, pipeline
DEGONG fermenting system technology and design advantages:
The inner tank thickness is usually 3.0mm, the outer casing 2.0mm, polyurethane insulation layer, thickness 80 or 100mm;
The outside of the inner tank is designed with cooling jacket. The cooling area is determined according to the size of the fermenter. Generally, the cylinder and the cone are belted. The cylinder part can be divided into two sections or even multiple sections according to the size of the fermenter;
Fermentation tank with a titanium rod can be used as fermenter and bright beer tank;
The size of the fermenter can be customized according to the customer's site;
The outer tank is usually made of stainless steel wire drawing board, can also be made of fish scale board, or mirror polished;
Supported valves: breathing valve, hop add port, escalator mounting ear, cleaning ball, mechanical pressure regulating valve, sampling valve, stainless steel pressure gauge, wine valve, drain valve, thermometer, etc.
Under the premise of meeting the technical requirements, we can customize the most cost-effective brewing equipment for customers.

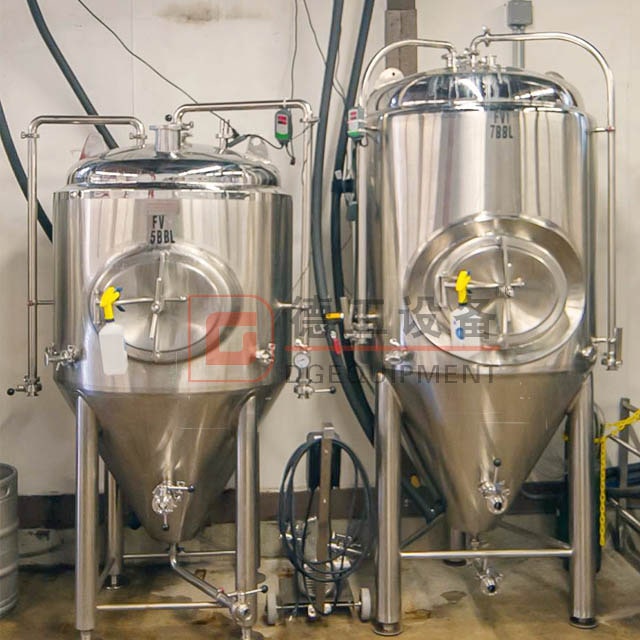

conical stainless steel fermentation tank
fermentation tank accessories

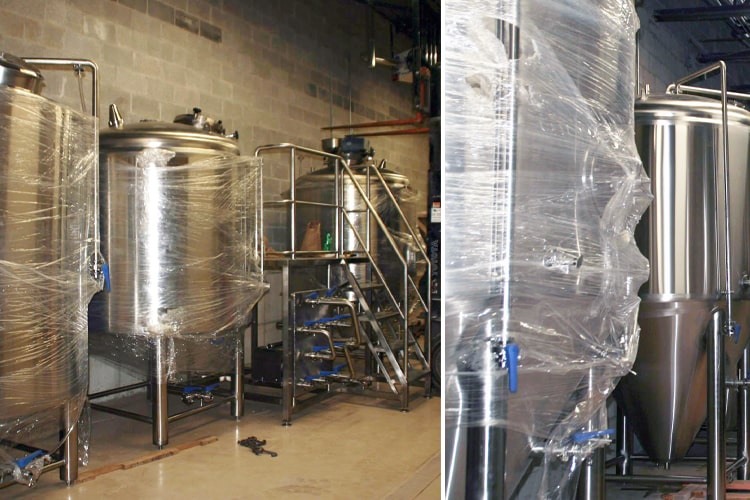

1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all equipments will be well fixed to the containers.
4.Transportation mode: ocean, railway or air transportation.
1. Free charge for consultation service before, during, and after sales.
2. Our professional engineers and technicians can customize the equipment, and we can provide beer production technology and brewing formula, equipment design, installation and debugging, and personnel training service;
