DGET-500L
DGET
8438400000

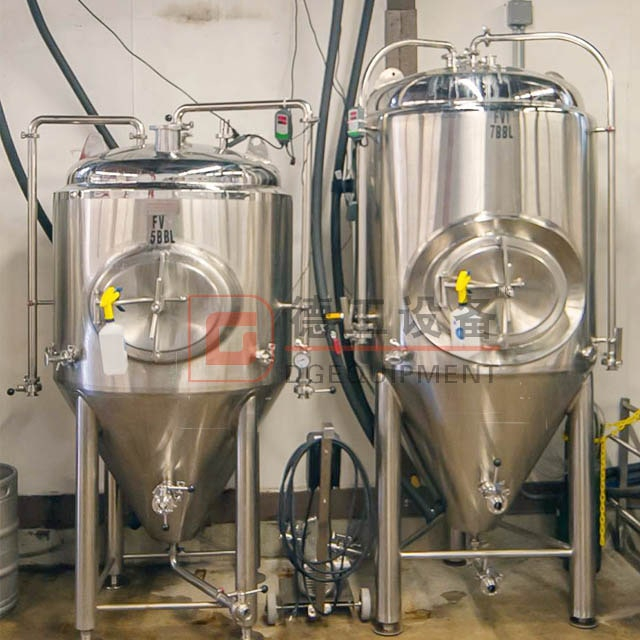

DEGONG stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure relief valve, CIP cleaning ball, sanitary sample valve, manhole,etc. The design of DEGONG fermenter is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.
1-There is a dimple jacket to cool down. The inside of the jacket is filled with alcohol water. It can be used with temperature sensing and solenoid valve to maintain the temperature inside the tank.
2-With a breathing valve and a mechanical pressure regulating valve, the pressure of the tank can be maintained at a set value, and the safety hazard caused by thermal expansion and contraction during cleaning can be eliminated.
3-Top manhole,with lower cost ,simple processing,Easy cleaning and more sanitary.
Side manhole ,price little higher than top manhole,observe the beer in fermenter, when the height of the room is limited, we will choose side manhole
4-60 to 90 degrees bottom cone can adjustable.its according to the container height for shipping , save much shipping cost for client
beer fermenter conical bottom
Tank Capacity: 500L (+25% Headspace minimum)
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
Insulation: Polyurethane; TH=80mm
Glycol Jacket: Dimpled plate on cone and side
Stringent tank leakage test by water and pressured gas
Stringent Jacket leakage test by water and pressured gas
Dished head and 60 degree cone bottom
Sanitary top mounted manway
CIP arm with 360° coverage CIP spraying ball
Full sanitary sampling valve
Mechanical relief valve 2 bar on CIP arm
Shockproof pressure gauge on CIP arm
Rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Thermowell for high accuracy temperature sensor
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Complete valves, fittings and all parts
Level tube for special request
Carbonation port and stone for special request

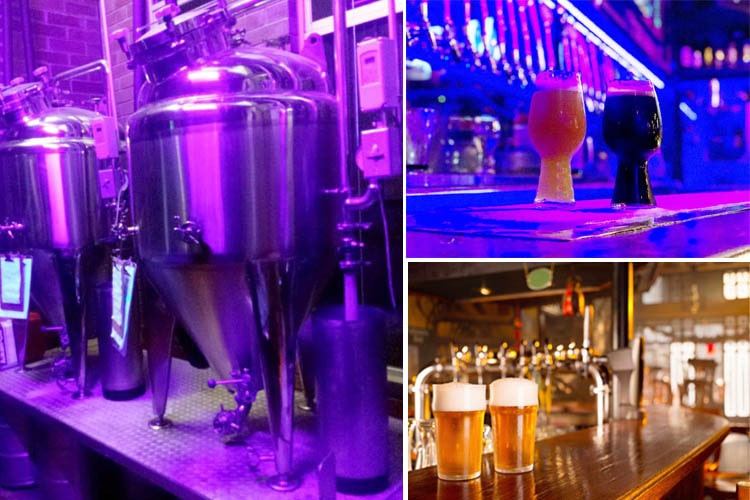

the beer fermenter is suitable for bar
1. Equip with international brand Chiller, cooling better and faster, high working efficiency, beautiful and durable.
2. Electrical Components brand is Schneider.
3.Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
4.Efficiency chillers or refrigerators with fryonto supply cooling energy
5.Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
1. PID semi-auto controller, PLC auto controller, brand is Siemens, Schneider for optional.
2. Electric components have many Certificate
3. Control all the tank's temperature, motor and pump's show on/off.
control cabinet
Standard packing:
1.Cord ,film membrane
2.Firm membrane, wood box for free fumigation
We tied it up with code and tied it up with a film membrane
We will choose Wooden case to protect the equipment from being damaged in transit.If the equipment's height exceed the container's height,we will put down the equipment and fix it by iron frame.
If you are interested in beer brewery equipment, get in touch with me freely.
