DGET-500L 1000L
DGET
8438400000
Distilled liquor is a high-alcohol liquor extracted from fermented brewing materials through one or more distillation processes. The raw materials of distilled spirits are generally rich in natural sugars or starches that are easily converted into sugars,such as honey, sugar cane, sugar beet, fruit and corn, sorghum, rice, wheat potato, etc. Sugar and starch are fermented by yeast to produce alcohol, and then use a special distiller to heat the liquor. Using the different boiling point of alcohol (78.5°C) and the boiling point of water (100°C) , the original fermentation broth is heated to between the boiling points of the two , then you can steam out and collect alcohol and aroma substances from it. However, during the heating process, the moisture and other substances of the raw materials will also be mixed in the alcohol, thus forming liquors of different quality. Most of the famous wines use multiple distillation methods to obtain liquor with high purity and low impurity content.

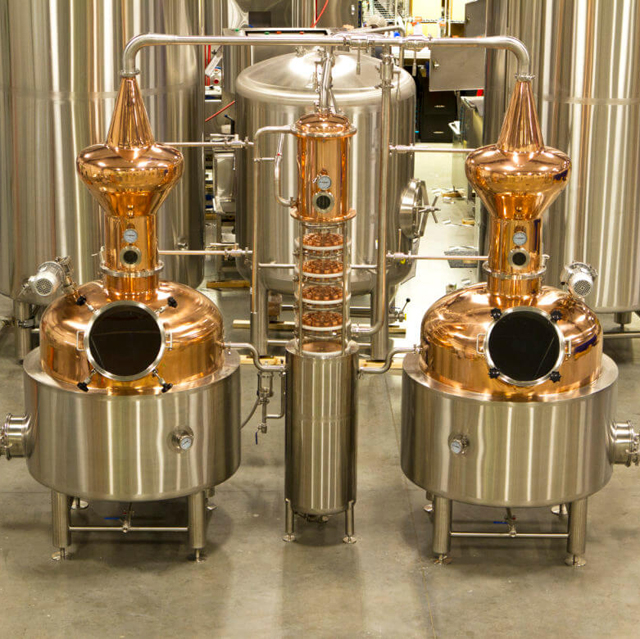

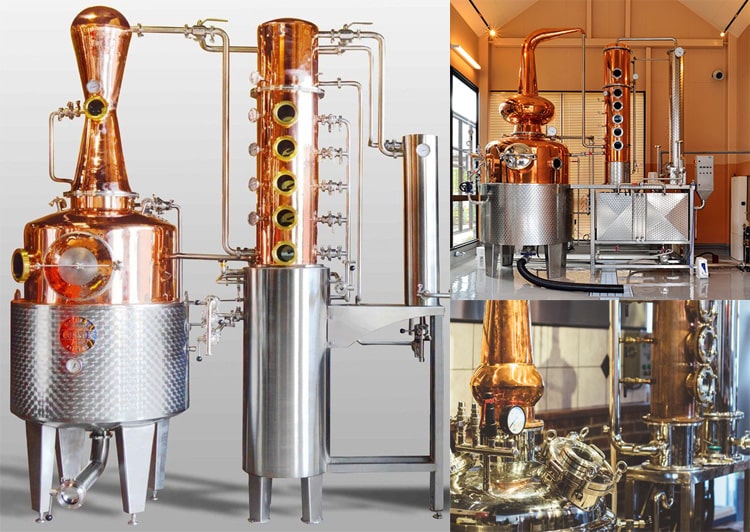

Distiller pot: Inner full copper pot, outer steam jacket with warm insulation layer, outer layer with fish scale polish, full glass manhole to see, top with agitator stirring.

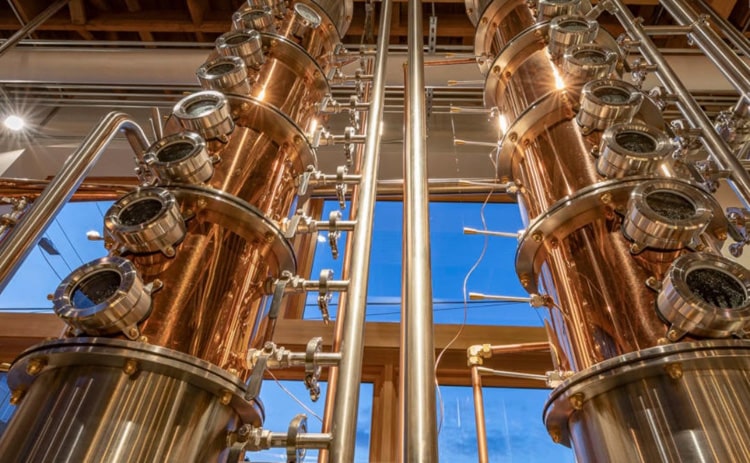

Column plates: full CU122 copper bubble plates, side with pass valve to operate, CIP ball insert to each plate to clean, back with cip pipe and valve to operate.
Bottom collect tanks: water tank to collect condenser water to cycle used with CIP clean, alcohol tanks direct to collect from parrot, bottom connect one water pump.
Bubble caps :It consist of bubble cap,down comers,bubble plate,red copper screw and bubble tee(we have stainless steel 304 and red copper option)
Control Panel:Material of control box is stainless steel 304 or plastic option;
Suitable Voltage:208/220/240V single phase 60Hz,Which can adjust the heating temperature by module.
Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.
Structure | Useage |
50~500L still pot+4~10 plate red copper/ | Economy for lower budget.Application to small sized plant.Alcohol content 80%±10%, |
still pot+goose neck+4plate distillation | Suitable for low alcohol concentration to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum etc. |
still pot+goose neck+gin basket+4plate | Suitable for low alcohol concentration and available for fruitful flavor with spices to get high quality taste spirit.Alcohol content 80%±10%,such as whiskey,brandy,rum +spices. |
still pot+goose neck+gin basket+4plate | Alcohol content 80%±15%,such as |
still pot+goose neck+4plate distillation | Suitable for both low and high alcohol |
still pot+4plate distillation column+ | Economy for lower budget.Application to small |
still pot+goose neck+condenser+parrot | General taste and low alcohol concentration |
If you have interest,welcome to contact me freely
